Installation and operating instructions 18 BATCHFLUX
4.2 Operating and check
elements

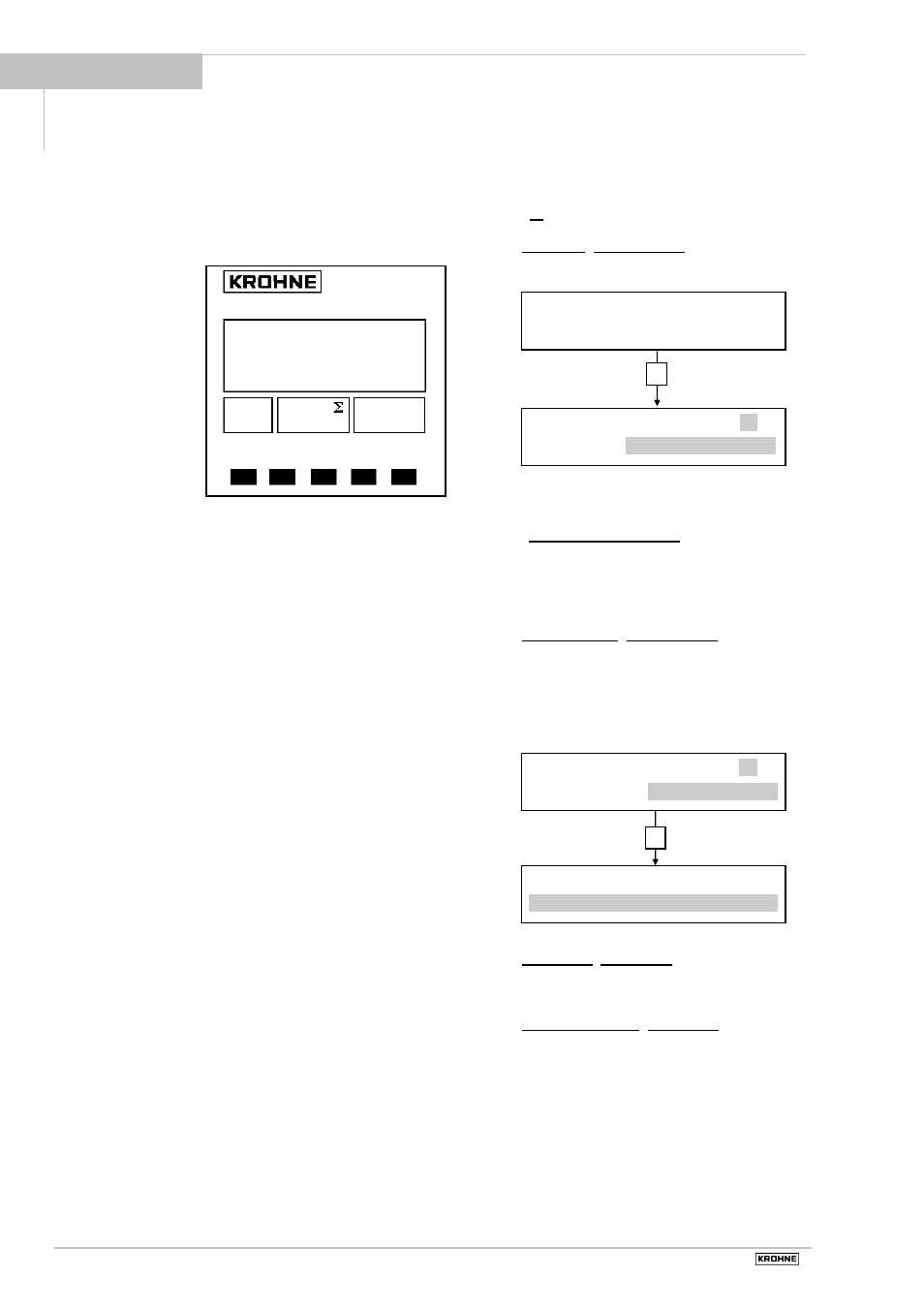

The following operating elements are featured
on the hand-held communicator HHT 010:
HHT 010
+ –
Totalizer
I P
Overrange
Flow-
rate
Œ
1 9 0 . 4 7
→

 m 3 / h r
M Ž M M M M M
← → ↵ ↑ ↓

ΠDisplay, 1st line
 Display, 2nd line
Ž Display, 3rd line: arrows to
identify
display
Flowrate current flowrate
Totalizer + totalizer
– totalizer
∑ sum totalizer (+ and –)
Overrange I overranging, current output
I
P overranging, pulse output P
 Keys for operator control of signal
converter
 Compass field, signals actuation of a key
4.3 Function of the keys
The cursor, flashing part of display, has a
grey background in the following descriptions.
To start operator control
Measuring mode
Operator
control mode
PLEASE NOTE: when “YES“ is set
under Fct. 3.4 ENTRY CODE,
“CodE 1 - - - - - - - - - “ appears in the
display after pressing key
→ .
Now enter the 9-keystroke Entry Code 1:
→ → → ↵ ↵ ↵ ↑ ↑ ↑
(each keystroke acknowledged by “ * “).
To terminate operator control
Press key
↵ repeatedly until one of the
following menus Fct. 1.0 OPERATION, Fct.
2.0 TEST
or Fct. 3.0 INSTALL. is displayed.
Press key
↵
Store new parameters:
Confirm by pressing key
↵ . Measuring mode
continued with the new parameters.
Do not store new parameters:
Press key
↑
to display “STORE.NO“.
Measuring mode continued with the “old“
parameters after pressing key
↵ .
S T O R E Y E S
F c t . 3. 0
I N S T A L L .
↵
1 3 . 5 7 1
m 3 / h r
→
F c t . 1. 0
O P E R A T I O N
