4.4.3 Multi-drop networks

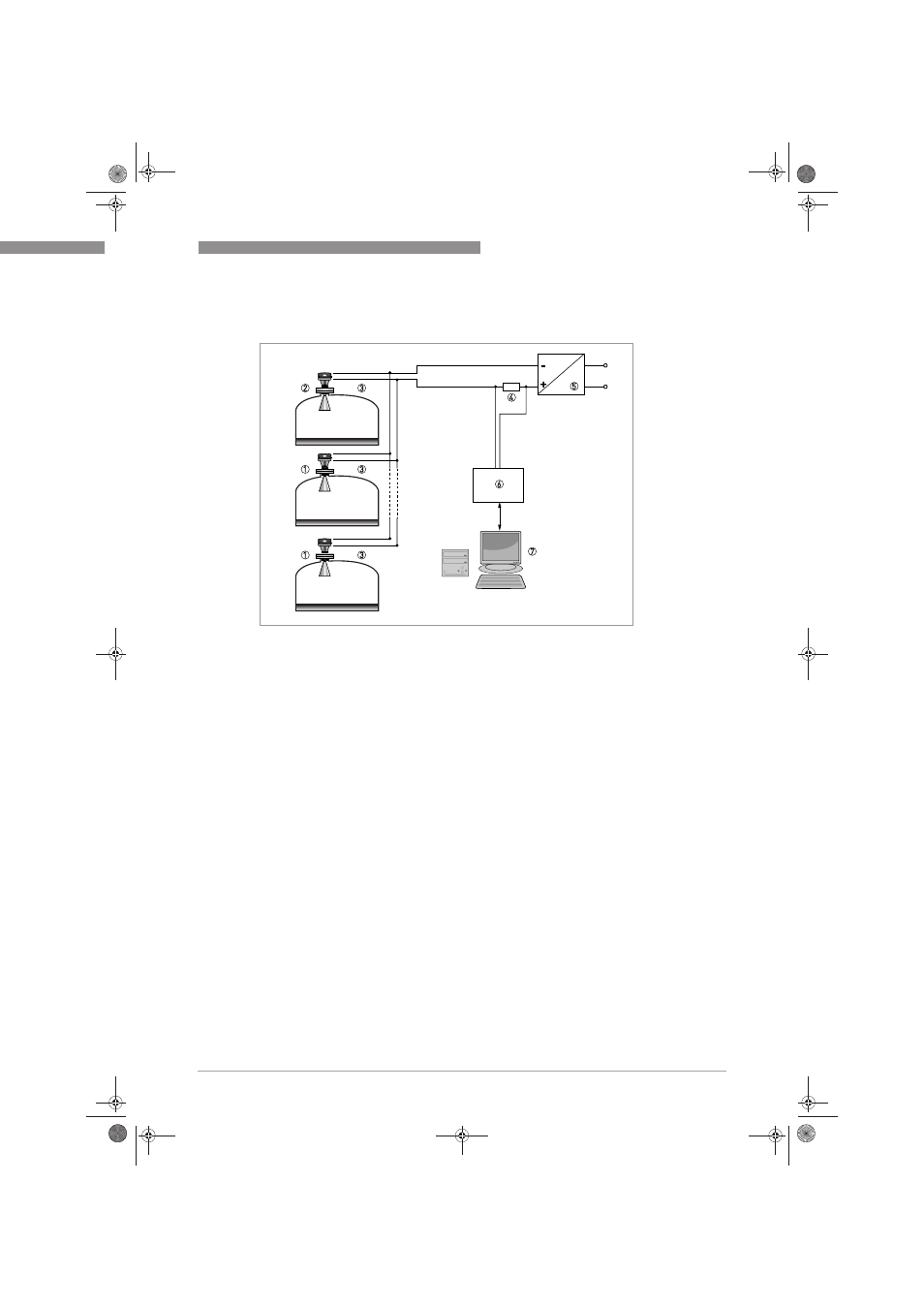

Figure 4-7: Multi-drop network (non-Ex)
1 Address of the device (n+1 for multidrop networks)
2 Address of the device (1 for multidrop networks)
3 4 mA + HART
®
4 Resistor for HART ® communication
5 Power supply
6 HART
® converter
7 HART ® communication software
