Horizontal cylindrical tanks
If the device:
• is for a horizontal cylindrical tank,
• is in a metallic tank,
• measures a product with a high dielectric constant and
• is on the centerline of the tank,
we recommend that you install it in a stilling well.

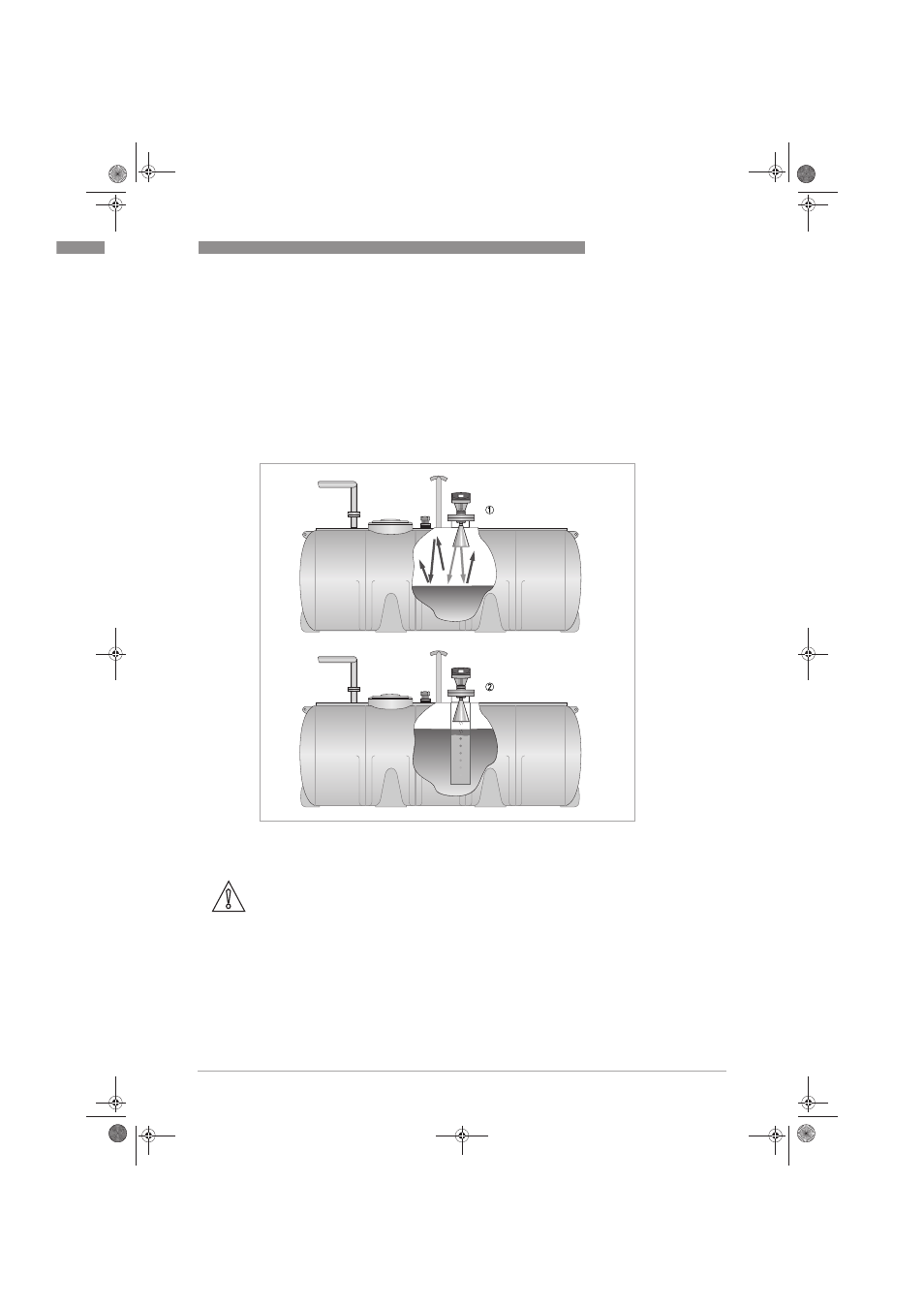

Figure 3-8: Horizontal cylindrical tanks
1 The device is installed without a stilling well. There are multiple reflections. Refer to the CAUTION! that follows.
2 The device is installed in a stilling well and measures correctly.
CAUTION!
If the device is installed in horizontal cylindrical tank that contains a high dielectric constant
liquid without a stilling well, do not put it on the tank centerline. This will cause multiple
reflections and the device will not measure accurately. Use the multiple reflections
multiple reflections multiple reflections multiple reflections function in
menu 3.0 Installation > 3.5 Application > 3.5.5 Multip.Refl. menu 3.0 Installation > 3.5 Application > 3.5.5 Multip.Refl. menu 3.0 Installation > 3.5 Application > 3.5.5 Multip.Refl. menu 3.0 Installation > 3.5 Application > 3.5.5 Multip.Refl. to keep the effect of multiple
reflections to a minimum. For more data, refer to "Function description" in the handbook.
