3.6.2 Threaded thermometer
A threaded thermometer can be installed two different ways:
• Screwed in directly: Pipes with a wall thickness ≥ 20 mm / 0.79" make it possible to drill a
hole and cut a thread.
• Screw into threaded sleeves: Pipes with a wall thickness < 20 mm / 0.79" require a sleeve to
be welded in; these are not included in delivery but make up part of the accessories range.
The following drawing shows a threaded jacket suitable for process connections with G½"
threads:

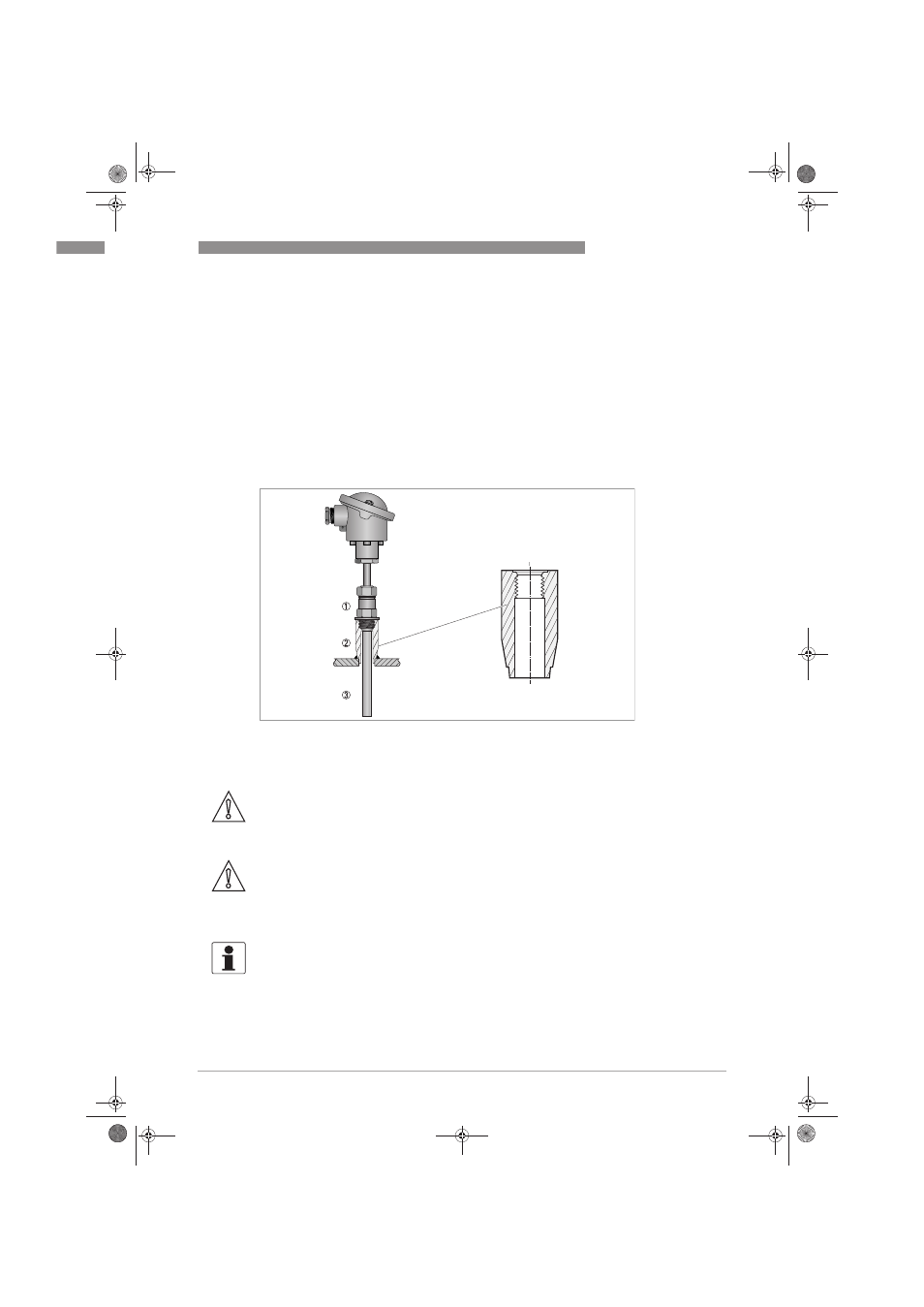

Figure 3-7: Welded sleeve for threaded thermometer
1 Neck tube with connection head
2 Permanently welded on threaded sleeve
3 Thermowell
CAUTION!
You, the user, are responsible for selecting a suitable sealing material for the process
connection, not the manufacturer! When installing the seals to the process connection, always
ensure a good fit!
CAUTION!
Sometimes even a neck tube cannot prevent the maximum permissible temperature in the
connection head from being exceeded! It does cause extensive thermal decoupling of the
connection head but you still have to always take into consideration the installation situation as
well as the ambient and process temperatures!
INFORMATION!
For more information on the dimensions of the threaded sleeve please see the
subsection "Dimensions" in the section "Technical Data". Note that the threaded sleeve is not
included in the scope of standard delivery but is an optional accessory.
