START-UP

OPTISONIC 6300

www.krohne.com

07/2009 - 7.30959.24.00 - QS OPTISONIC 6300 R04 en

Electrical connections

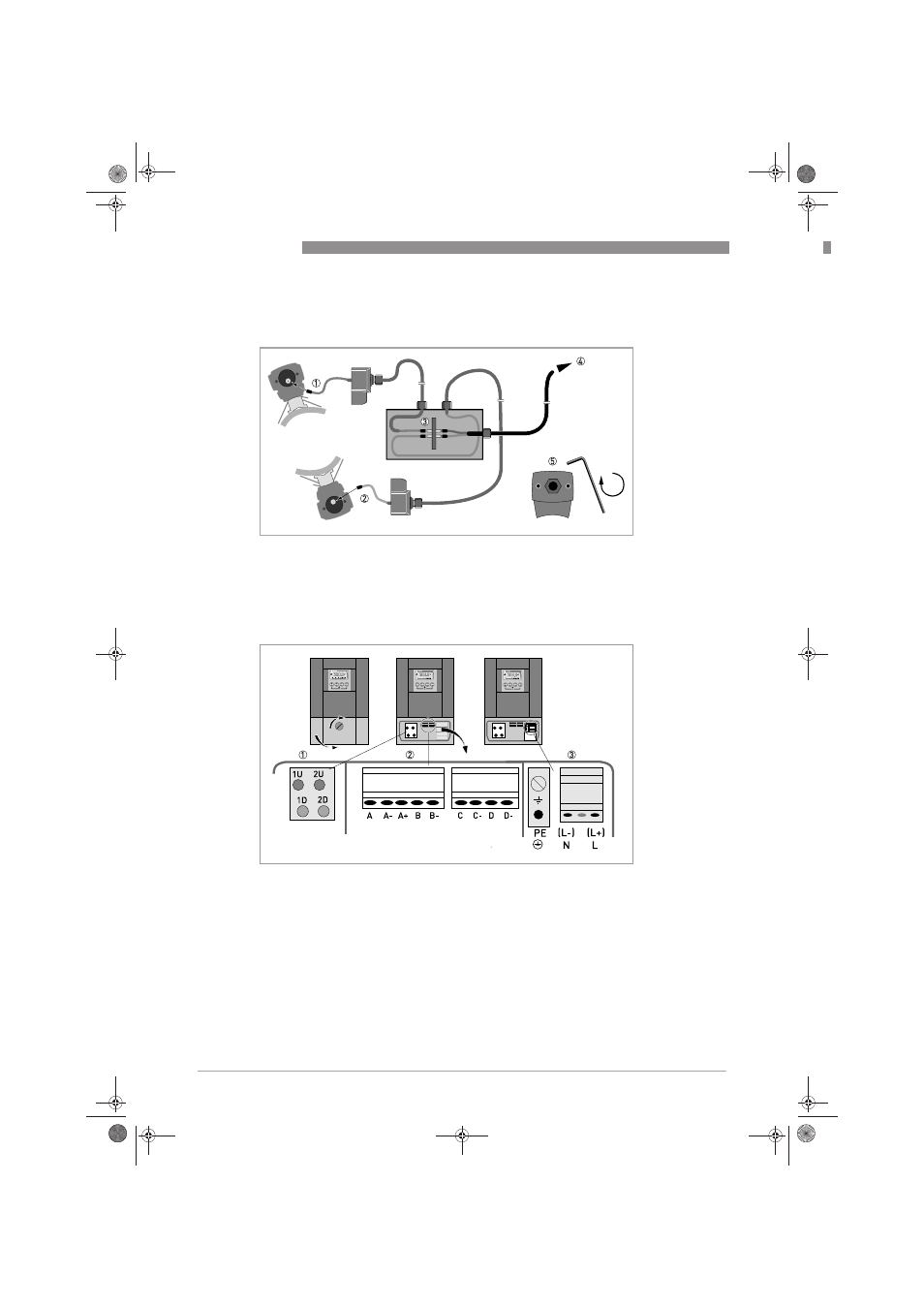

Figure 3-11: Connections in cable box (large version)

1 Connect the blue cable to the UP rail.
2 Connect the green cable to the DOWN rail.
3 Make connections in cable box.
4 Cable to converter
5 Turn the screws clockwise to secure the caps.

Figure 3-12: Construction of wall version

1 Connect blue cable to 1U (to 2U for 2

sensor) and the green cable to 1D (2D for 2

sensor)

2 Communication I/O
3 Power supply: 24 VAC/DC or 100...240 VAC
