2.5 SDI-12 Configuration File
The SDI-12 configuration file can be edited using the Comm Kit Software and the
Communication Device.

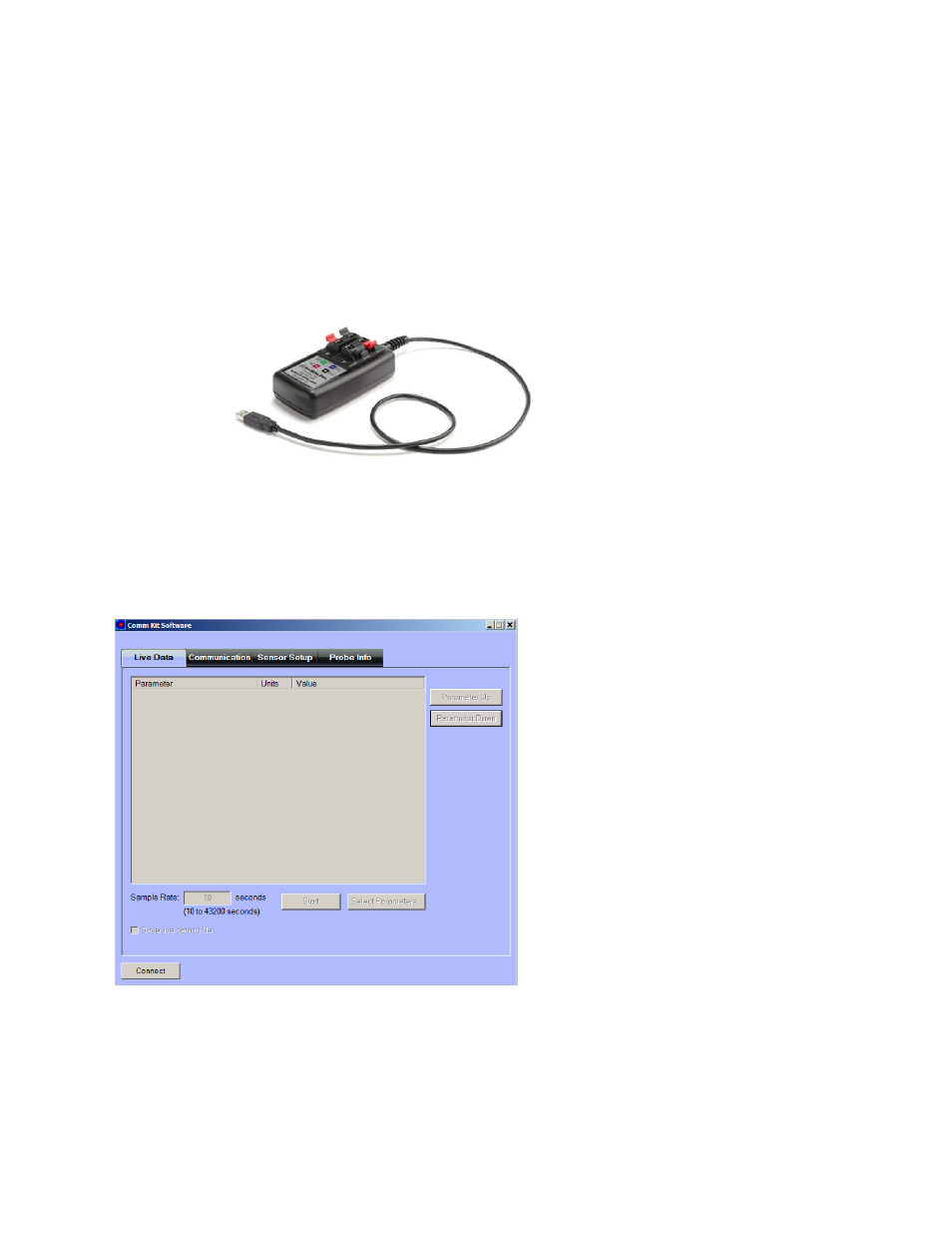

2.5.1 Connect the Communication Device and Comm Kit Software
The Communication Device connects a stripped-and-tinned cable and instrument to a computer
via USB connection and enables a connection with the Comm Kit Software.
1. The communication device includes an electrical connection diagram label. To
attach the sensor to the communication device, depress a lever and insert the
appropriate wire in the location specified by the diagram on the label.
2. Attach the USB connection to a computer.
3. Open the Comm Kit Software and click the Connect button.
25
