ETERMINE IF

NIT NEEDS A

LINTH

Triton Systems offers two (2) metal-constructed optional “plinths” w/leveling

feet. A plinth is a platform on which the ATM rests or is secured and enables the

ATM to be installed at the required height through the wall.

The plinths come in

2 heights: 2-3/8” (61mm) and 4-3/4” (122 mm). You can raise the unit by a fixed

amount (2-3/8"or 4-3/4") and still be able to adjust up using the

plinths leveling

feet. To determine if you need to order a plinth with your unit, a few measure-

ments will be needed at the site.
For sites that currently have a wall opening:
1. Measure from the bottom of opening to inside floor (Figure 1).

2. Cabinet dimensions are 26-1/2" from bottom of sleeve to base of cabinet

(Figure 2).

3. Subtract the difference to determine if a plinth is needed or what size plinth

to order or build. If difference is less than 2-3/8" (for example), you may

construct your own to fit. (Caution: The leveling feet on the cabinet itself

should not be used to raise the unit more than 3/4").

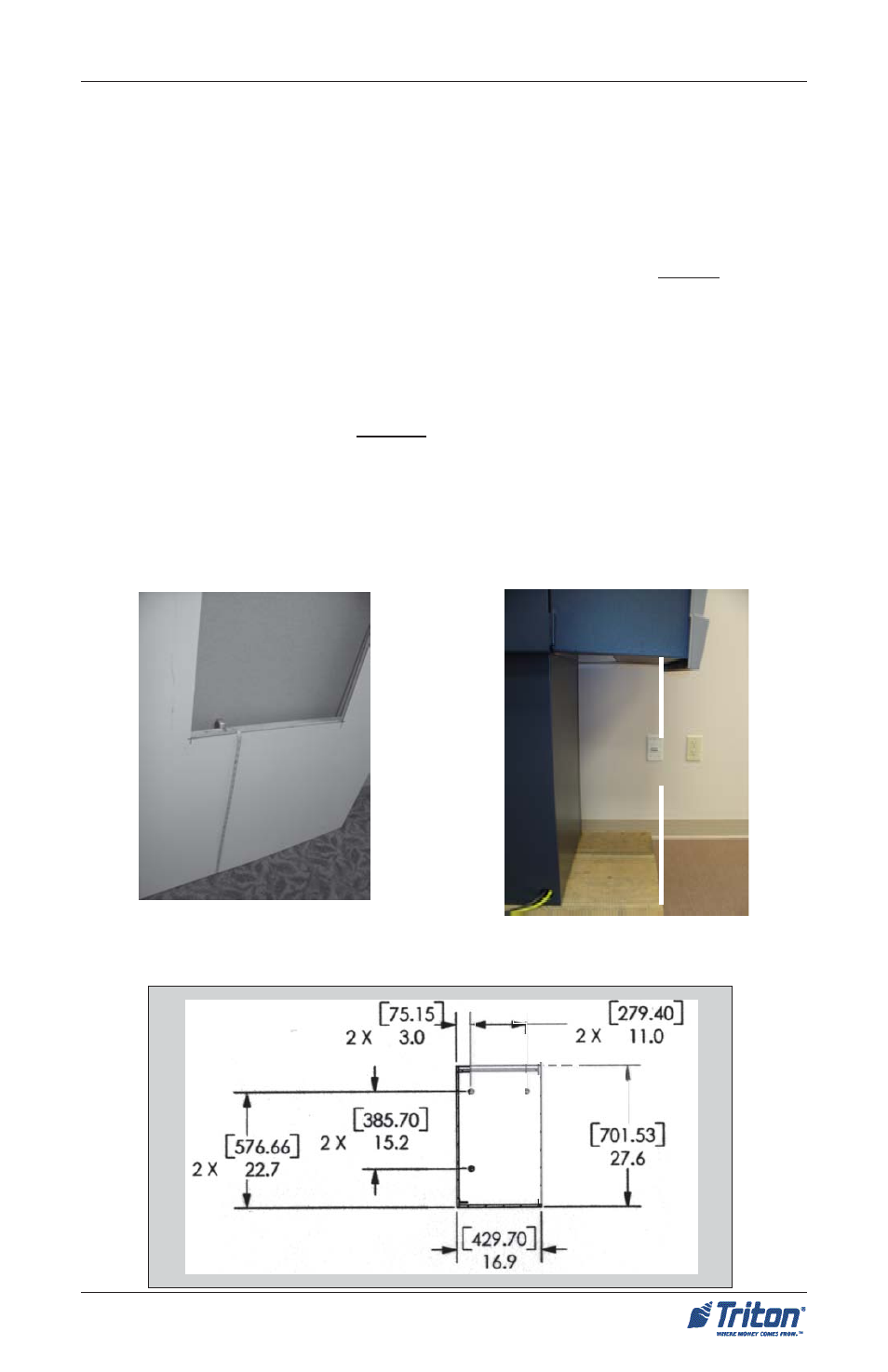

Figure 1. Determine height of

opening to inside floor.

Figure 2. Height of cabinet base to

bottom of sleeve (26-1/2").

ITE

REPARATION

NSTALLATION

Cabinet

“footprint”

26- 1/2"
