13

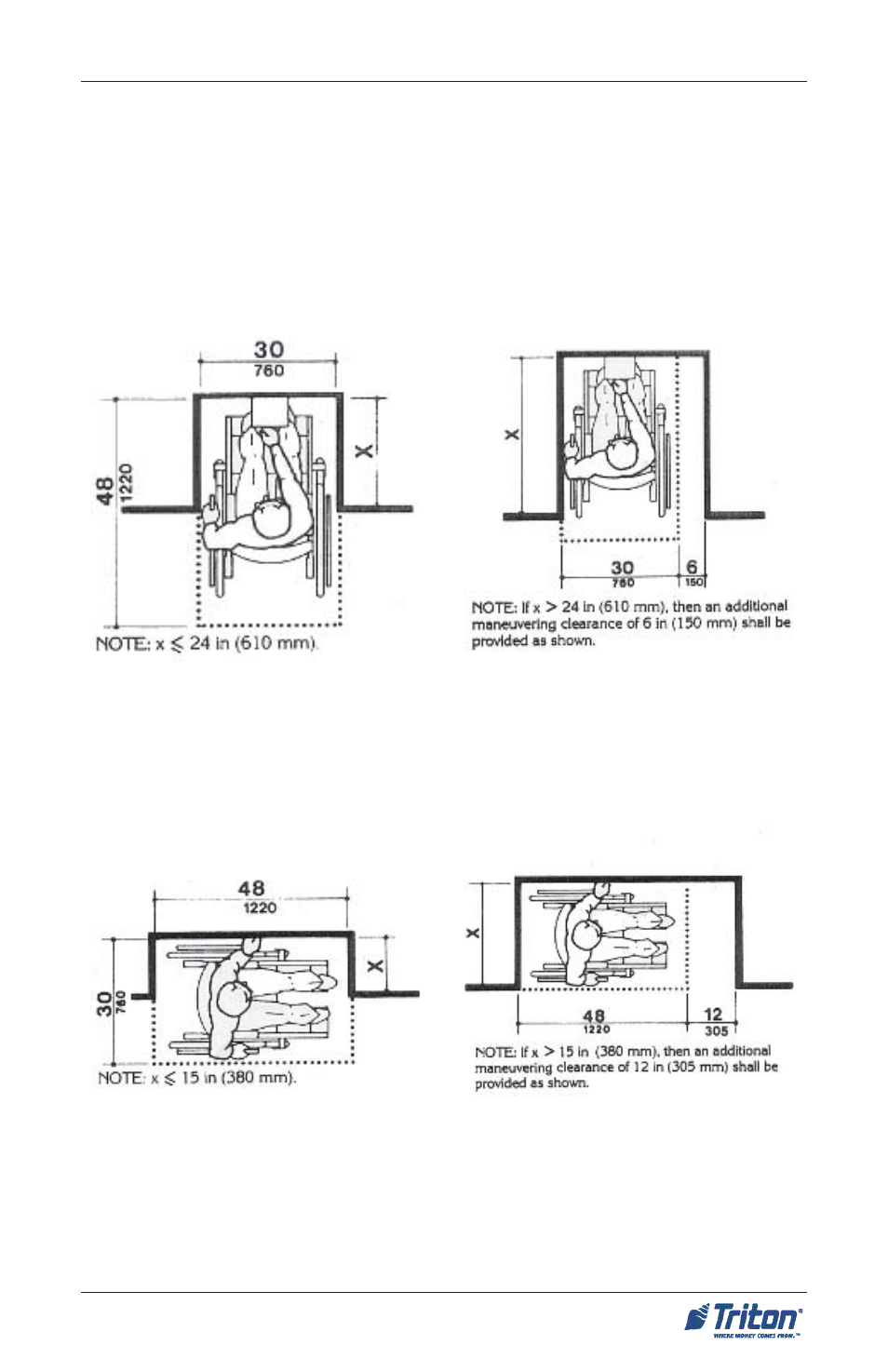

For a front approach, where the depth

of the alcove is equal to or less than 24

inches (610 mm), the required clear floor

space is 30 inches by 48 inches (760 mm

by 1220 mm).

For a side approach, where the depth of

the alcove is equal to or less than 15

inches (380 mm), the required clear floor

space is 30 inches by 48 inches (760 mm

by 1220 mm).

Figures 4d . Clear Floor Space in

Alcoves.

For a front approach, if the depth of the

alcove is greater than 24 inches (610 mm),

then in addition to the 30-inch (760 mm)

width, a maneuvering clearance of 6

inches (150 mm) in width is required.

For a side approach, where the depth of

the alcove is greater than 15 inches (380

mm), then in addition to the 48-inch (1220

mm) length, an additional maneuvering

clearance of 12 inches (350 mm) is

required.

Figures 4e. Clear Floor Space in

Alcove.

ATM I

NSTALLATION FOR

A

CCESSIBILITY

4.2.6

Side Reach. If the clear floor space allows parallel approach by a person in

a wheelchair, the maximum high side reach allowed shall be 54 inches (1370 mm) and

the low side reach shall be no less than 9 inches (230 mm) above the floor (Fig. 6(a)

and 6(b)). If the side reach is over an obstruction, the reach and clearances shall be

as shown in Fig 6(c).
