7.1.1 NORMAL OPERATE SCREEN
In the Sample Normal Operate Screen above, the different areas are as follows:
• The Top Display Section displays 4 Sets of information.
1. Bin Level Status: The levels of up to 3 bin sensors are shown in the
left most area. Notice, Bin 1 is full and Bin 2 and 3 are empty.
2. Active Alarm: Any time an alarm is active a bell will appear to the
right of the 3
rd
Bin Level Icon.
3. Clutch Status: The gear icon is an outline when the clutch is
disengaged and a solid icon when the clutch is engaged.
4. Ground Speed: Indicated by miles per hour in the top right corner
• The User Selectable Display Window Area is “Sensor Selectable” as well
as “View Selectable”. This is explained in detail in Section 7.2.4 and
Section 7.2.5.
Bin Level
C
lut
c
h S
tat
us
G
round
User Selectable
Display Window
A
A
la
rm
S
ta
tu
s

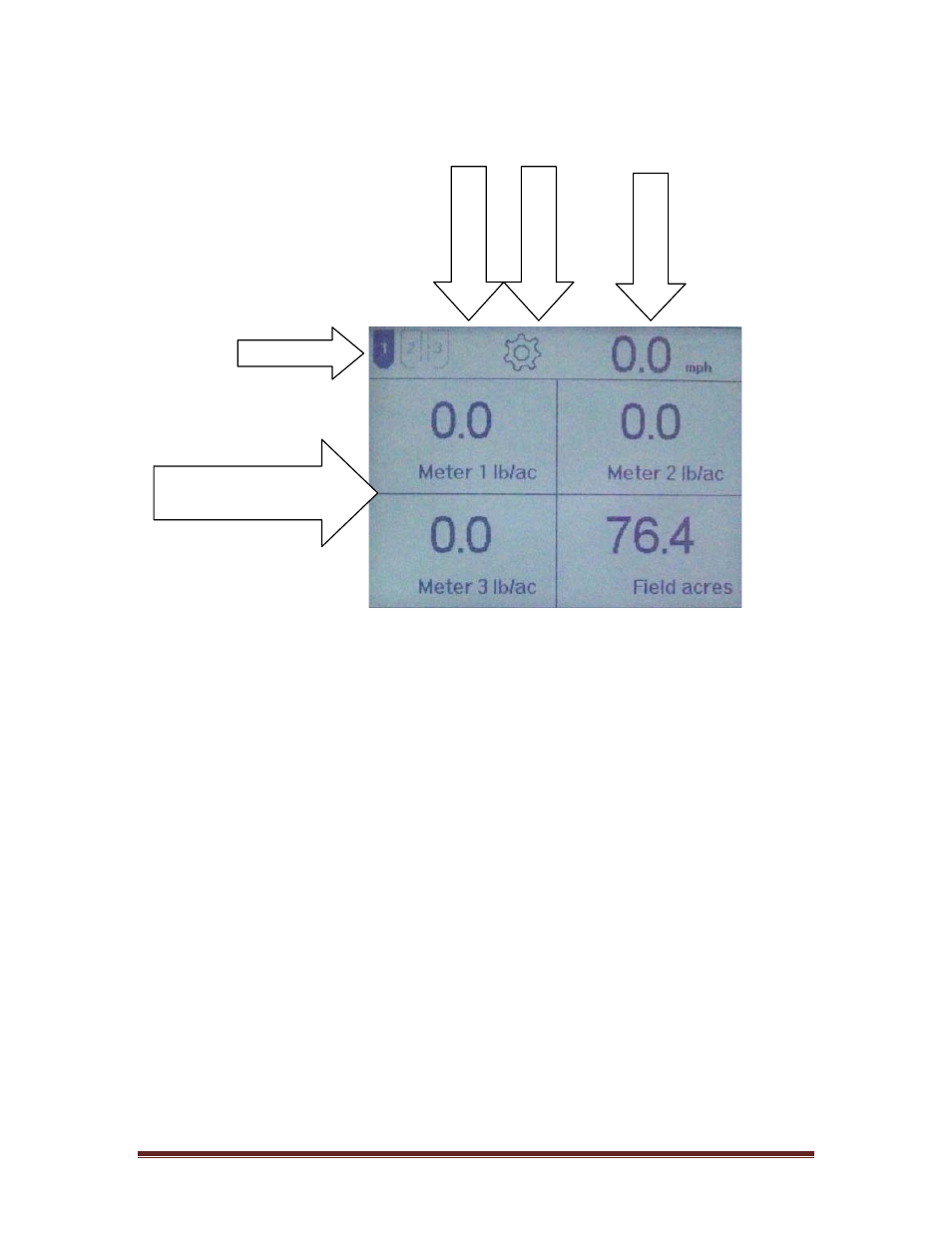

Figure 32: Sample of Normal Operate Screen
