4.0 OPERATION
4.1 LODAR WIRELESS REMOTE
CAUTION! Be sure to stand clear of the fill auger or conveyor when
using the remote. An unexpected button press could swing the
implement into the operator or a bystander causing bodily harm.

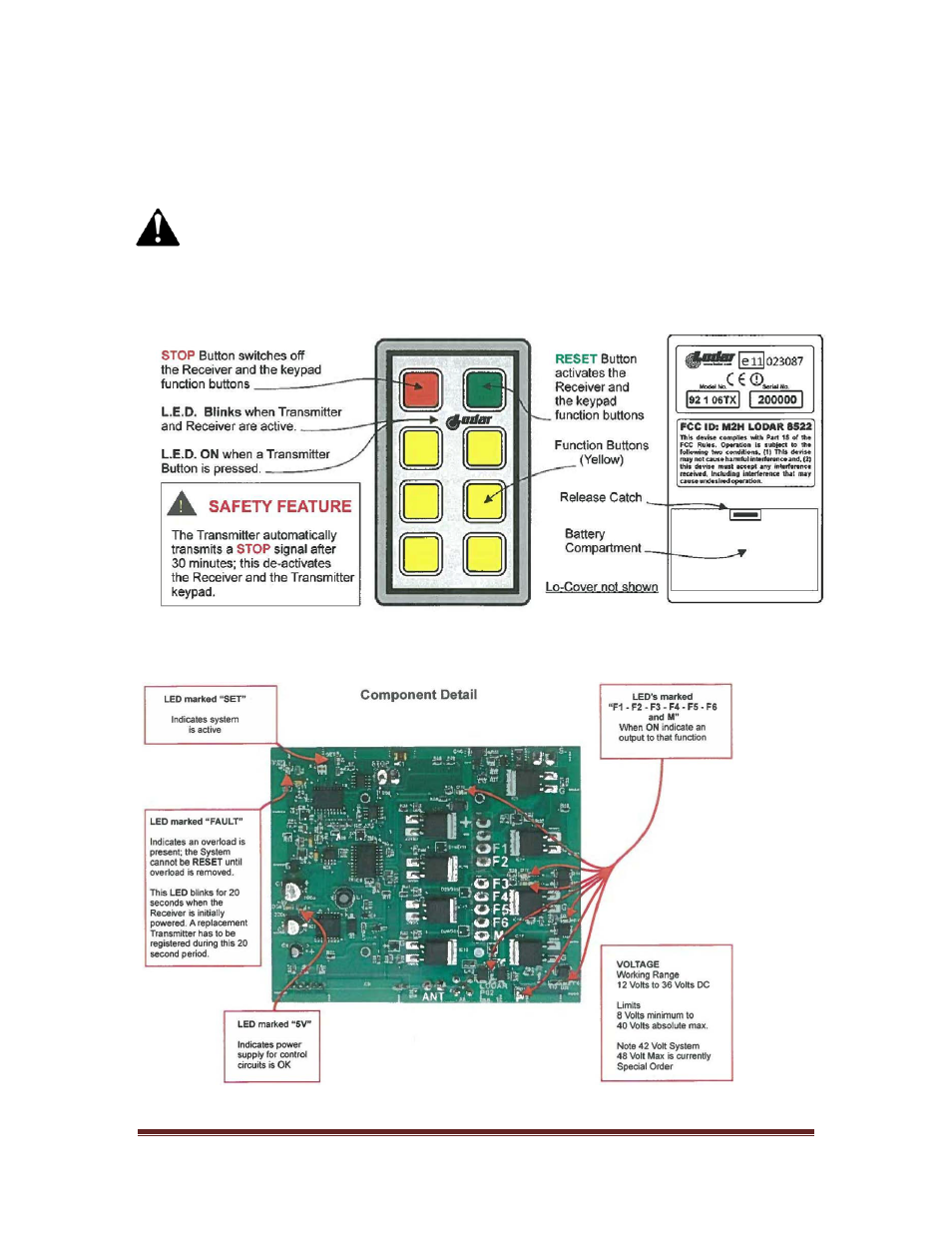

4.1.1 Labeled Lodar Remote Diagram
4.1.2 Labeled Lodar Receiver Diagram
