4.3.1 Positioning the Conveyor
NOTE:
1. Ensure your tractor circuit is
engaged in the correct
direction prior to engaging the
conveyor diverter valve. If
circuit is already engaged, direct
the fan diverter valve to the
conveyor position from the fan
setting. Use the remote provided
to move the conveyor in and out
of transport. NOTE: If remote
Ensure that the area in the vicinity of conveyor operation is free of
obstructions and that all bystanders, especially children, are kept at
a safe distance before positioning or operating the conveyor.
does not operate properly use
manual levers provided as
backup control.
2. Remove pin from outer arm
locking mechanism and unlatch,
Figure 14.
3. Remove pin from rear locking
arm, swing out handle, and
release conveyor, Figure 15.
4. Maneuver conveyor, using tilt
cylinder first to lift conveyor out of
the front saddle, Figure 16.
5. Move the outer arm and then the
inner arm to position conveyor
where filling or emptying the
aircart is optimal. Unlatch and
unfold the conveyor hopper.
6. Hydraulic cylinders will hold the
position so conveyor will not
move even if placed on uneven
terrain.

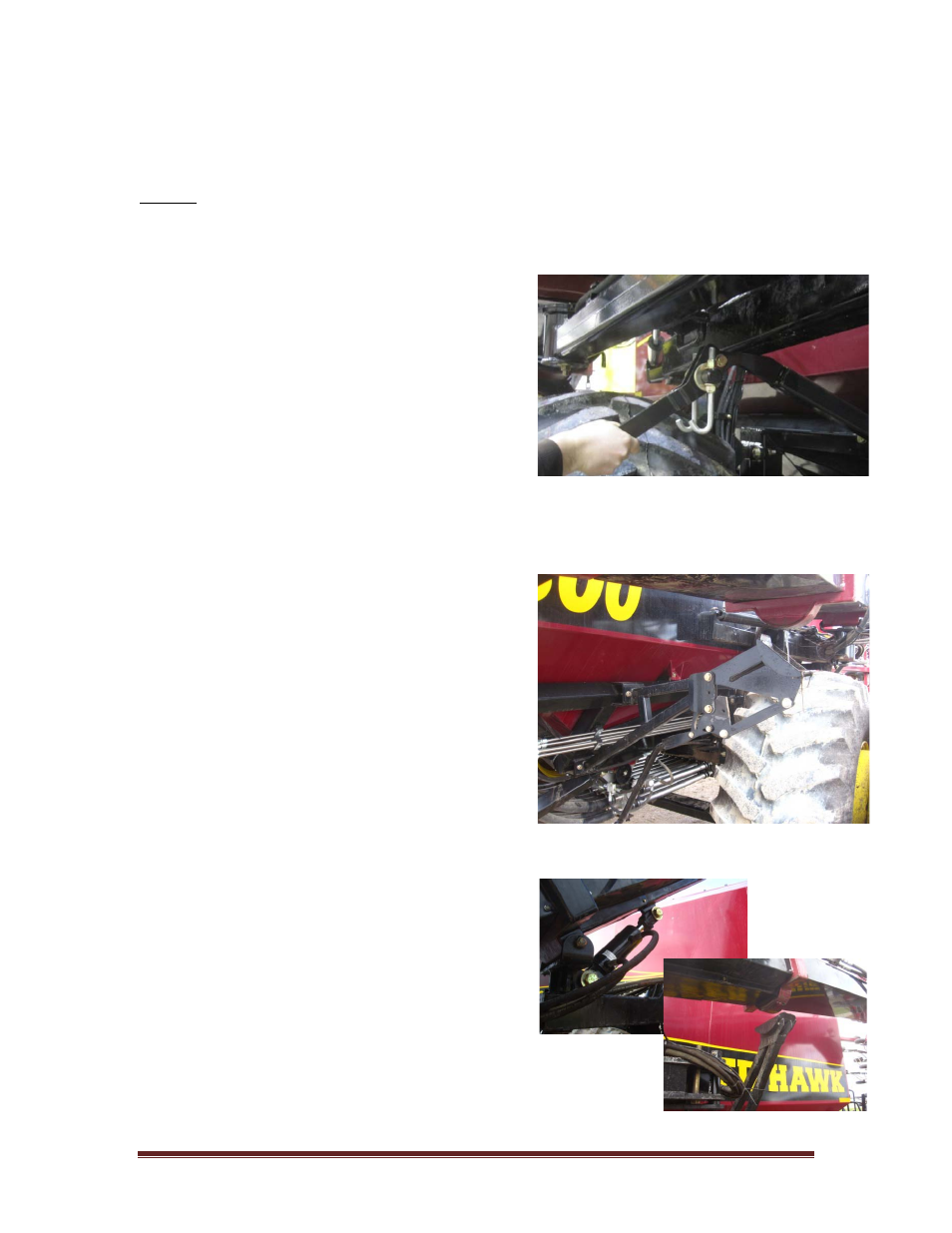

Figure 14
Figure 15
Figure 16
