Manual Aircart Page 31
4.8 SEED HAWK
®
PRESSURIZED METERING SYSTEM

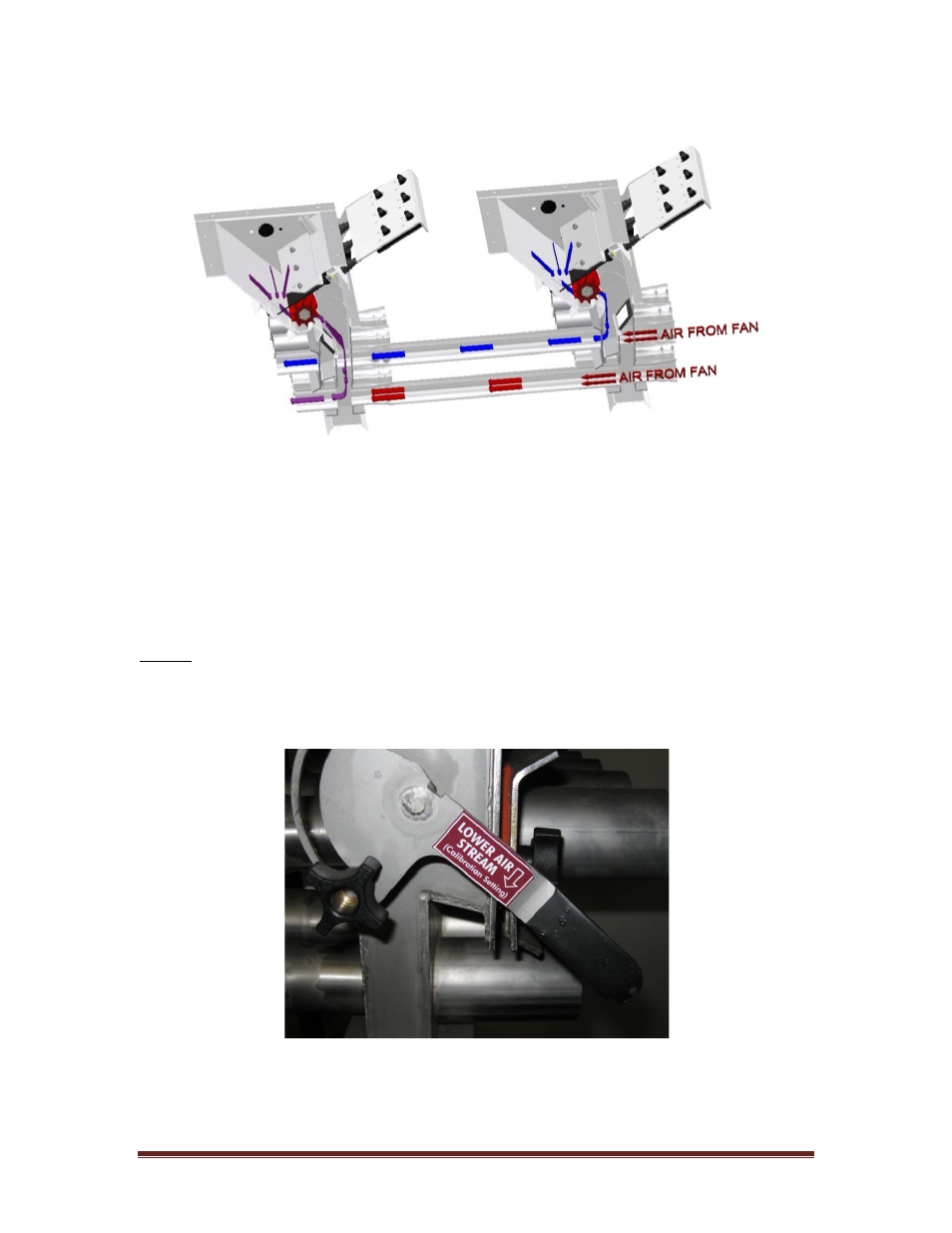

Figure 27: Pressurized Meters
With the Seed Hawk
®
pressurized metering system product can be diverted to
either air stream, Figure 27. This gives the Aircart ultimate flexibility by allowing
the option of diverting any product to either the seed knife or the fertilizer knife.
To change the air stream that a meter will deliver product to, adjust the diverter
valve on the side of the meter body, Figure 28.
NOTE
: This meter is only designed to send product into one air stream at a
time. Seed Hawk
®
takes no responsibility for damage and cannot
guarantee acceptable seeding performance if the diverter valve is
set in between air streams.
Figure 28: Diverter Valve
