End pocket, Fig. 21 end pocket – Hired-Hand RollSeal Rollup Curtains: ROLLUP CURTAIN SYSTEM Rev 11-05 User Manual
Page 29

Part No. 4801-5138 Rev 11-05
Rollup Curtain System
Page 29
14. End Pocket
NOTE: C-channel should be cut to length of pocket.
1. Detail A. Fasten C-channel to brackets with sheet metal screws to form C-channel assembly. Repeat for
top C-channel, middle C-channel, and bottom C-channel assemblies. Be sure to use correct bracket. See
NOTE in Fig. 21-below.
2. Detail B. Position top C-channel assembly as shown. Attach C-channel assembly to top stinger with sheet
metal screws.
3. Detail C. Position middle C-channel assembly as shown. Attach C-channel assembly to middle stringer
with sheet metal screws.
4. Detail D. Position bottom C-channel assembly as shown. Attach bottom C-channel assembly to concrete
foundation with Tapcon screws.
5. Detail E. Attach cap to each end of system as shown. Attach panels to C-channels with sheet metal
screws.
DETAIL E
TOP VIEW
End cap
End cap
This end cap encloses
end of pocket.
DETAIL A
DETAIL B
DETAIL C
DETAIL D
Bracket
8" C-channel
(not supplied)
Metal panel
Sheet metal
screw
4.0"
(10.2 cm)
4.0"
(10.3 cm)
4.0"
(10.3 cm)
Sheet metal
screw
Concrete
8" C-channel
(not supplied)
8" C-channel
(not supplied)
8" C-channel
(not supplied)

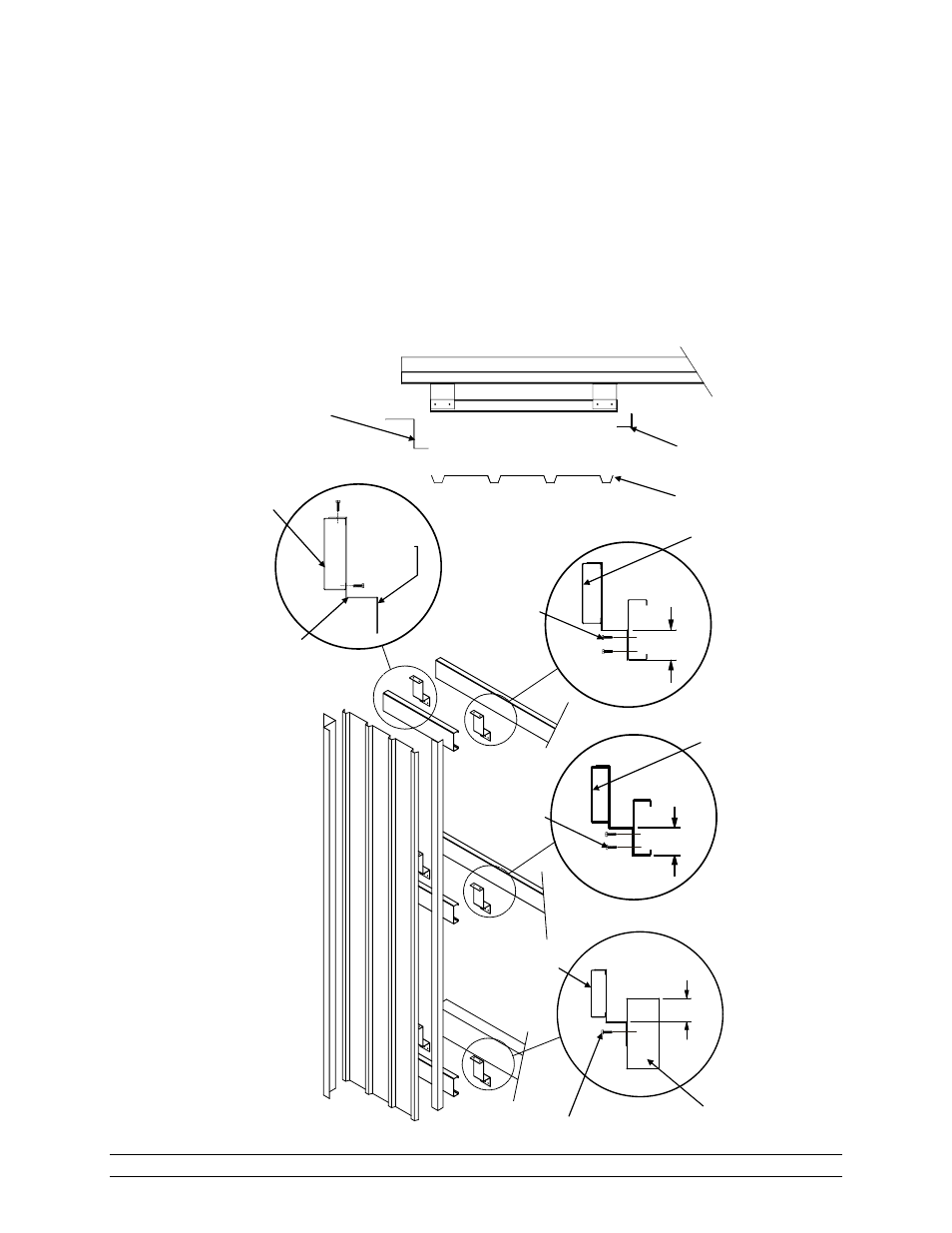

FIG. 21
End Pocket
Tapcon screw
NOTE:
C-channel
Should Be Cut
To Length Of
Pocket. 3 Ft.
(91 cm) Is
Recommended.
NOTE: The Drive
pocket bracket
extends outward
farther than the
End pocket
bracket. Make sure
to use correct
bracket.
NOTE: End pocket
bracket extends 3"
(8.9 cm).
