Part No. 4801-5138 Rev 11-05
Rollup Curtain System
Page 27
12. Rollup Drive – Dual Rack Mount
1. Before mounting the Rollup Drive to the building, attach the Rollup Drive Rack (1059-6004), Rack Mounting
Bracket (0404-5141) and Rack Splice Brackets (0404-5646) to the racks with 3/8-16 HEX screws (1004-1426)
& nuts (1001-1457) provided as shown in Details A & B below.
2. Attach the Right & Left Pinion Assemblies (6419-0100/0104) down the Drive Racks. See Detail C.
3. Attach the drive to the pinion assembly as shown in Figure 18. Refer to Sections 9 through 12, Figures 9
through16 for the appropriate drive installation.
4. Attach the Rollup Drive to the Curtain Pipe using Universal Joints (6419-0204) as shown in Detail D below.

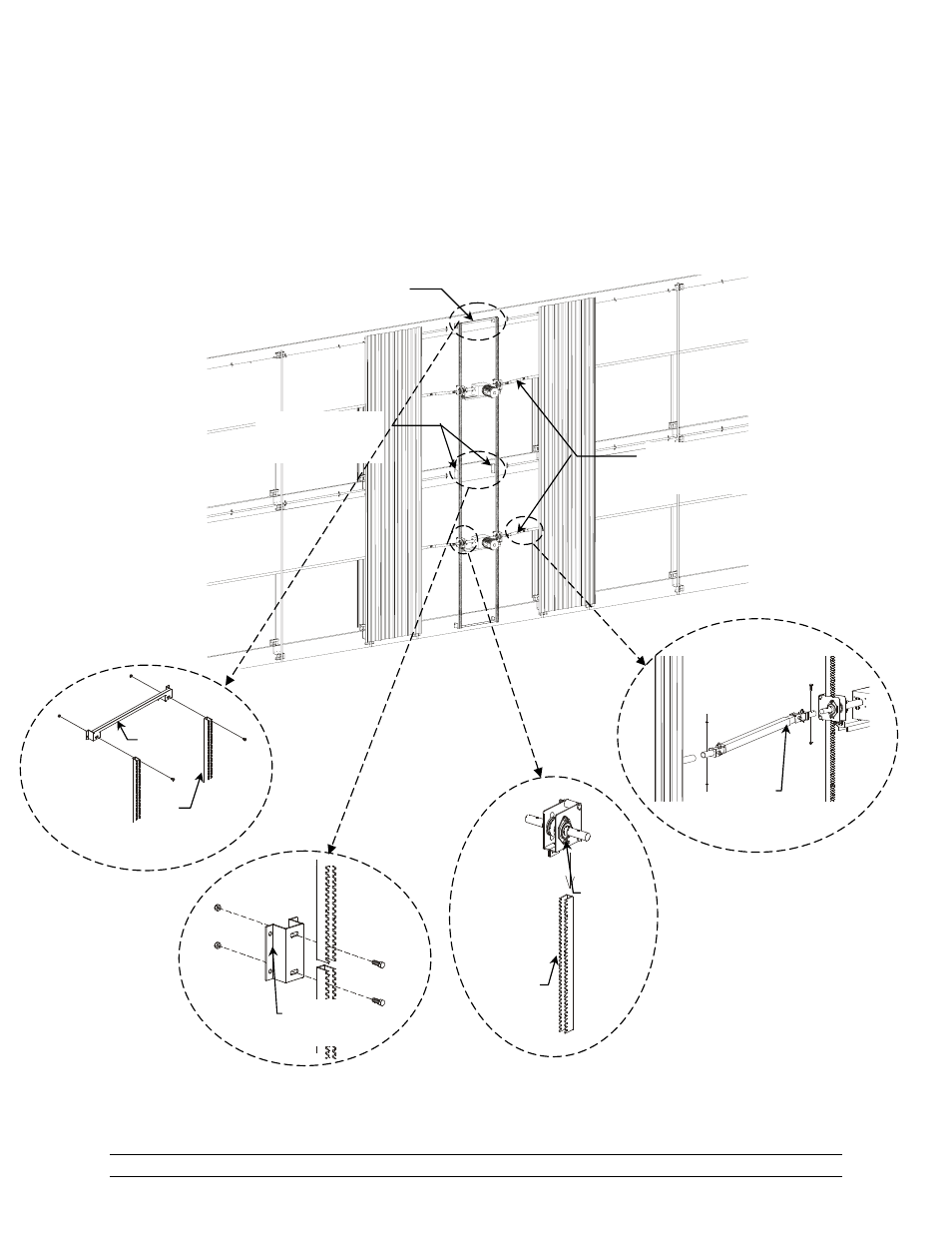

Fig. 18
6419-0204
Universal Joint
0404-5646
Rack Splice Bracket
0404-5141
Rack Mounting
Bracket
Detail C
Pinion
Assembly
Rack
Mounting
Bracket
Detail A
Rack
Detail D
Universal
Joint
Detail B
Rack Splice
Bracket
