Fig 12 universal – Hired-Hand RollSeal Rollup Curtains: ROLLUP CURTAIN SYSTEM Rev 11-05 User Manual
Page 20

Part No. 4801-5138 Rev 11-05
Rollup Curtain System
Page 20
3/8-16
Lock nut
3/8-16 x 3 screw
7.
Attach universal to end of bottom pipe with coupling & pop rivets as shown in Fig. 12.
8.
Attach universal to motor as shown with screw & lock nut as shown in Fig. 12.
9.
Connect switch to motor. Refer to wiring diagram.
10.
Motor installation complete.

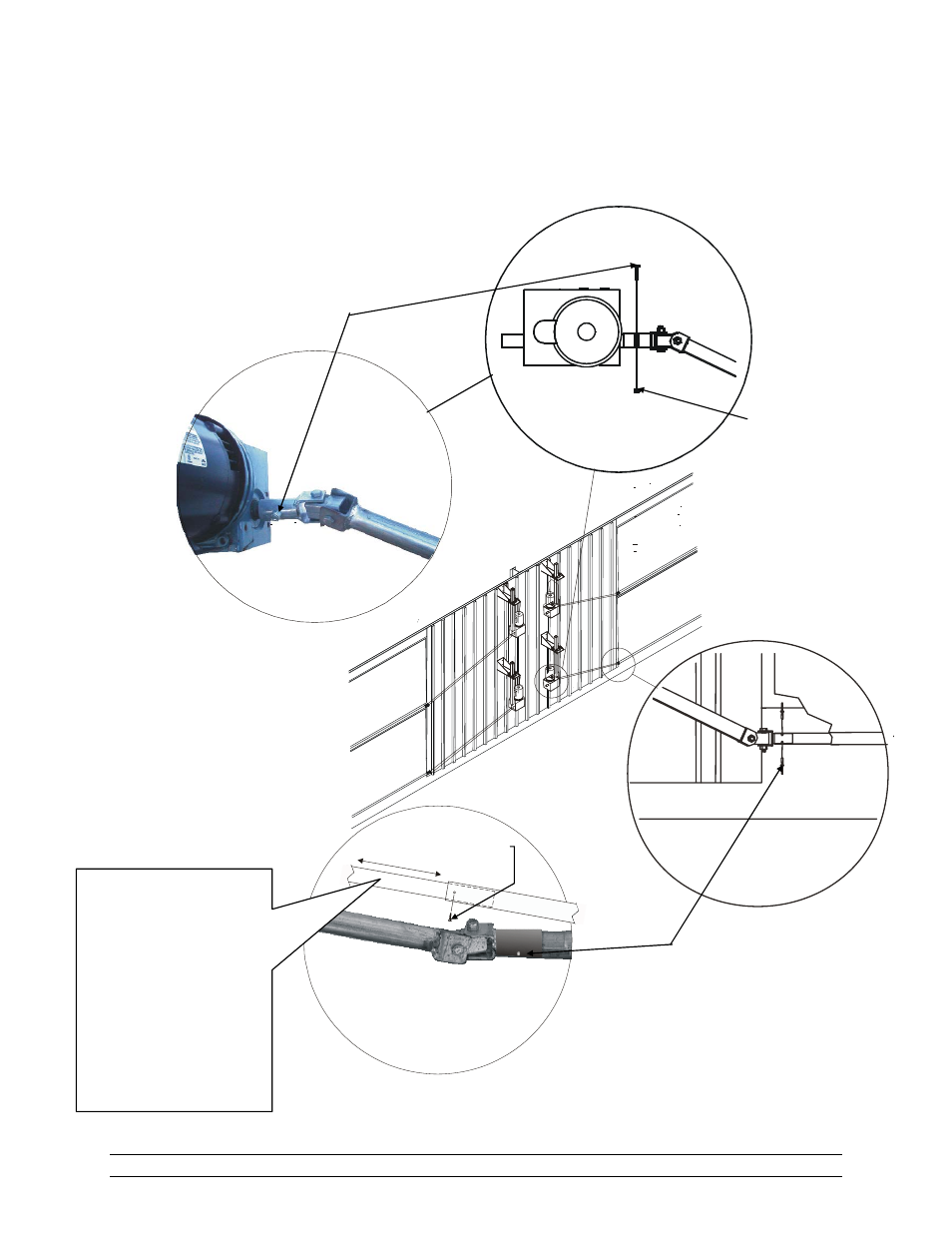

FIG 12
UNIVERSAL
Self-drilling
screw
Length of universal
may be adjusted by
telescopic movement.
When installing
universal, adjust
universal to required
length. Then lock
universal in place by
installing self-drilling
screw through
overlapping sections,
as shown in diagram.
Stainless steel
pop rivet
Top View
