Brocade FastIron GS and GS-STK Hardware Installation Guide 71
53-1002186-02
Device specifications
6
DRAFT: BROCADE CONFIDENTIAL
Pinouts and signalling
This section lists the pinouts for the DB-9 connector and RJ-45 port jacks.
Serial (Console) port pinouts

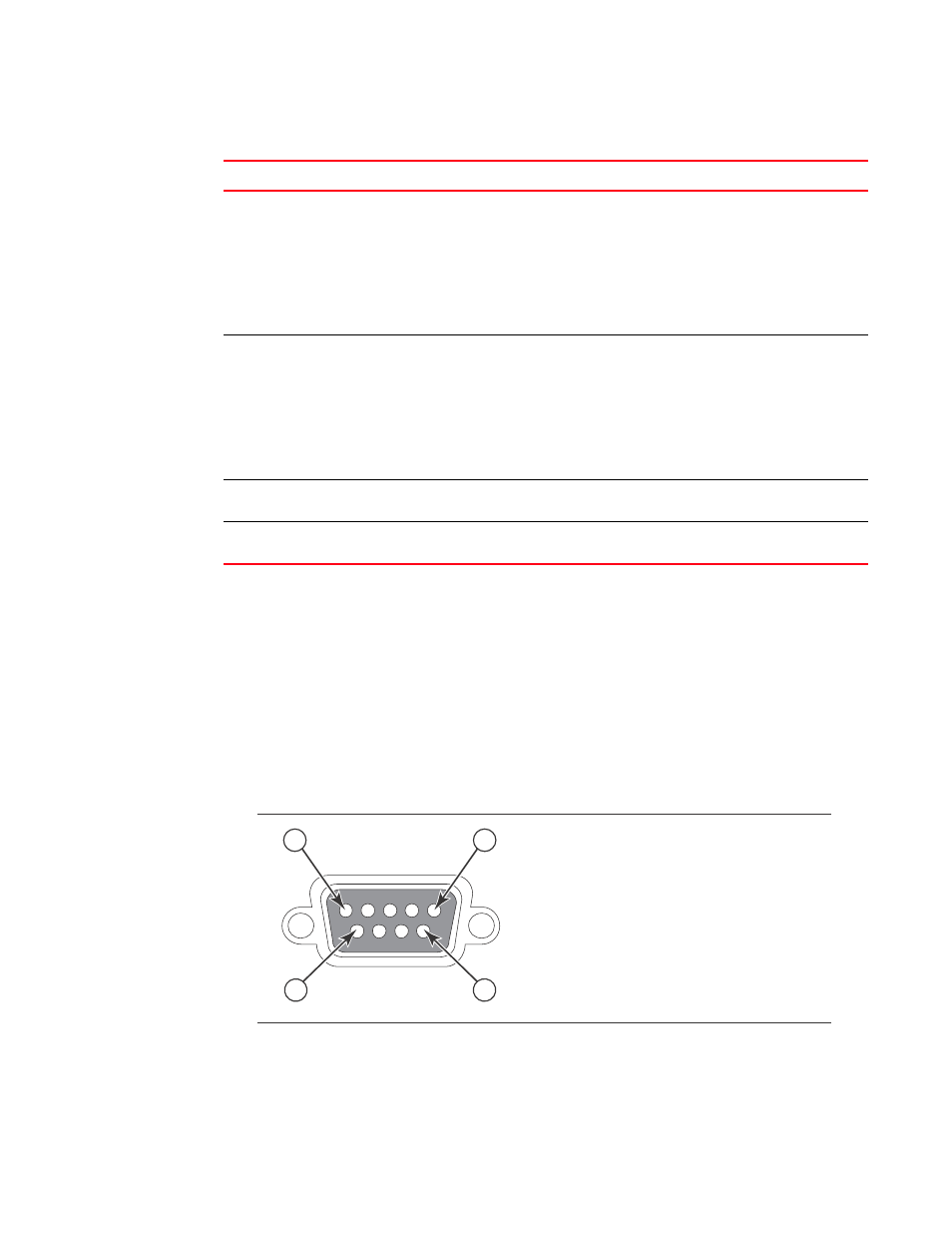

The Console port is a standard male DB-9 connector, as shown in Figure 48 .
FIGURE 48 Serial port pin and signalling details
Most PC serial ports require a cable with a female DB-9 connector. However, terminal connections
will vary, requiring a cable with either a DB-9 or DB-25 connector, male or female.
TABLE 17 Power Supply Draw Specifications
Model Typical Maximum
FGS 24-Port
•
without uplink: 3.5A @12V = 42W
•
with 2CX4+1XFP: 4.4A @ 12V = 53W
•
with 2XFP+1XFP: 4.3A @ 12V = 53W
•
with Combo+1XFP: 4.2A @ 12V = 53W
•
without uplink: 1.7A @ 12V/PS1 + 1.7A
@ 12V/PS2 = 48W
•
with 2CX4+1XFP: 2.2A @ 12V/PS1 +
2.2A @ 12V/PS2 = 63W
•
with 2XFP+1XFP: 2.1A @ 12V/PS1 +
2.2A @ 12V/PS2 = 67W
•
with Combo+1XFP: 2.0A @ 12V/PS1 +
2.1A @ 12V/PS2 = 65W
FGS 48-Port
•
without uplink: 6.8A @12V = 82W
•
with 2CX4: 7.4A @12V = 89W
•
with 2XFP: 7.3A @12V = 89W
•
with Combo: 7.4A @12V= 89W
•
without uplink: 3.4A @ 12V/PS1 + 3.4A
@ 12V/PS2 = 94W
•
with 2CX4: 3.7A @ 12V/PS1 + 3.7A @
12V/PS2 = 102W
•
with 2XFP: 3.6A @ 12V/PS1 + 3.6A @
12V/PS2 = 106W
•
with Combo: 3.7A @ 12V/PS1 + 3.7A @
12V/PS2 = 104W
FGS-STK
24-Port
•
with 2CX4+1XFP: 4.4A @ 12V = 53W
•
with 2CX4+1XFP: 2.2A @ 12V/PS1 +
2.2A @ 12V/PS2 = 63W
FGS-STK
48-Port
•
with 2CX4: 7.4A @12V = 89W
•
with 2CX4: 3.7A @ 12V/PS1 + 3.7A @
12V/PS2 = 102W
Pin Assignment
DB-9 mal
Pin Number Switch Signal
6
1 Reserved
2 TXD
(output)
3 RXD (input)
4 Reserved
5 GND
6 Reserved
7 Reserved
8 Reserved
9 Reserved
1 5
9
