Installing a poe daughter card, Figure 57 – Brocade FastIron GS and GS-STK Hardware Installation Guide User Manual
Page 103

Brocade FastIron GS and GS-STK Hardware Installation Guide
93
53-1002186-02
Installing or replacing a POE daughter card
8
DRAFT: BROCADE CONFIDENTIAL

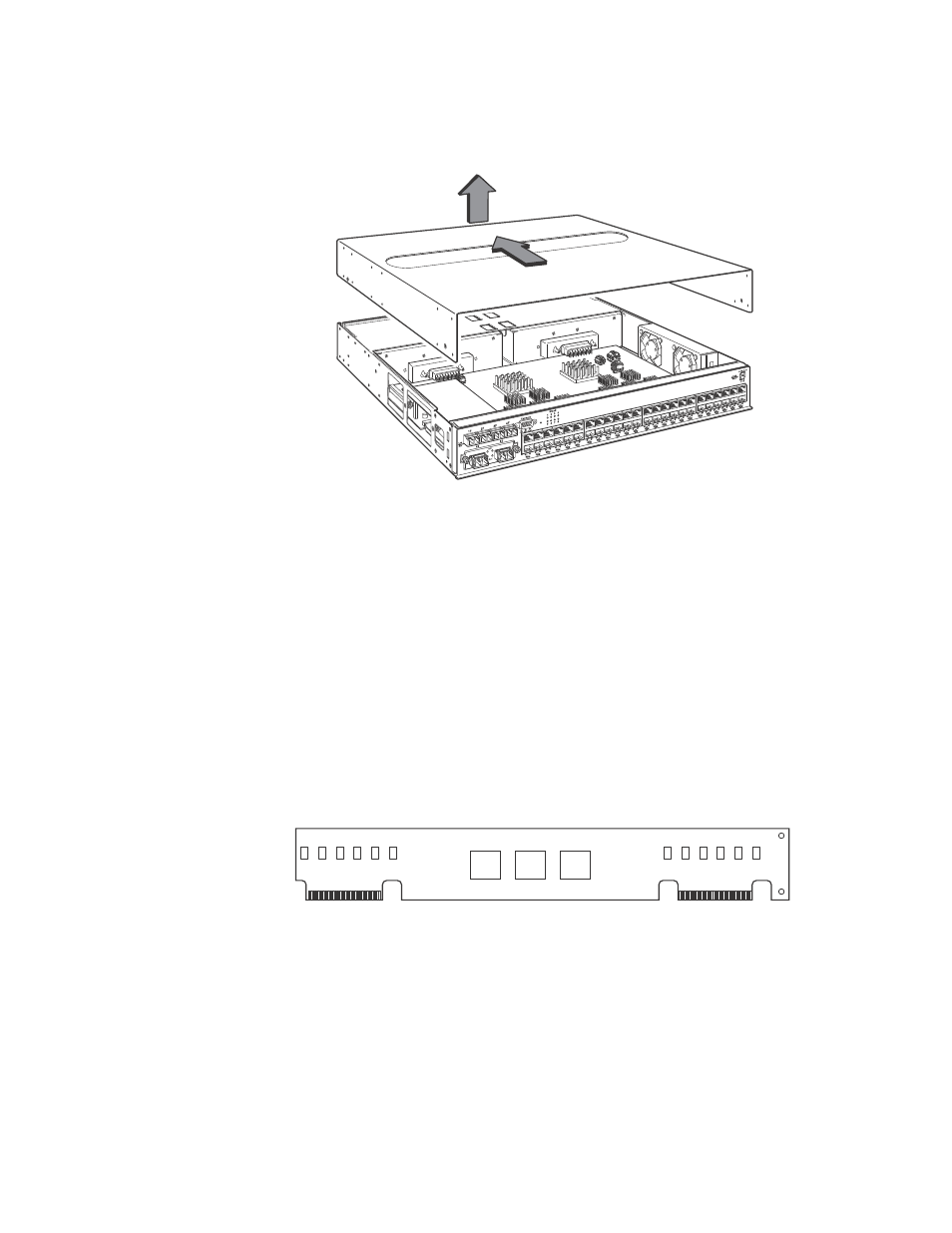

FIGURE 57
Removing the Cover
4. Proceed to
“Installing a POE daughter card”
.
Installing a POE daughter card
To replace or install the POE daughter card, do the following:
1. Disassemble the device as instructed in the section
2. If you are replacing the POE daughter card, remove the existing card from the connector slot on
show the locations of the POE daughter cards on the
main board of the FGS624P-POE and the FGS648P-POE.
3. Install the new POE daughter card:
•
Remove the POE daughter card from its packaging. The POE daughter card is keyed to
prevent improper insertion, as shown in
FIGURE 58
POE Daughter Card
•
Locate the connector slots for the POE daughter card on the main board (
and
•
Insert the POE daughter card into the connector slot on the main board as shown in
for the FGS648P-POE.
shows the location of the POE daughter card on the main board of the FGS624P-POE
or FGS624P-POE-STK device.
