1. Remove the protective covering from the fiber-optic port connectors and store the covering for
future use.
2. Before cabling a fiber optic module, Brocade strongly recommends cleaning the cable
connectors and the port connectors. For more information, refer to
3. Gently insert the cable connectors (a tab on each connector should face upward) into the port
connectors until the tabs lock into place.
4. Observe the link and active LEDs to determine if the network connections are functioning
Cleaning the fiber-optic connectors
To avoid problems with the connection between the fiber optic module (SFP (mini-GBIC) or XFP) and
the fiber cable connectors, Brocade strongly recommends cleaning both connectors each time you
disconnect and reconnect them. In particular, dust can accumulate in the connectors and cause
problems such as reducing the optic launch power.
To clean the fiber cable connectors, Brocade recommends using the fiber-optic cleaner that
shipped with your Brocade device. You can also purchase this type of cleaner from the following
Website:
http://www.fisfiber.com
When not using an SFP or XFP connector, make sure to keep the protective covering on.

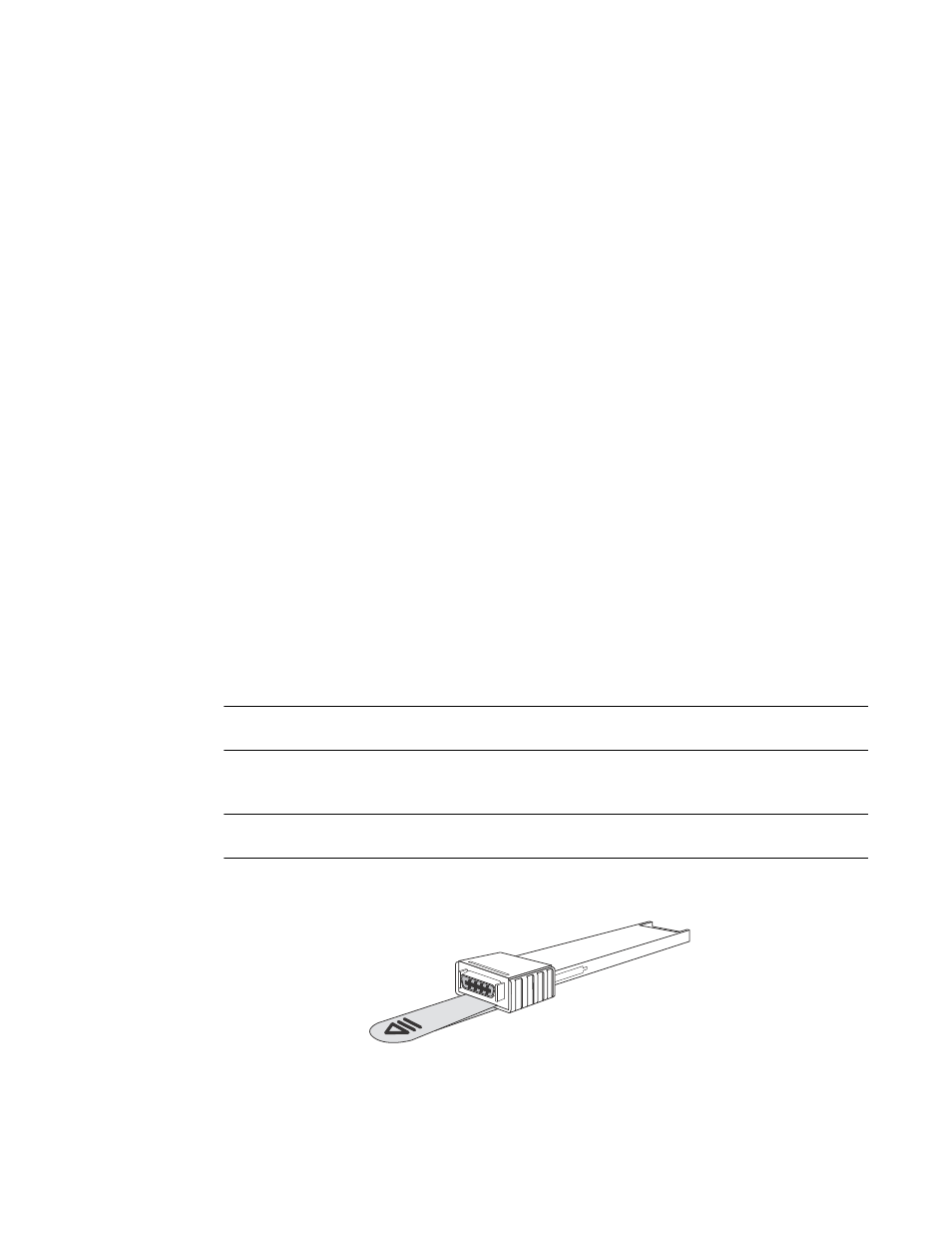

Using a CX4 transceiver
FGS and FGS-STK devices support a twin-axial 10G copper CX4 XFP transceiver that can be
installed in any 10G port.
NOTE
For a link to operate properly, both sides must use identical CX4 transceivers.
The CX4 transceiver requires a 15 meter CX4-grade cable, which may be purchased from Brocade.
Refer to part number CAB-CX4-0050 when ordering.
NOTE
The CX4 transceiver is not hot-swappable.
