Brocade ICX 6430-C Compact Switch Hardware Installation Guide User Manual
Page 33
1.
Ensure that the magnet sheet is attached to the bottom panel of the device. See
on page 28 and
Attaching the magnet sheet to the device
2.
Place the magnet sheet (with the logo side now attached to the bottom panel of the device) against
the metal surface or metal wall. See the following two figures.

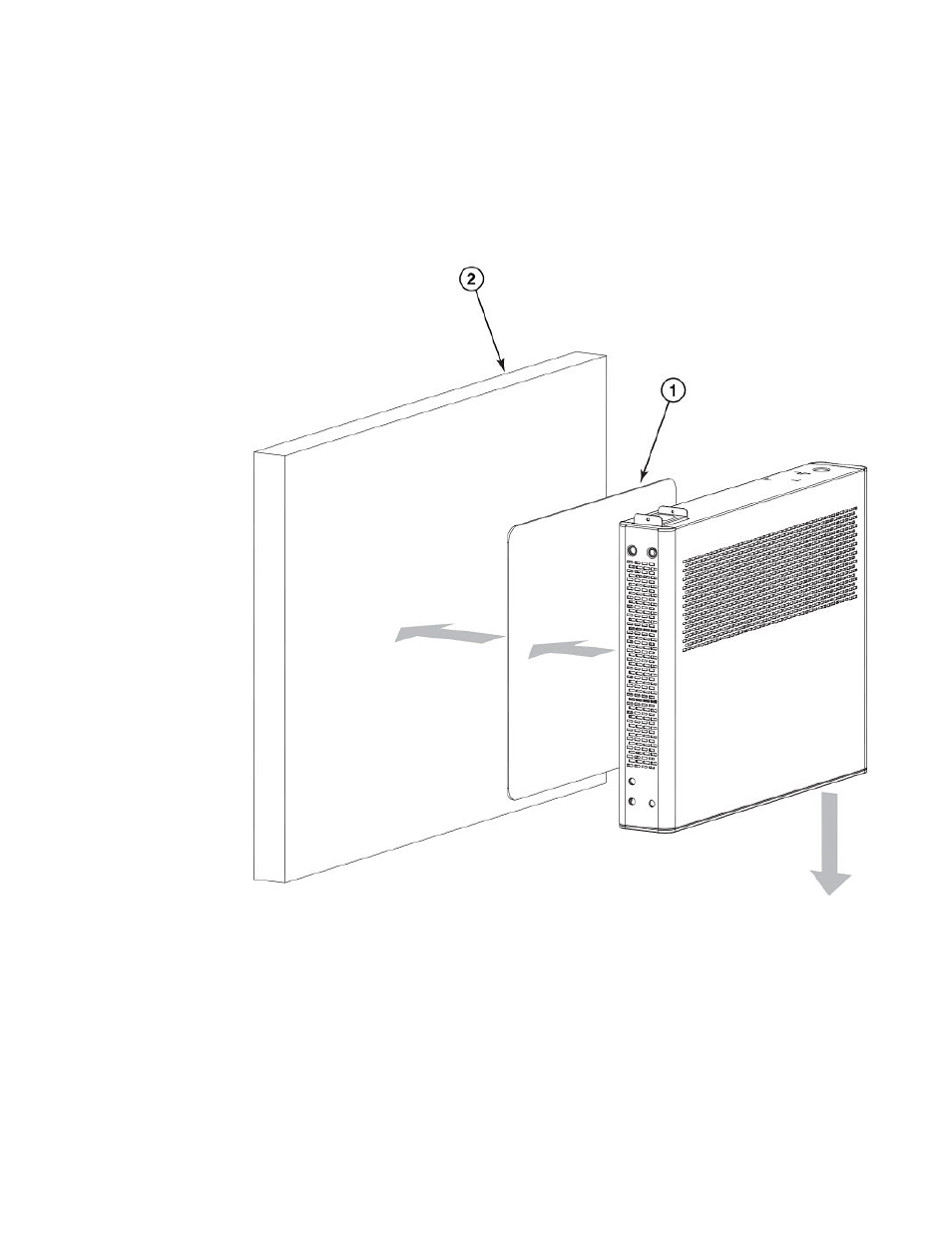

FIGURE 16 Mounting an ICX 6430-C device to a metal surface using the magnet mount
FIGURE 17 An ICX 6430-C device securely mounted on a metal surface with ports facing down
ICX6430-C Installation
Brocade ICX 6430-C Compact Switch Hardware Installation Guide
31
53-1003080-01
