Wall mount installation using wall mount brackets
on page 26
•
Mounting the device with a magnet
on page 28
DANGER
Mount the devices you install in a rack or cabinet as low as possible. Place the heaviest device
at the bottom and progressively place lighter devices above.
Desktop installation
Complete the following steps to install the ICX 6430-C device on a desktop or other flat surface.

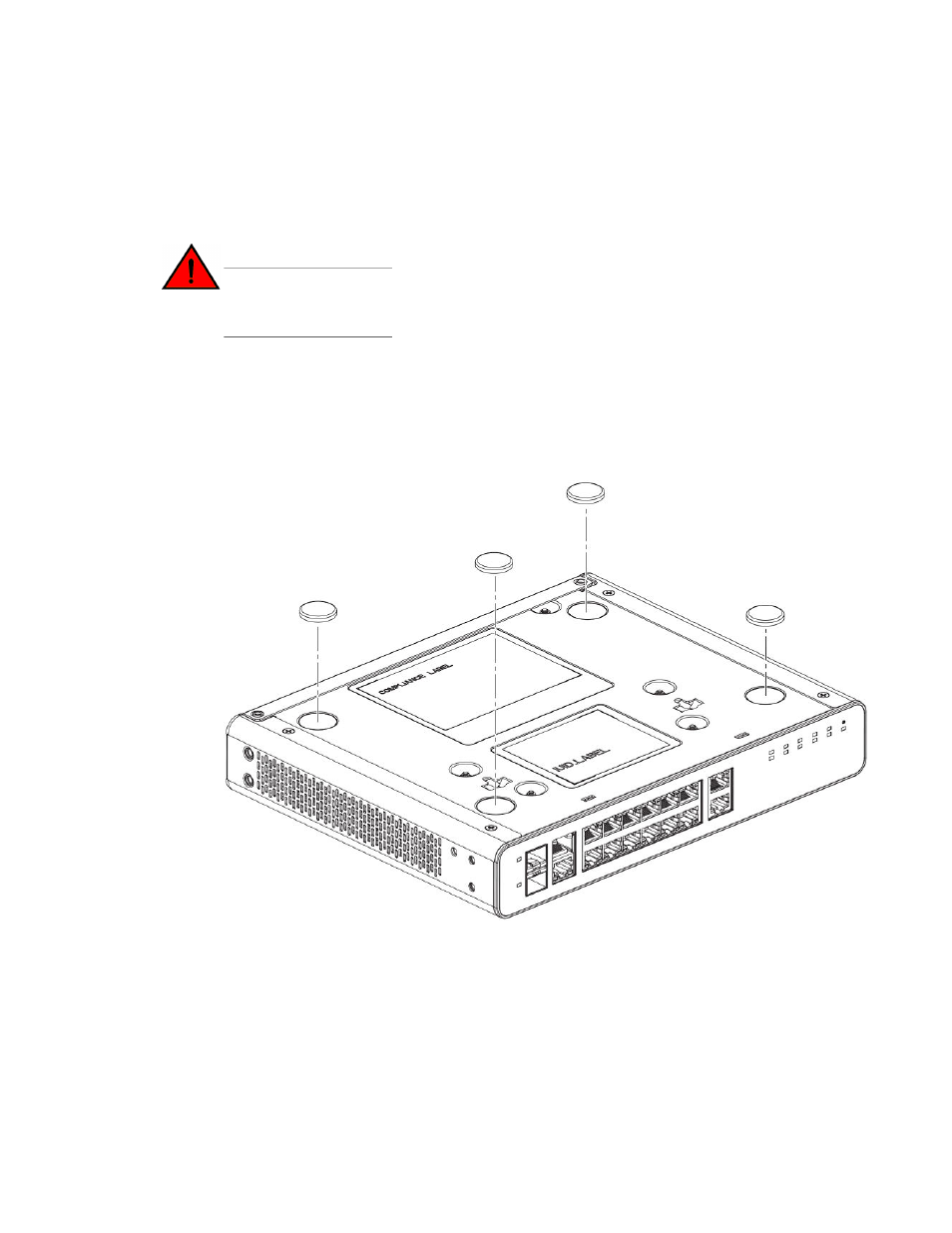

FIGURE 7 Attaching the adhesive feet
1.
Attach the four adhesive feet to the bottom of the device.
2.
Set the device on a flat desktop, table, or shelf near an AC power source. Make sure that adequate
ventilation is provided for the system. A 7.62 cm (3-inch) clearance is recommended on each side.
3.
If installing a single device only, go to the “Powering on the system” task. If installing multiple
devices, place each device squarely on top of the one below.
4.
If installing multiple devices, attach the adhesive feet to each device.
Desktop installation
Brocade ICX 6430-C Compact Switch Hardware Installation Guide
21
53-1003080-01
