Page 15
Port status LEDs (Continued)
TABLE 2
LED
Condition
Status
Off (right side)
The port is not providing PoE or PoE+ power.
100/1GbE RJ45 ports(C1 - C2, Slot
2)
Link/Act
On/ Flashing Green
The port is operating at 1 Gbps. Flashing
indicates the port is transmitting and receiving
user packets at 1 Gbps.
Off
A link is not established with a remote port.
100/1GbE SFP ports(F1 - F2, Slot 3)
Link/Act
On/ Flashing Green
The SFP port is operating at 1 Gbps. Flashing
indicates the port is transmitting and receiving
user packets at 1 Gbps.
Off
A link is not established with a remote port.
System status LEDs
1
System status LEDs

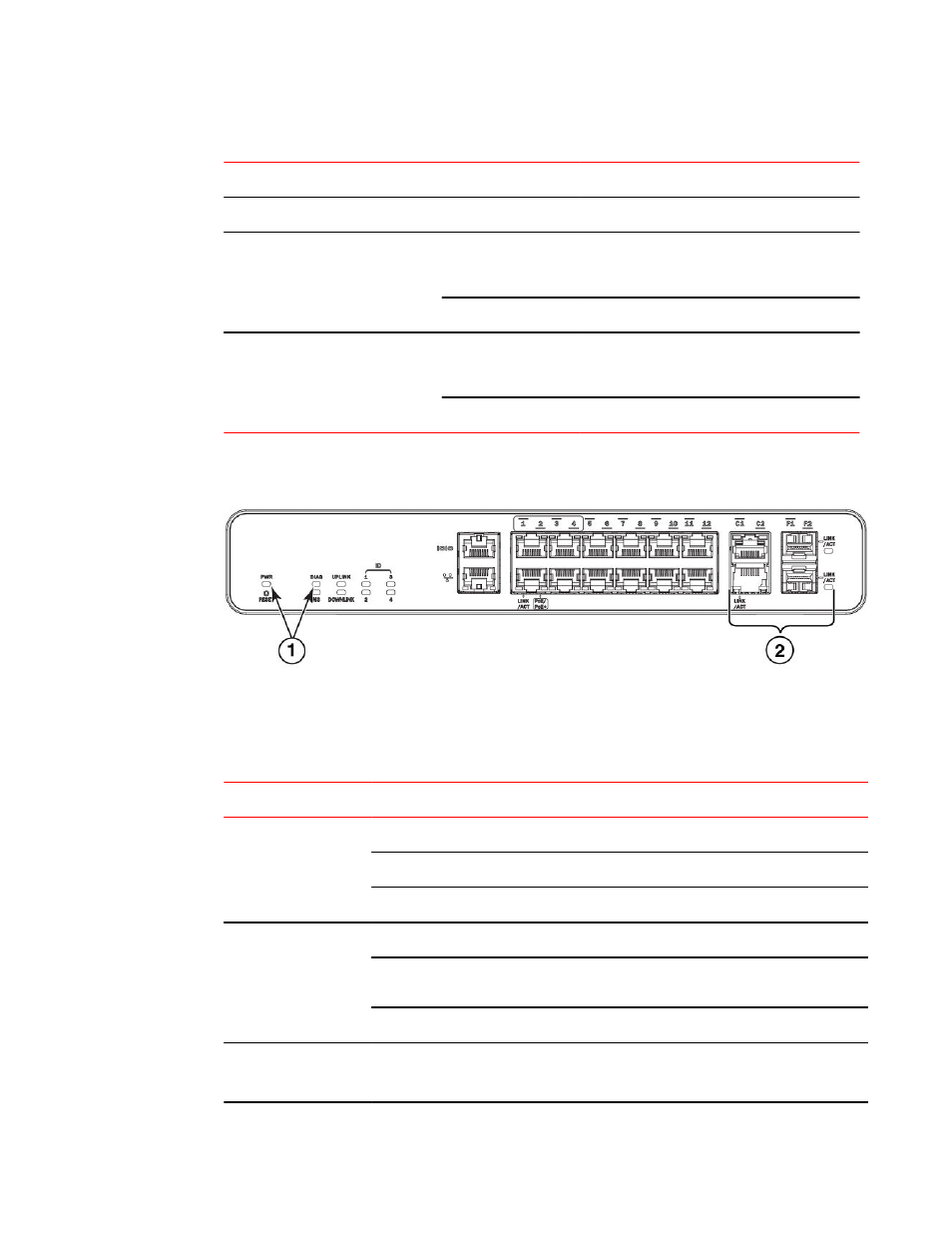

FIGURE 5 System status LEDs on an ICX 6430-C12 device
System status LEDs
TABLE 3
LED
Condition
Status
PWR
(Power)
Green
Power supply is operating normally.
Amber
Power supply fault.
Off
Power supply off.
Diag
(Diagnostic)
Flashing Green System self-diagnostic test in progress. System reloads automatically.
Steady Amber
System self-diagnostic test has detected a fault. (Fan, thermal, or any
interface fault.) The user must reload the system.
Steady Green
System self-diagnostic test passed.
Uplink
(Reserved for future use)
Off
LED is reserved for future use.
System status LEDs
Brocade ICX 6430-C Compact Switch Hardware Installation Guide
13
53-1003080-01
