28

Brocade VDX 6730 Hardware Reference Manual

53-1002389-06

LED activity interpretation

4

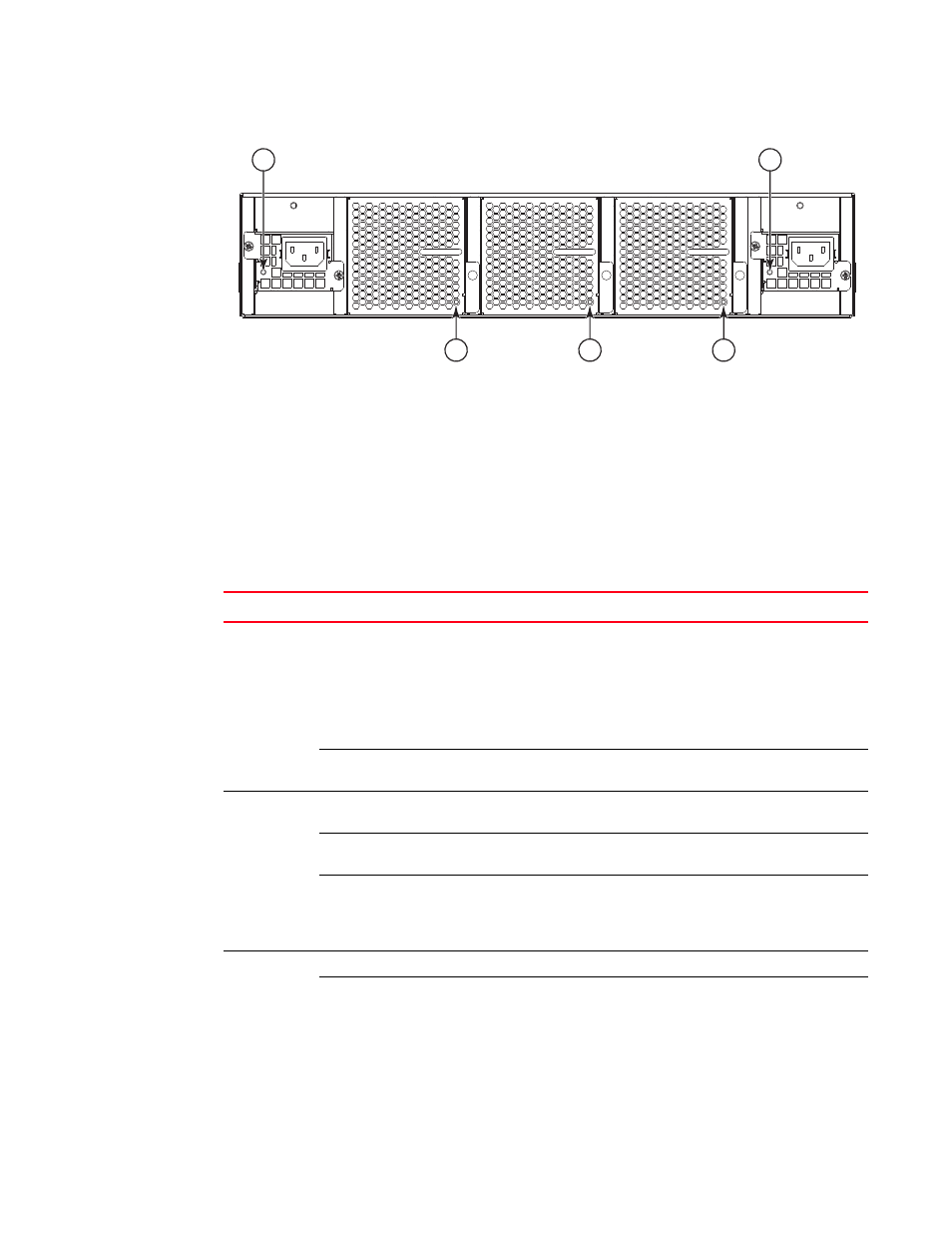

FIGURE 9

LEDs on the non-port side of the Brocade VDX 6730-76

LED patterns

Table 3

describes the port side LEDs and their behaviors.

1

Power supply #2 status LED

4

Fan assembly #2 status LED

2

Power supply #1 status LED

5

Fan assembly #1 status LED

3

Fan assembly #3 status LED

TABLE 3

Port side LED patterns during normal operation

LED name

LED color

Status of hardware

Recommended action

System power
(one LED
[green])

Off (no light)

System is off or there is an
internal power supply failure.

Verify the system is powered on (power
supply switches to “l”), the power
cables are attached, and your power
source is live.
If the system power LED is not green,
the unit may be faulty.
Contact your switch service provider.

Steady green

System is on and power supplies
are functioning properly.

No action required.

System status
(one bicolor
LED [green
and amber])

Off (no light)

System is off or there is no
power.

Verify the system is on and has
completed booting.

Steady green

System is on and functioning
properly.

No action required.

Steady amber (for
more than 5
seconds)

A system fault has occurred
or the switch is in an
initialization state.

Check the management interface and
the error log for details on the cause of
the status.
Contact your switch service provider.

Ethernet Link
(Management
and LOMM
[Remote
Lights Out]
port) (one LED
[green])

Off (no light)

There is no link.

No action required.

Steady green

Link is present.

No action required.

1

2

5

4

3
