3 - 13
IM 11G02M01-01E

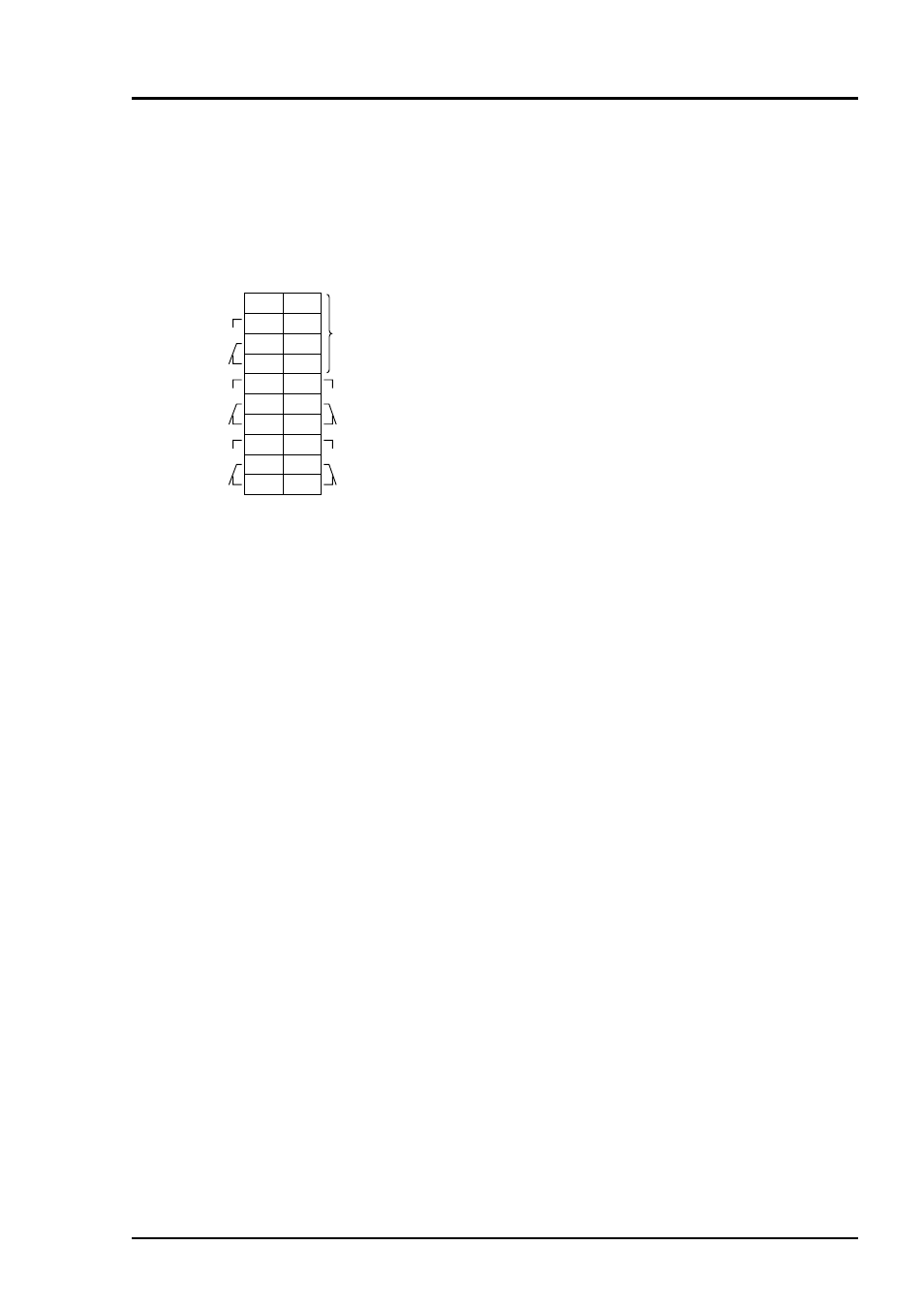

Terminal block 5
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
(M3.5 screw)
Unused
Peak count alarm
output (DO)
CH4 alarm output
(DO)
CH3 alarm output
(DO)
CH2 alarm output
(DO)
CH1 alarm output
(DO)
Unused
Terminal block 5
1 and 11 – 14 : For internal connection. Must not
be wired. (Must not be used as
junction terminal.)
: CH3 alarm output. Conductive at 2–
3 and open at 3– 4 when set value is
exceeded. Open at 2– 3 and conduc-
tive at 3– 4 otherwise.
: CH2 alarm output. Conductive at 5–
6 and open at 6– 7 when set value is
exceeded. Open at 5– 6 and conduc-
tive at 6– 7 otherwise.
: CH1 alarm output. Conductive at 8–
9 and open at 9– 10 when set value
is exceeded. Open at 8– 9 and
conductive at 9– 10 otherwise.
: Peak count alarm contact output.
Conductive at 15 – 16 and open at
16 – 17 when preset peak count is
exceed. Otherwise, open at 15 – 16
and conductive at 16 – 17. For
setting and action, refer to instruc-
tion manual “6.6 Peak Alarm
Setting”.
: CH4 alarm output. Conductive at
18– 19 and open at 19– 20 when set
value is exceeded. Open at 18– 19
and conductive at 19– 20 otherwise.
Between 8– 9
and 9– 10
Between 15–16
and 16– 17
Between 18–19
and 19– 20
Between 5– 6
and 6– 7
Between 2– 3
and 3– 4
