Proface AGP3500 - 10.4 DIO HMI" User Manual
Page 10

10

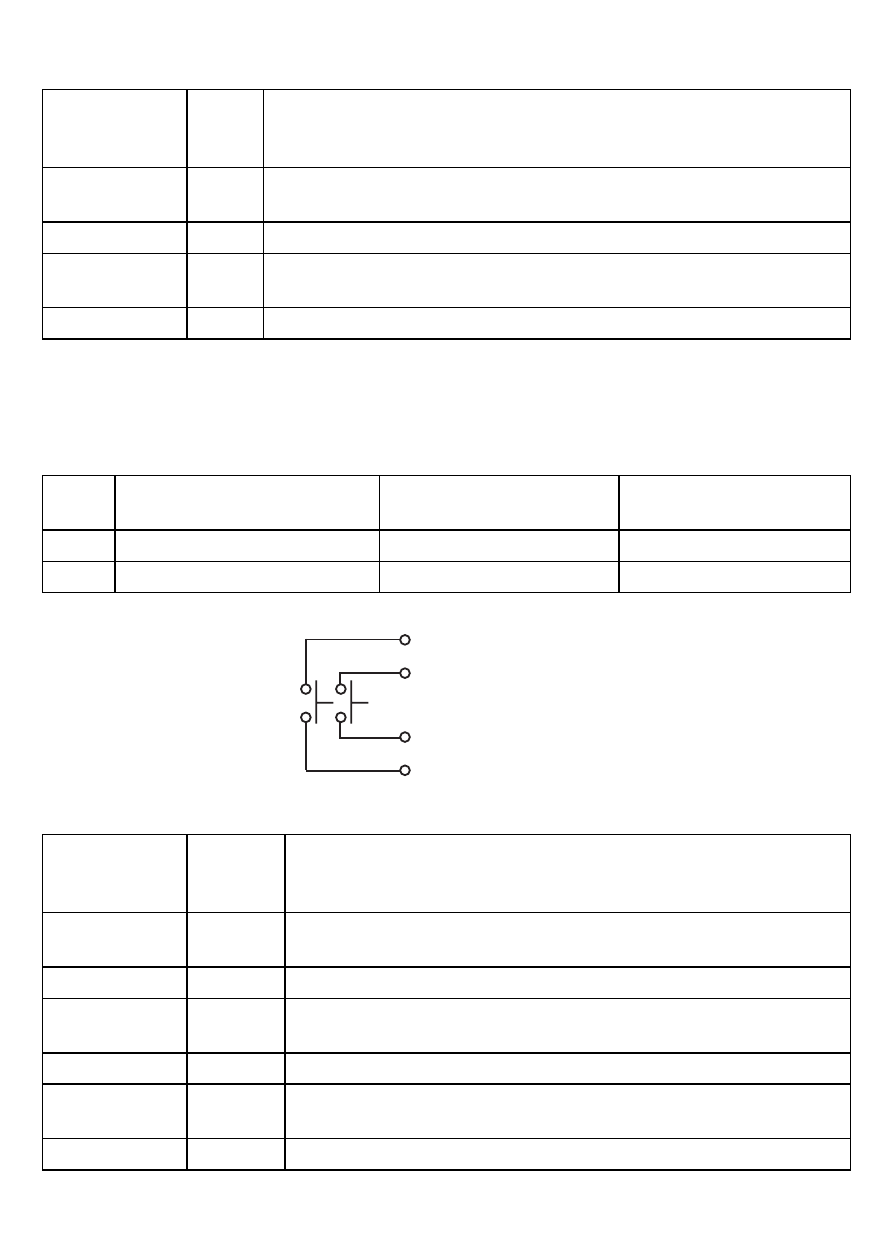

3-Position Enable Switch Output Interface
The switch provides three positions: A position where the switch is not pressed (released), a
position where the switch is pressed to the intermediate position, and a position where the switch
is pressed to the innermost position (fully pressed).
When the switch is set at each position, ON/OFF status of the ENB0 to ENB1 signals are as
follows:
Emergency Switch Output Interface
Cable Color/
Marking Color,
Number
Signal
Name
Description
Blue/Black 2
ENB0A
3-position enable switch 0A (a-contact:normally open)
Rating: DC30V, 700 mA (Minimum applicable load: DC3V, 5mA)
Blue/Black 3
ENB0B 3-position enable switch 0B (a-contact:normally open)
Blue/None
ENB1A
3-position enable switch 1A (a-contact:normally open)
Rating: DC30V, 700 mA (Minimum applicable load: DC3V, 5mA)
Blue/Black 1
ENB1B 3-position enable switch 1B (a-contact:normally open)
The switch is not pressed.
The switch is pressed to
the intermediate position.
The switch is pressed to
the innermost position.
*1
*1 The contact is OFF when the switch is fully depressed and then returned to the released position.
ENB0
0 (OFF)
1 (ON)
0 (OFF)
ENB1
0 (OFF)
1 (ON)
0 (OFF)
Cable Color/
Marking Color,
Number
Signal
Name
Description
Purple/Black 2
EMG0A
Emergency switch 0A (a-contact:normally open)
Rating: DC30 V, 1 A (Minimum applicable load: DC5 V, 1 mA)
Purple/White 3
EMG0B
Emergency switch 0B (a-contact:normally open)
Purple/Black 1
EMG1A
Emergency switch 1A (b-contact:normally closed)
Rating: DC30 V, 1 A (Minimum applicable load: DC5 V, 1 mA)
Purple/White 2
EMG1B
Emergency switch 1B (b-contact:normally closed)
Purple/None
EMG2A
Emergency switch 2A (b-contact:normally closed)
Rating: DC30 V, 1 A (Minimum applicable load: DC5 V, 1 mA)
Purple/White 1
EMG2B
Emergency switch 2B (b-contact:normally closed)
ENB1A
ENB0A
ENB0B
ENB1B
