Identifying SES elements
The SES Monitor page found by clicking on Details
in the Enclosure Status section of the Health and
Status Monitor page shows SES information about
specific enclosures (see
Exhibit 6.3-4 ). If you would
like information about specific drives of the RAID
groups or enclosures of which they are members, use
the
Identify SES Elements page.
1 If you are not already in the ExpressNAV
Storage Manager, type the IP address of your
appliance in a standard browser. On the splash
screen, click
Enter Here. In the box provided,
type in your user name and password, and click
OK.
2 The Health and Status Monitor page appears.
Click on the Diagnostics menu on the left hand
side of the screen.
3 Click on SES Elements.
4 Click on Next. The Identify SES Elements
page appears ( Exhibit 6.3-2 ).
5 Select any drive for information about that
drive.
6 After selecting a drive, click on one of the
buttons to identify drives, enclosures or RAID
groups associated with that drive. LEDs for the
devices light up when selected.
7 Select Stop All to stop the LEDs from lighting.

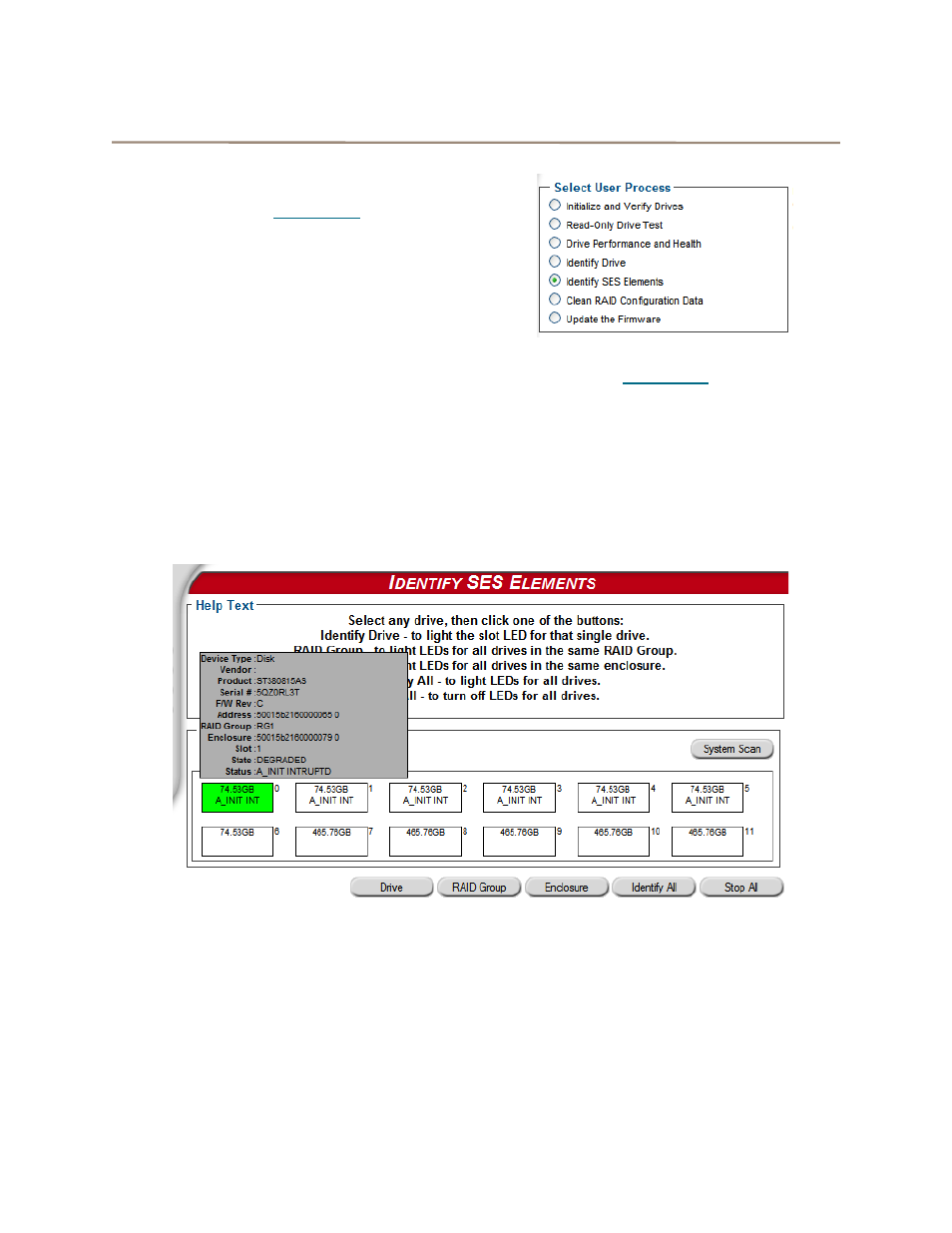

Exhibit 6.3-2 The Identify SES Elements page.
