8

LEDs on the front are:
A green power LED
A bicolor Ready/Fault LED: lighted green to
indicate ready, lighted yellow to show a faulted
condition, and off indicates not ready.

Fibre Channel ports: bicolor LED indicates FC
speed. If it is off, speed is 1-Gb; if it is green, 2-Gb, and
yellow indicates 4-Gb FC. A separate green LED
indicates activity if it is lit, no activity if it is off.

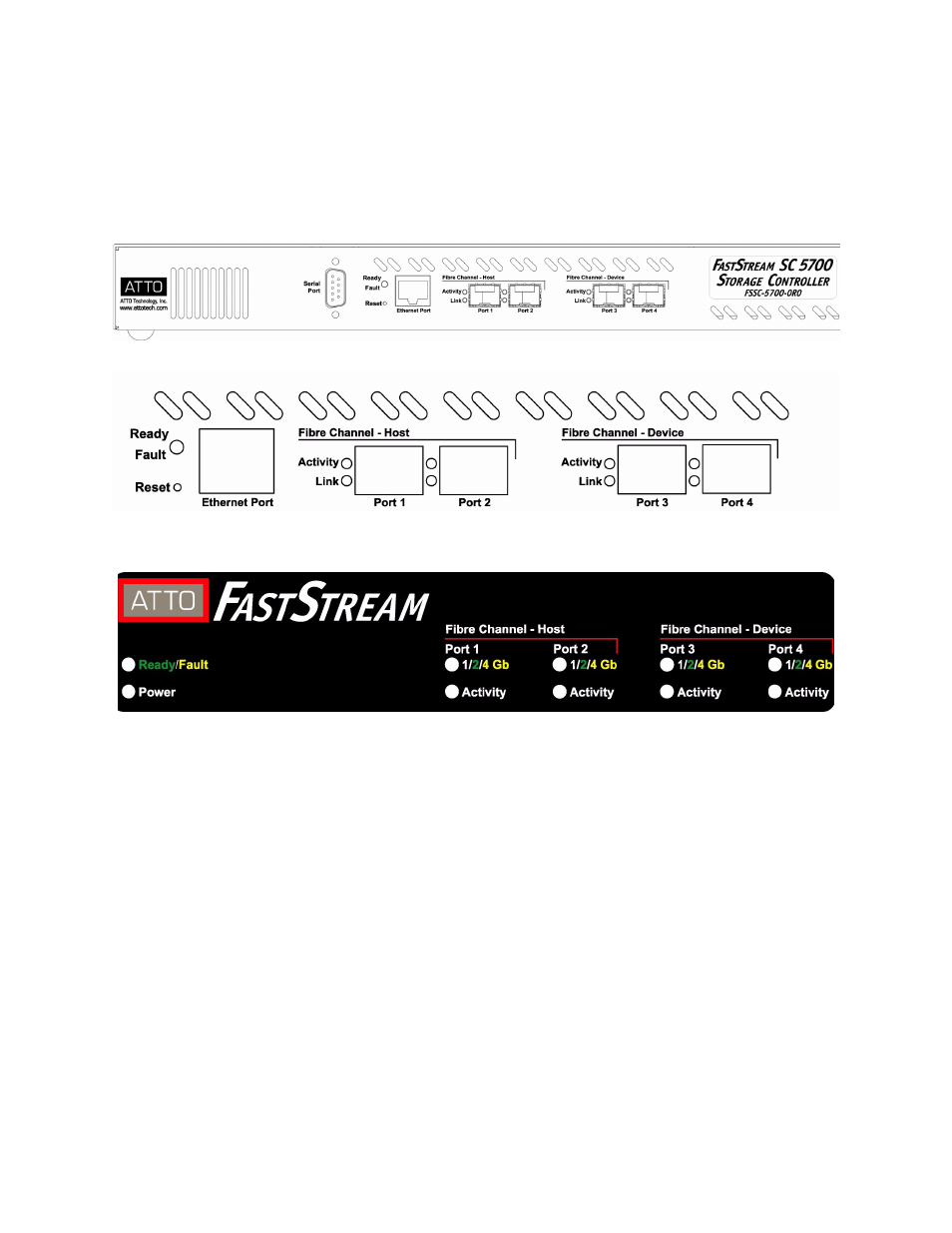

Exhibit 1.3-1 The connector side of the FastStream 5700

Exhibit 1.3-2 Detail of the connector side of the FastStream.5700

Exhibit 1.3-3 Detail of the FastStream.faceplate.
