ASSEMBLY

EAGLE 15 02/08

Assembly Section 3-9

ASSEMBL

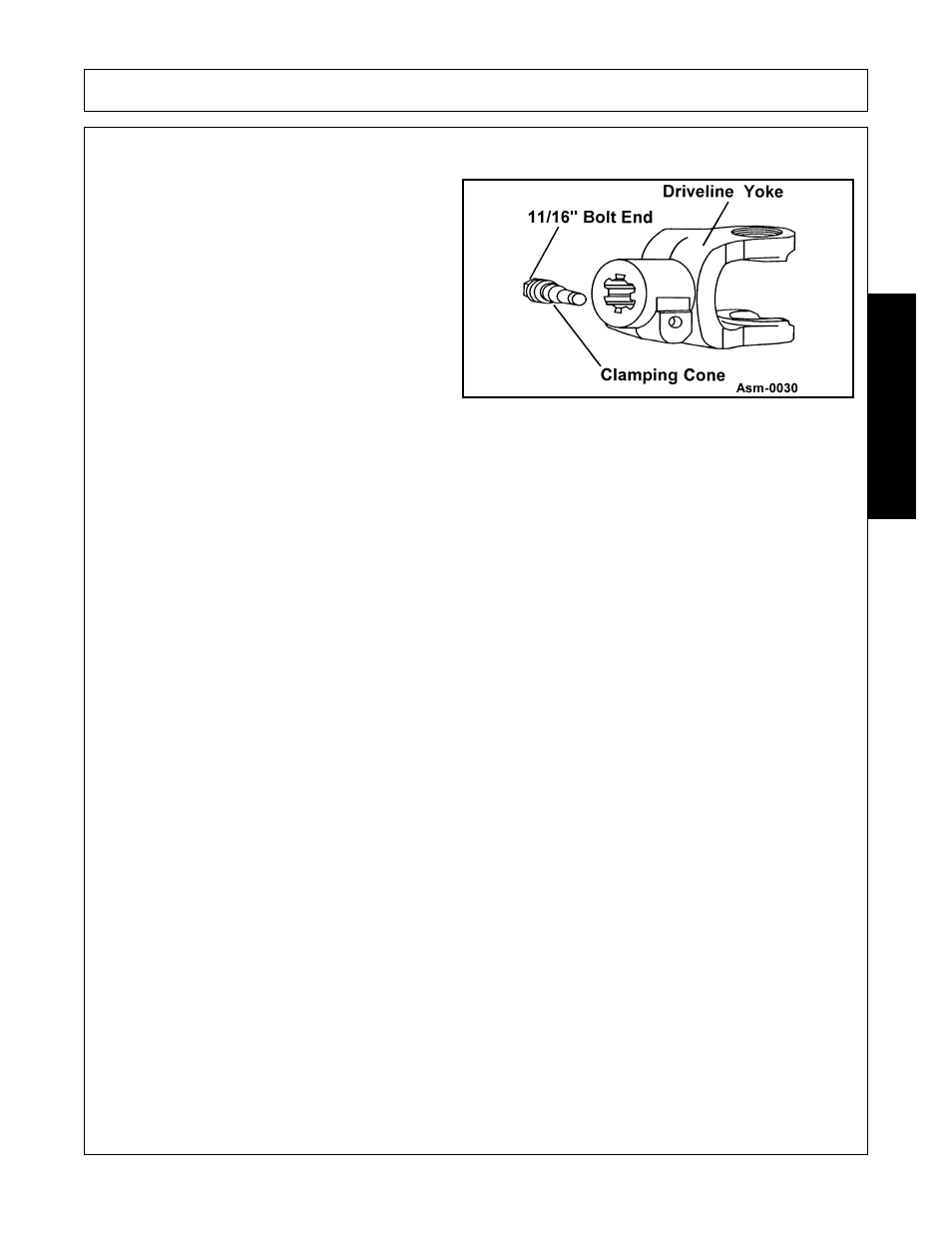

Driveline Clamp Cone Yoke Operating Instructions

Loosen the yoke clamp cone with a 11/16” (17mm)

wrench and remove the cone from yoke. Slide yoke

onto the shaft and align hole for clamping cone with

annular groove of gearbox shaft. Reinstall cone

and tighten (75 lb-ft torque). Push and pull the

driveline to ensure it is securely attached to the

shaft. Regularly check the driveline yoke to ensure

a tight connection. To remove the yoke, remove the

connecting cone and pull yoke off the shaft. If the

cone cannot be easily removed by hand, drive it out

from the other side using a hammer and punch.

NOTE: The clamping cone is serviced only as a complete assembly. Do not attempt to disassemble the

clamping cone.

Mower is now assembled and ready for pre-delivery checks.
