MAINTENANCE
EAGLE 15 03/09 Maintenance Section 5-8
©2009 Alamo Group Inc.
MAINTENANCE
CAT IV WING DRIVELINE SHIELDS

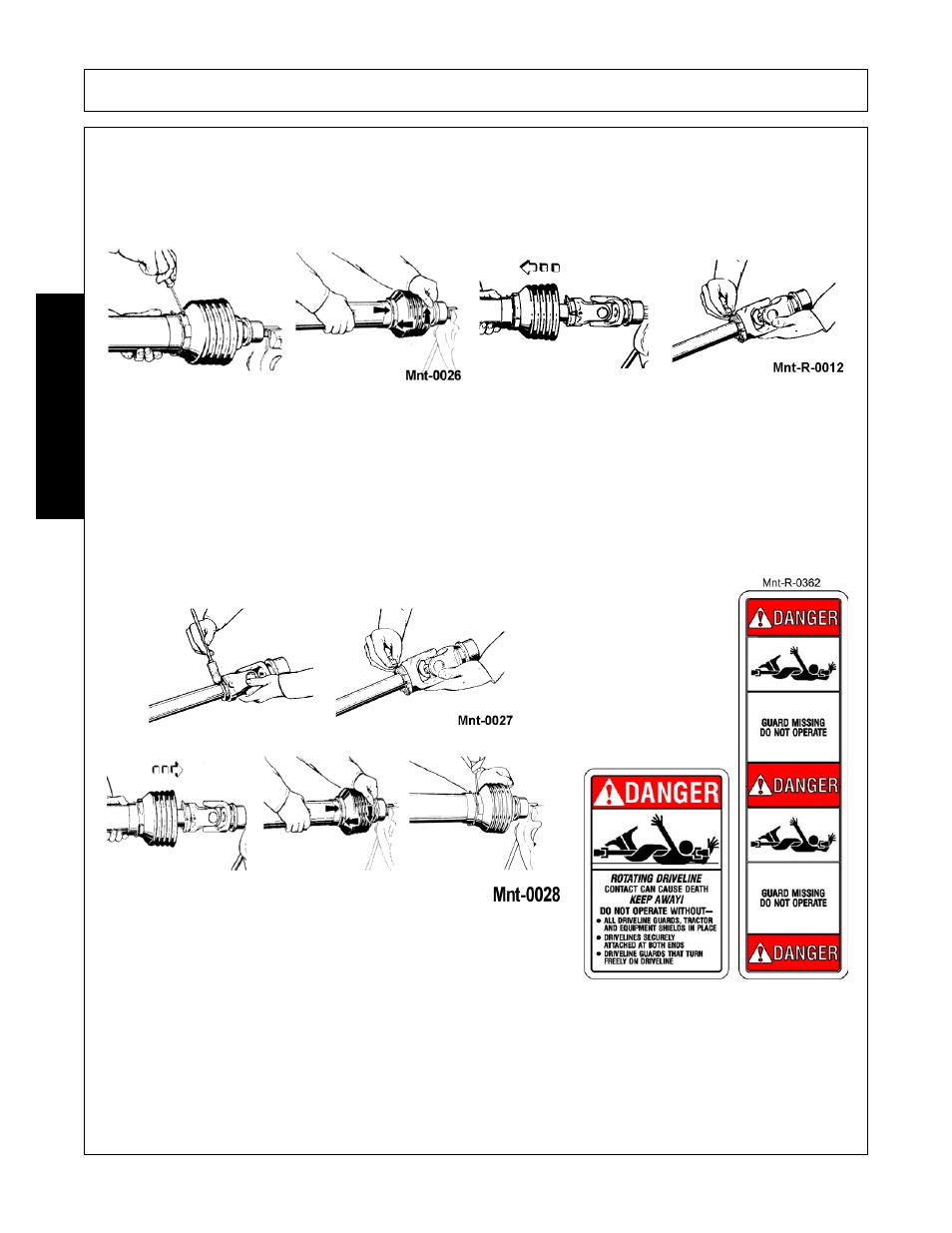

To remove the main inner driveline shield, Remove the locking screws. Align the bearing tabs with the cone
pockets. FIGURE Mnt-0026. Remove the half-guard and remove the bearing ring. FIGURE Mnt-R-0012.
Inspect the driveline shield for worn areas or cracks. If the shield has any dents or cracks, replace the Shield.
While the Shields are off, examine the Driveline for signs of abnormal wear, bent or twisted shafts, or cracks in
the shafts or tubes. Check to see that the Drivelines telescope easily. If the Drivelines do not telescope
properly or show signs of abnormal wear, the shaft should be repaired or replaced.
To assemble the main inner driveline shield, grease the yoke groove and inner profile tube. Attach the bearing
ring in groove with recesses facing profile tube. FIGURE Mnt-0027. Slide on the half shield. Turn the cone until
it engages correctly. Install locking screws. FIGURE Mnt-0028.
IMPORTANT! Check
that Guard Missing
decal on steel under
inner guard and
Rotating Driveline
Decal are firmly
affixed, undamaged
and readable. If not,
replace.
