Maintenance – Alamo Flex-Wing Mechanical Level Lift Rotary Cutter/Shredder EAGLE 10/15 User Manual
Page 170
MAINTENANCE
EAGLE 15 03/09
Maintenance Section 5-26
©2009 Alamo Group Inc.
MAINTENANCE

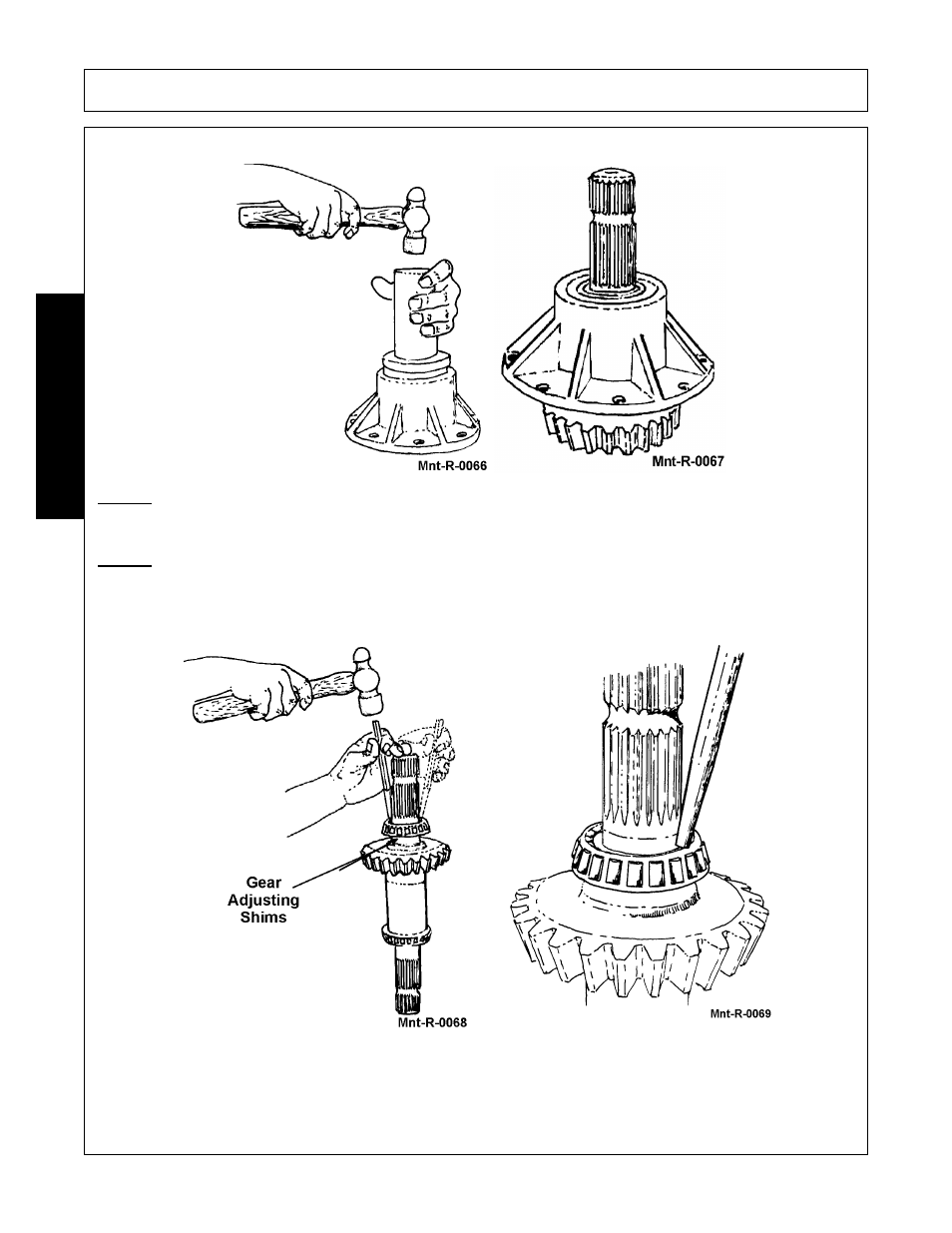

STEP 5
Install the Bearing Race into the Main Gearbox Housing.
STEP 6
Install Bearing on the Shaft. On the opposite end of the Shaft, install the Gear Spacer and the Gear. Install
one.012” and one.020" thick Gear Adjusting Shim and install the Bearing. FIGURE Mnt-R-0068 & Mnt-R-
0069.
Gear Adjusting Shims
