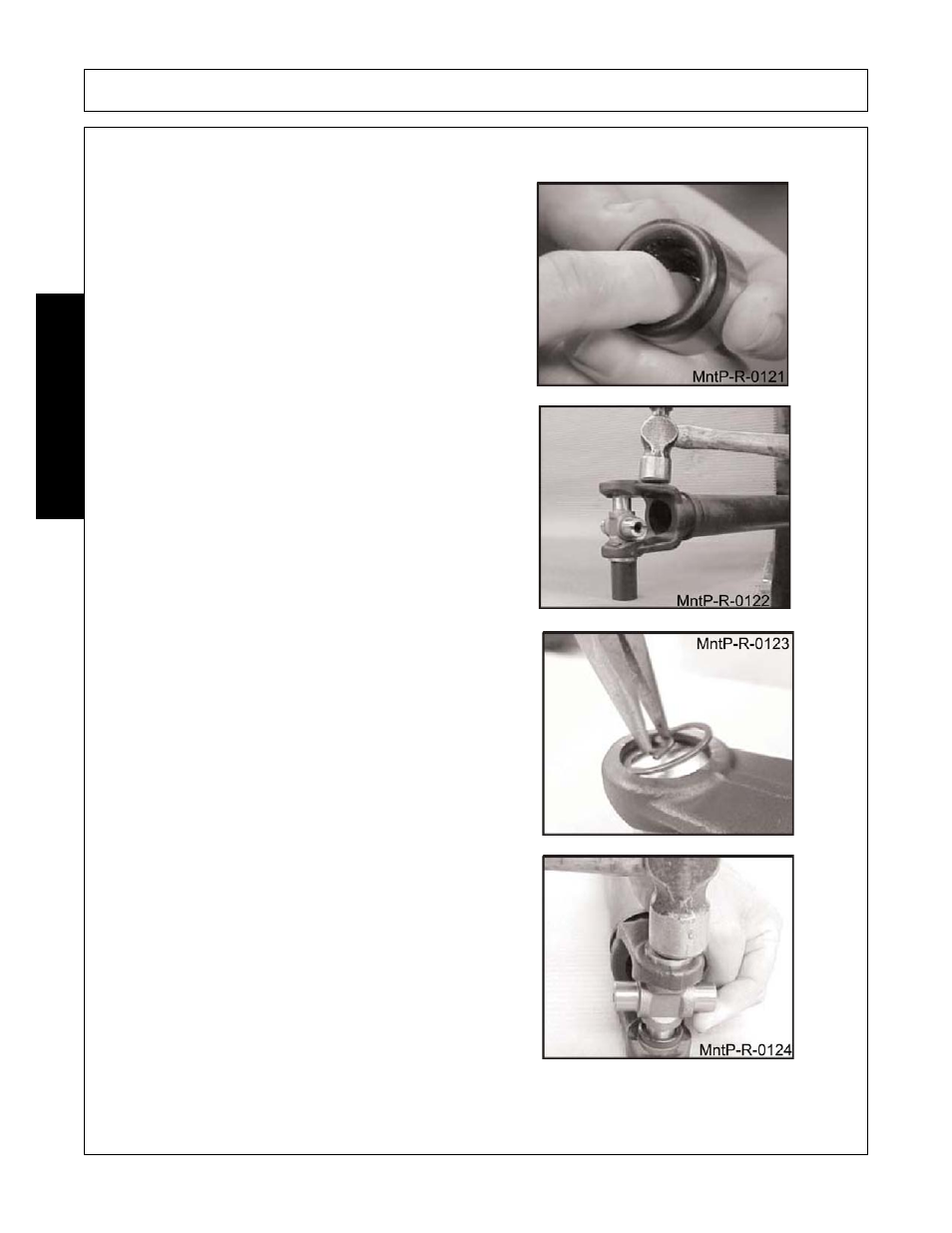

TO REASSEMBLE UNIVERSAL JOINT

1.

Smear grease into bearings and check for

dirt.

CAUTION! Make sure all needle bearings are

seated properly.

2.

Insert cup and cross. Drive in with spacer.

3.

Insert snap ring

4.

Insert second cup and hold cross into cup.

Drive cup flush with arm.
