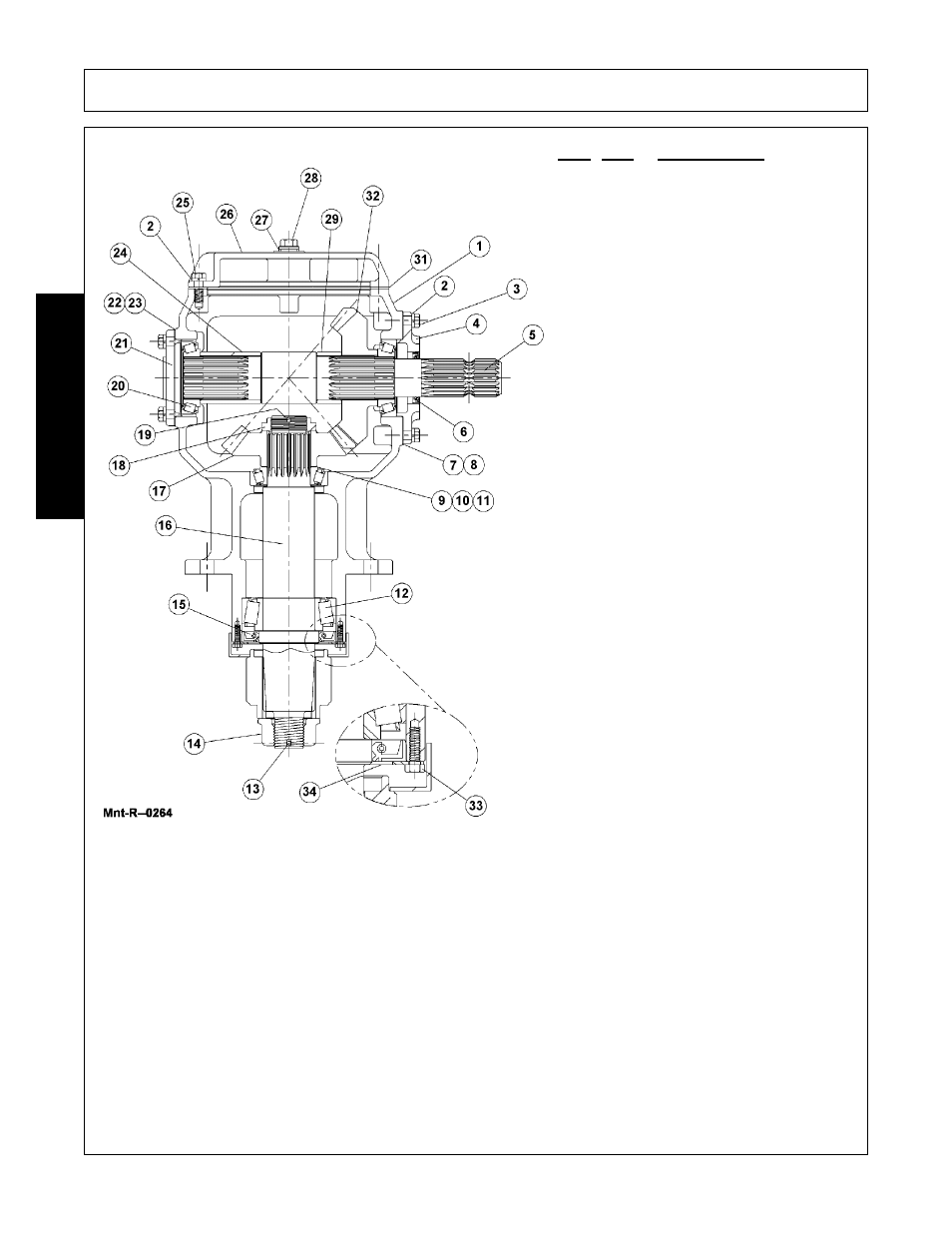

MAINTENANCE

EAGLE 15 03/09

Maintenance Section 5-30

©2009 Alamo Group Inc.

MAINTENANCE

TEM QTY

DESCRIPTION

1.

1

Housing

2.

18

Lockwasher

3.

12

Hex Head Bolt

4.

1 Input

Cap

5.

1

Input Cap

6.

1

Input Oil Seal

7.

VAR

Input Cap Gasket .10

8.

VAR

Input Cap Gasket .25

9.

VAR

Shim .30

10.

VAR

Shim .40

11.

VAR

Shim .50

12.

1

Hex Slotted Flanged Nut

13.

1

Cotter Pin

14.

1

Lockwasher

15.

3

Bolt

16.

1

Output Shaft

17.

1

Tooth Pinion

18.

1

Bearing Adjustment Nut

19.

1

Cotter Pin

20.

1

Blank Adjusting Cap

21.

1

Bearing Assembly

22.

VAR

Blank Cap Gasket 0.10

23.

VAR

Blank Cap Gasket 0.25

24.

1

Bearing Spacer

25.

6

Hex Head Plug

26.

1

Inspection Cover Cap

27.

2

Sealing Washer

28.

2

Hex Head Plug

29.

1

Input Shaft Spacer

30.

1

Dip Stick Breather Assy.

31.

1

Inspection Cover Gasket

32.

1

Tooth Gear

33.

2

Hex Head Bolt

1.1Output Seal Plate
