MAINTENANCE

EAGLE 15 03/09

Maintenance Section 5-22

MAINTENANCE

STEP 3

Laying the Hub Assembly on its side, tap the Gear end of the Output Shaft into the Gear and Bearing. Once the

Shaft has cleared the Bearing, it can be fully removed from the Hub Assembly. The remaining Bearings and

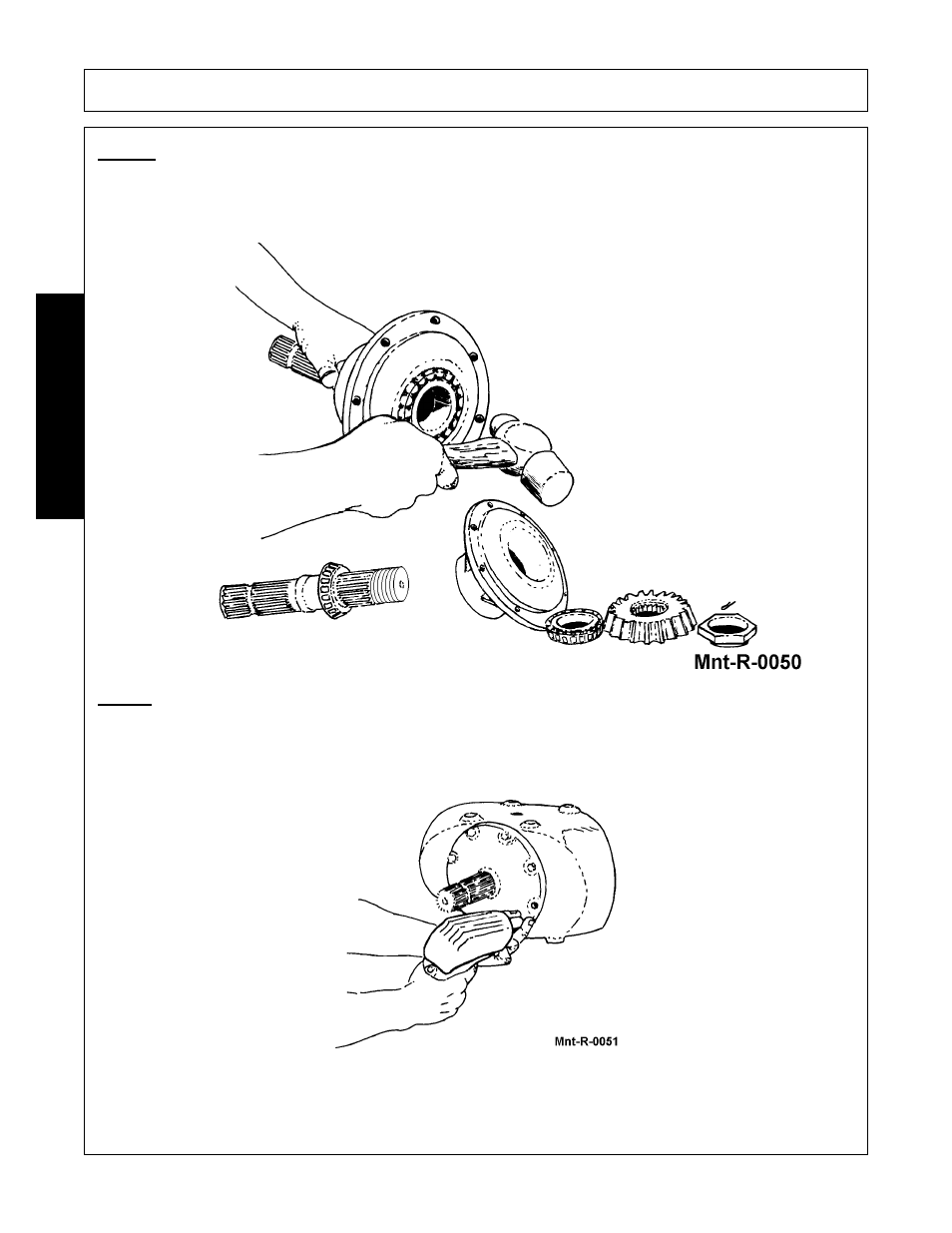

Bearing Cups can be removed by conventional means. FIGURE Mnt-R-0050

STEP 4

Remove all eight Bolts from Input Cap using a 14mm Socket. Then using a Hammer, tap the Output end of the

Input Shaft. This will loosen the input Cap and allow the removal of the complete Input Shaft Assembly.

FIGURE Mnt-R-0051.
