To disassemble universal joint, Remove all snap rings, To disassemble universal joint -11 – Alamo Flex-Wing Mechanical Level Lift Rotary Cutter/Shredder EAGLE 10/15 User Manual
Page 155: Maintenance
MAINTENANCE
EAGLE 15 03/09
Maintenance Section 5-11
©2009 Alamo Group Inc.
MAINTENANCE

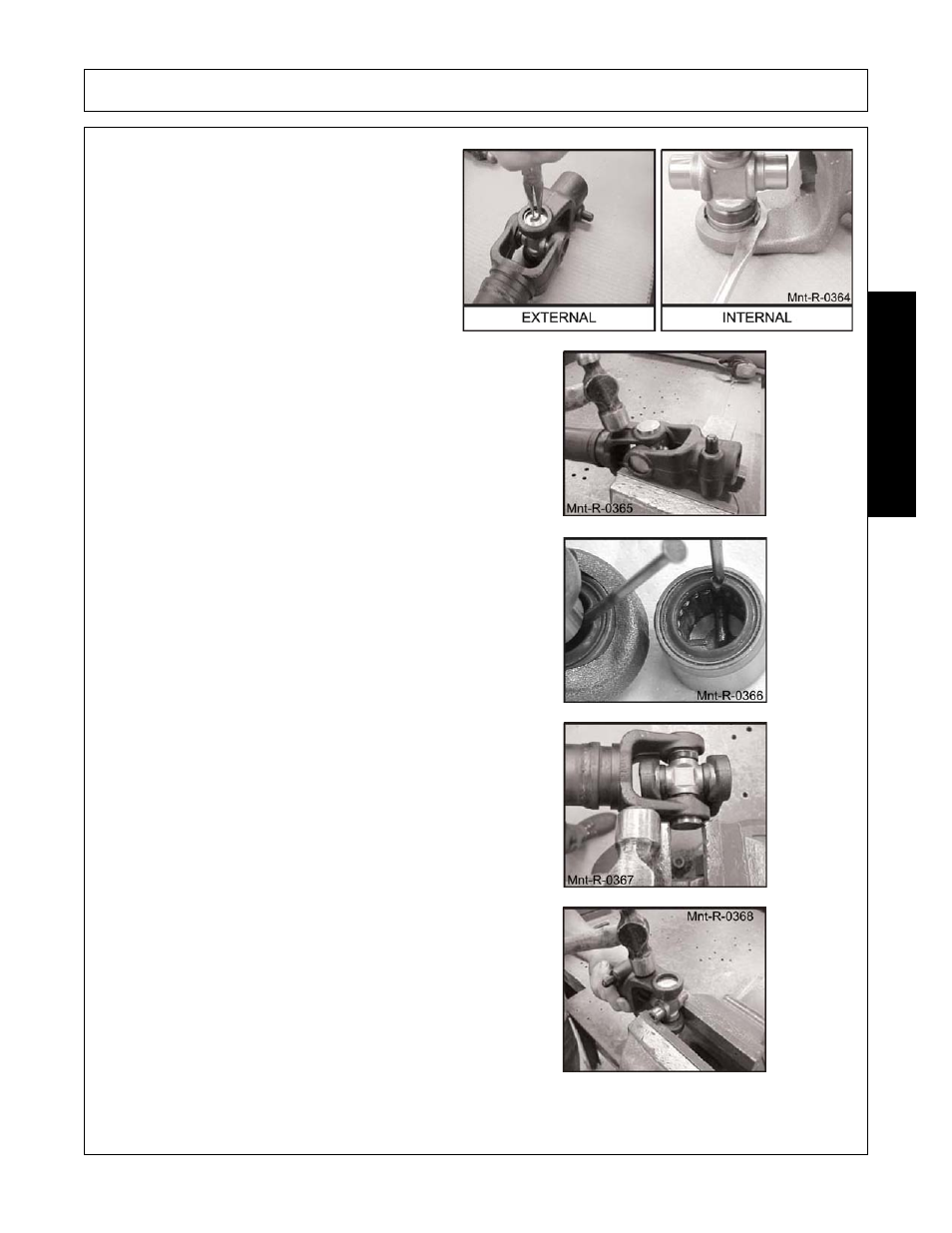

TO DISASSEMBLE UNIVERSAL
JOINT
1.
Remove all snap rings.
2.
Position joint in loose vice, strike top arm of
unsupported yoke to drive the top cup up.
Repeat on opposite side.
3.
If you cannot grip the loosened cap per
Step 4, use a pointed tool to tip a needle
them repeat Step 2.
4.
Grip loosened cup in vise, strike yoke arm
to drive yoke off cup. Repeat on opposite
cup.
5.
Support cross in loose vise and strike yoke
arm. Repeat Step 4 to remove remaining
two cups.
