MAINTENANCE

EAGLE 15 03/09

Maintenance Section 5-9

MAINTENANCE

WING DRIVELINE CAT V

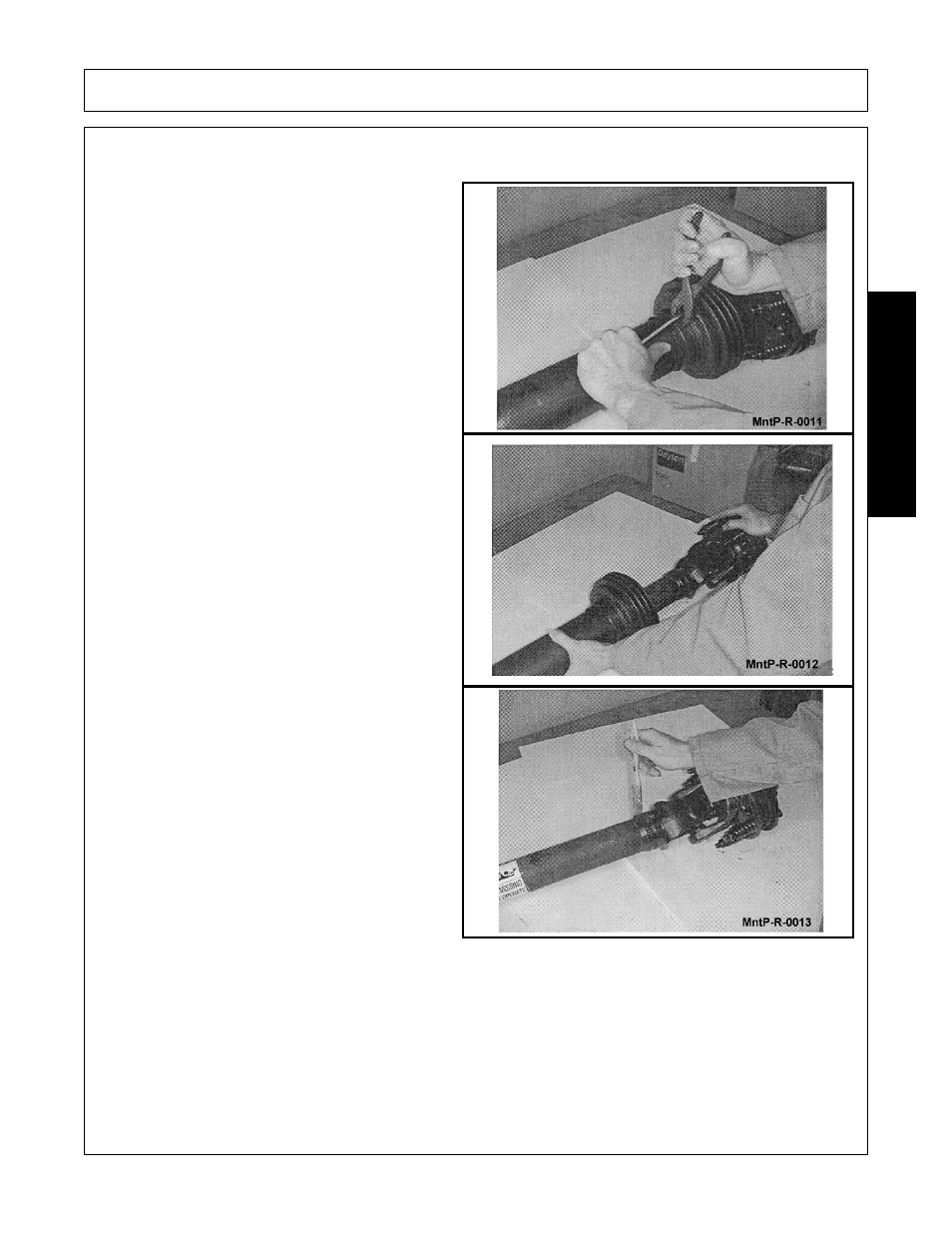

Figure MntP-R-0011) Remove the two shield
bearings per half shaft by prying the head of the
bearings up with a screwdriver, and pulling them out
with pliers.

Figure MntP-R-0012) Grasp the Yoke and shield
tube and pull shaft from the shield.

Figure MntP-R-0013) Grease the shield bearing
grooves on the yokes and the inner telescoping
member before assembly.
