MAINTENANCE
EAGLE 15 03/09 Maintenance Section 5-29
©2009 Alamo Group Inc.
MAINTENANCE
STEP 11
Install the second Hub Cap assembly on the Main Housing. Check the amount of backlash present between its
Gear and the Gear on the Input Shaft. The amount of backlash between these two Gears needs to be set to
the same amount that was set on the first Gear mesh. Add or subtract Shims as required. Once this adjustment
is made, remove the Hub Cap and apply sealer as before, then reinstall on Housing. Install all eight bolts and

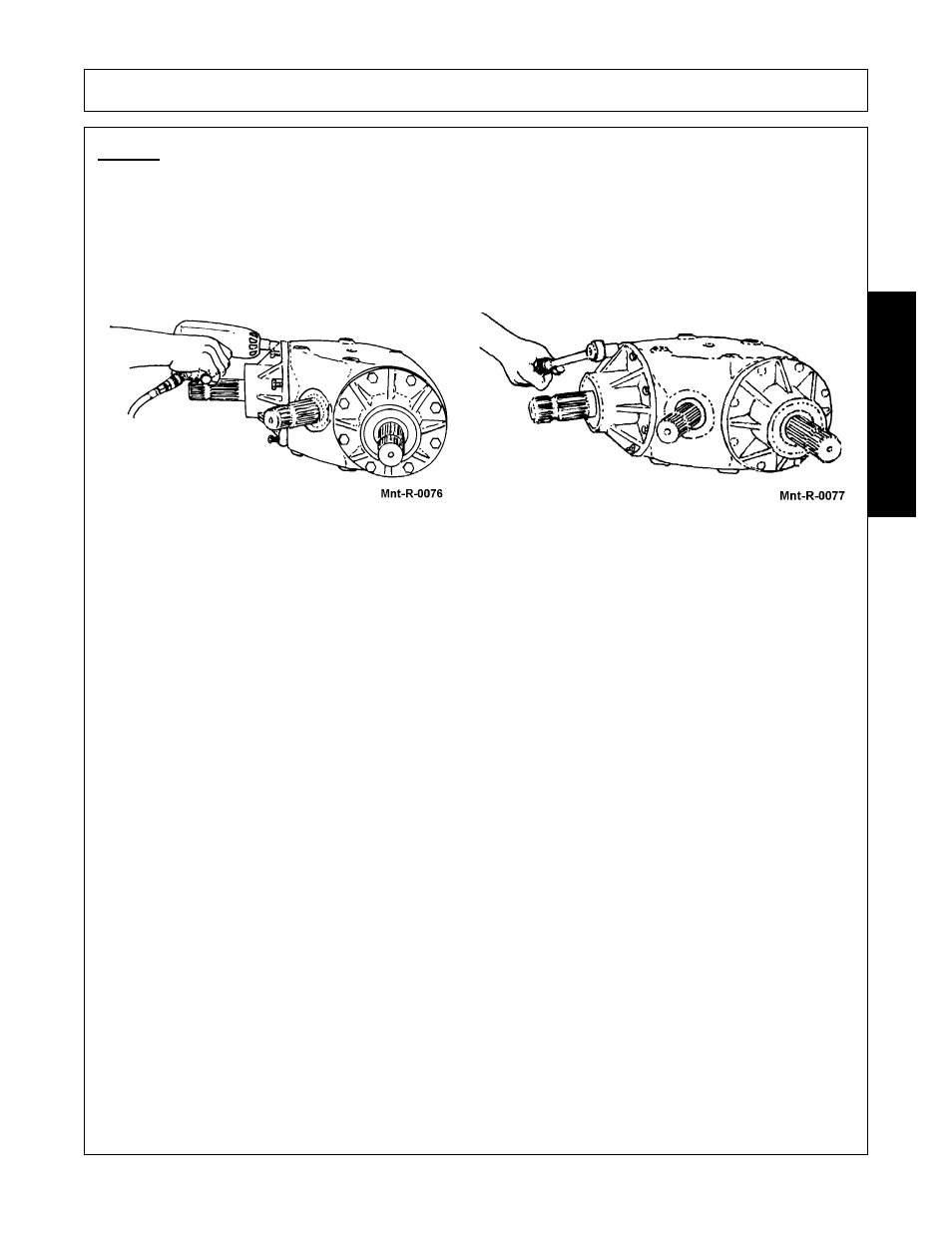

tighten to 31 to 34 foot pound. FIGURE Mnt-R-0076 & Mnt-R-0077.
The assembly should now be filled with a good grade of NLGI 000 Grease.
