MAINTENANCE
EAGLE 15 03/09 Maintenance Section 5-28
©2009 Alamo Group Inc.
MAINTENANCE

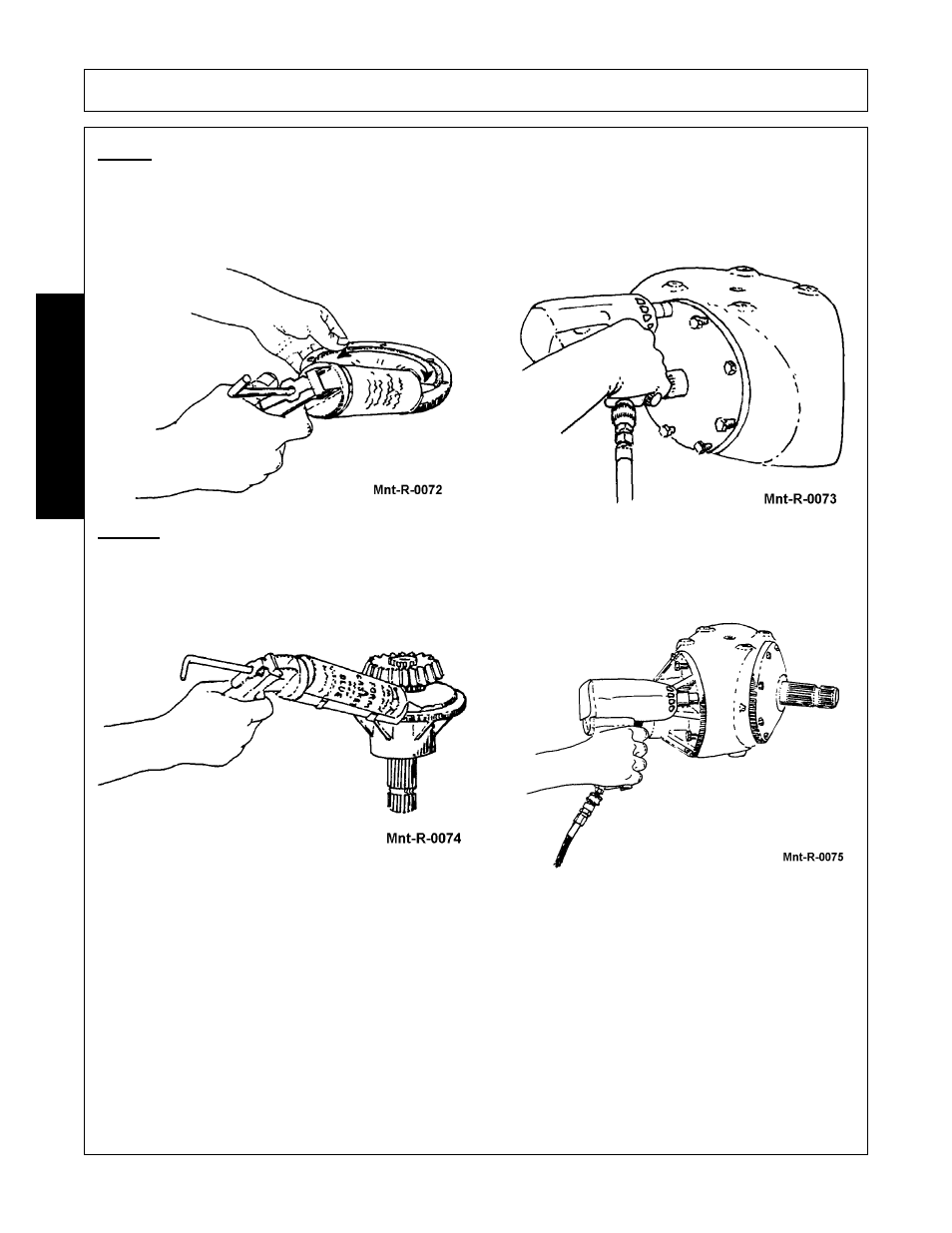

STEP 9
After Gear adjustment is complete the Input Cap and the Gaskets should be removed from the Main Housing.
The Gaskets should be installed on the Input Cap. Apply a small bead of Silicon on the Gaskets and the flange
of the Input Cap. FIGURE Mnt-R-0072. Place the Input Cap back on the Main Housing and install all eight
Bolts and tighten them to a torque of 31 to 34 fast pounds. FIGURE Mnt-R-0073.
STEP 10
Remove the Hub Cap and Shims Install the Gaskets onto the Hub Caps. Apply a small bead of Silicon on the
Gaskets and around the flange of the Hub Cap. FIGURE Mnt-R-0074. Install the Hub Cap assembly back on
Main Housing and install all eight Bolts. Tighten to a torque of 31 to 34 foot pounds. FIGURE Mnt-R-0075.
