ASSEMBLY
EAGLE 15 02/08 Assembly Section 3-4
©2009 Alamo Group Inc.
ASSEMBL
Y

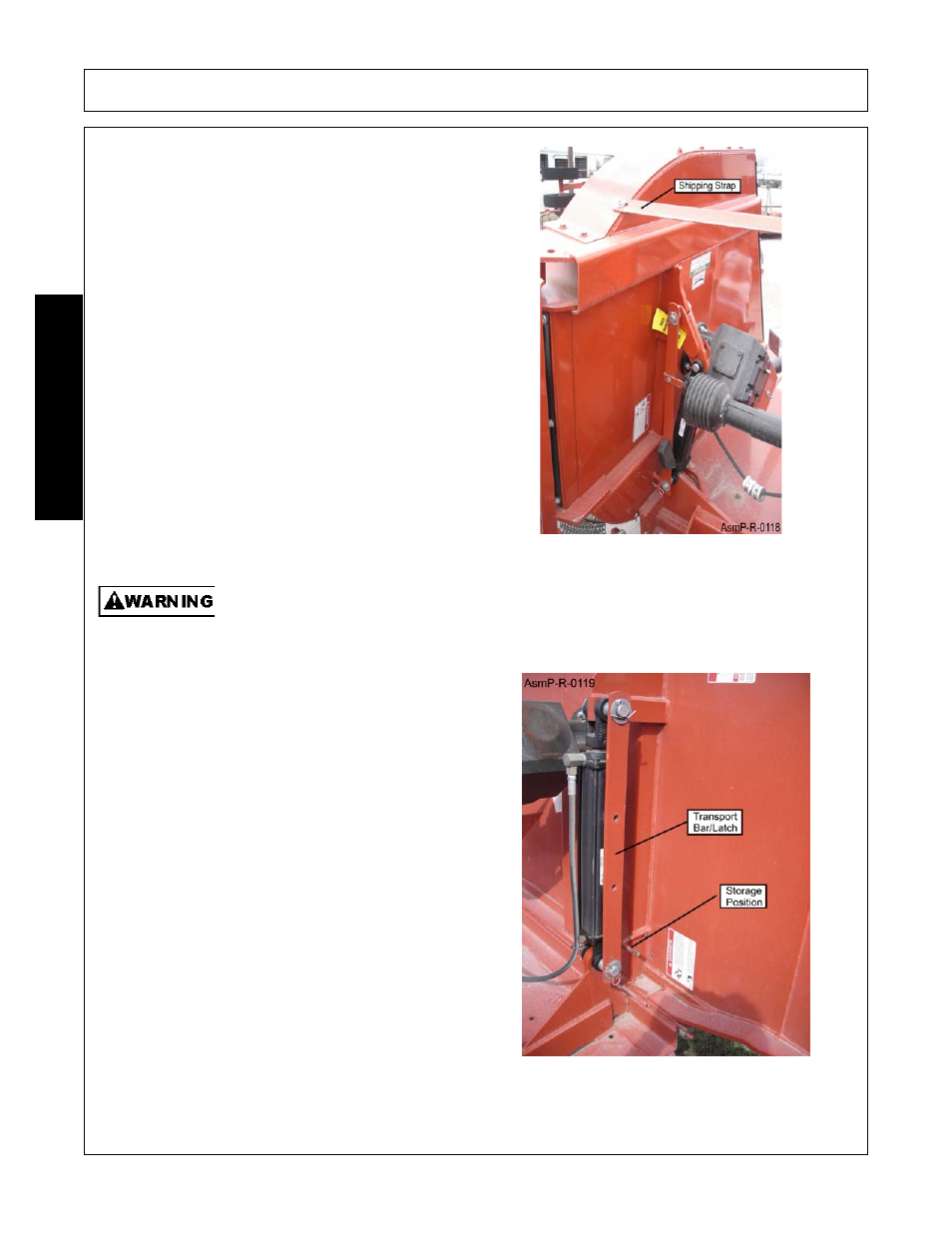

9. Make sure the wing Transport Bars/Latches are
locked in the position to hold the wings vertical
before removing shipping strap. Figure AsmP-
R-0118
10. Stand between the wings of the implement and
remove nuts holding the shipping strap in place and remove strap.
Do not stand outside of the wing to remove the shipping strap, if the wing fell it could kill you.
Make sure no bystanders are under the wing or in the area where the wing could fall.
Reinstall nut and flatwasher to retain side skirt.
11. Filling the cylinders with oil should raise the
wings slightly and loosen the wing Transport
Bars/Latches retaining pin. NOTE: DO NOT
release the wing Transport Bar/Latch if there is
a force on the pin. If there is a force holding the
Transport Bar/Latch in place, use the tractor
hydraulic control levers while in the tractor seat
to raise the wings until the force is relieved.
Release the Transport Bar/Latch and secure in
the storage location. Figure AsmP-R-0119
12. From the tractor seat use the tractor hydraulic
control levers to lower the wing(s).
