Maintenance – Alamo Flex-Wing Mechanical Level Lift Rotary Cutter/Shredder EAGLE 10/15 User Manual
Page 165
MAINTENANCE
EAGLE 15 03/09
Maintenance Section 5-21
©2009 Alamo Group Inc.
MAINTENANCE

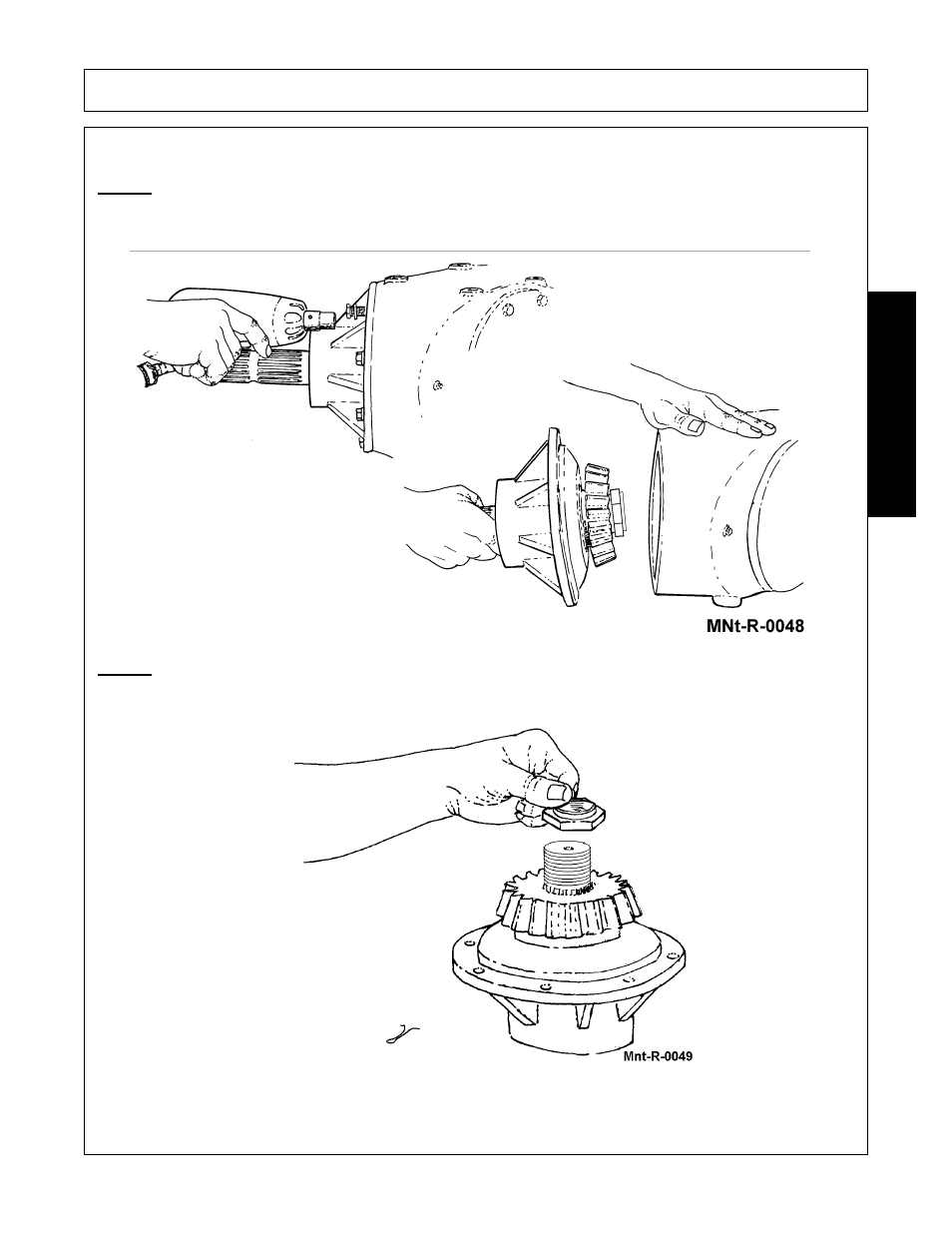

DISASSEMBLY OF DIVIDER GEARBOX (Trained Dealer Personnel Only)
STEP 1
Remove all eight of the M10 Bolts from both Cap Hubs, using a 14mm socket. FIGURE Mnt-R-0048. Remove
the Hub Assemblies and gaskets from the Main Housing. FIGURE MNT-R-0048
STEP 2
With the Hub Assembly Secured, remove nut at gear. FIGURE Mnt-R-0049.
