MAINTENANCE
EAGLE 15 03/09 Maintenance Section 5-7
©2009 Alamo Group Inc.
MAINTENANCE
MAIN CV DRIVELINE SAFETY SHIELD

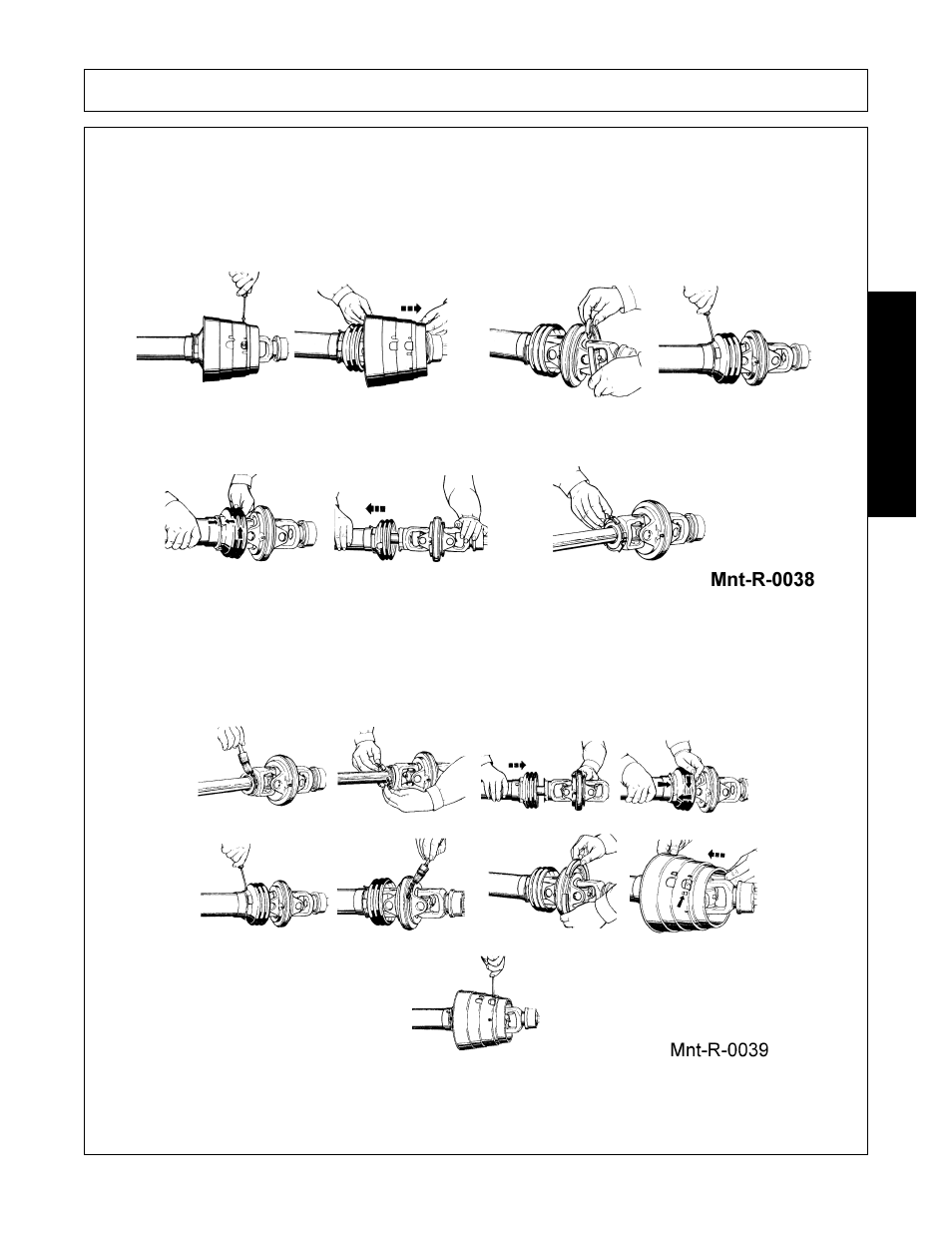

To remove the outer CV cone, remove the locking screws from shield cone. Remove cone over yoke. Figure
Mnt-R-0038 Remove bearing ring and remove the locking screws from inner shield cone. Figure Mnt-R-
0038. Turn inner cone to assembly position and remove half shield. Remove bearing ring. FIGURE MNT-R-
0038.
To assemble outer CV driveline, grease yoke groove and inner profile tube. Attach bearing ring on groove with
recesses facing profile tube. FIGURE MNT-R-0039. Slide on half shield with cone. Turn cone until it engages
correctly. FIGURE MNT-R-0039. Tighten locking screws. Grease bearing groove in double yoke. FIGURE
MNT-R-0039. Insert bearing ring. Slide guard cone for double yoke over cam from the connecting end. Make
sure holes for screws are visible. FIGURE MNT-R-0039. Tighten locking screws. FIGURE MNT-R-0039.
