AFL2-08A-N26

P a g e 64

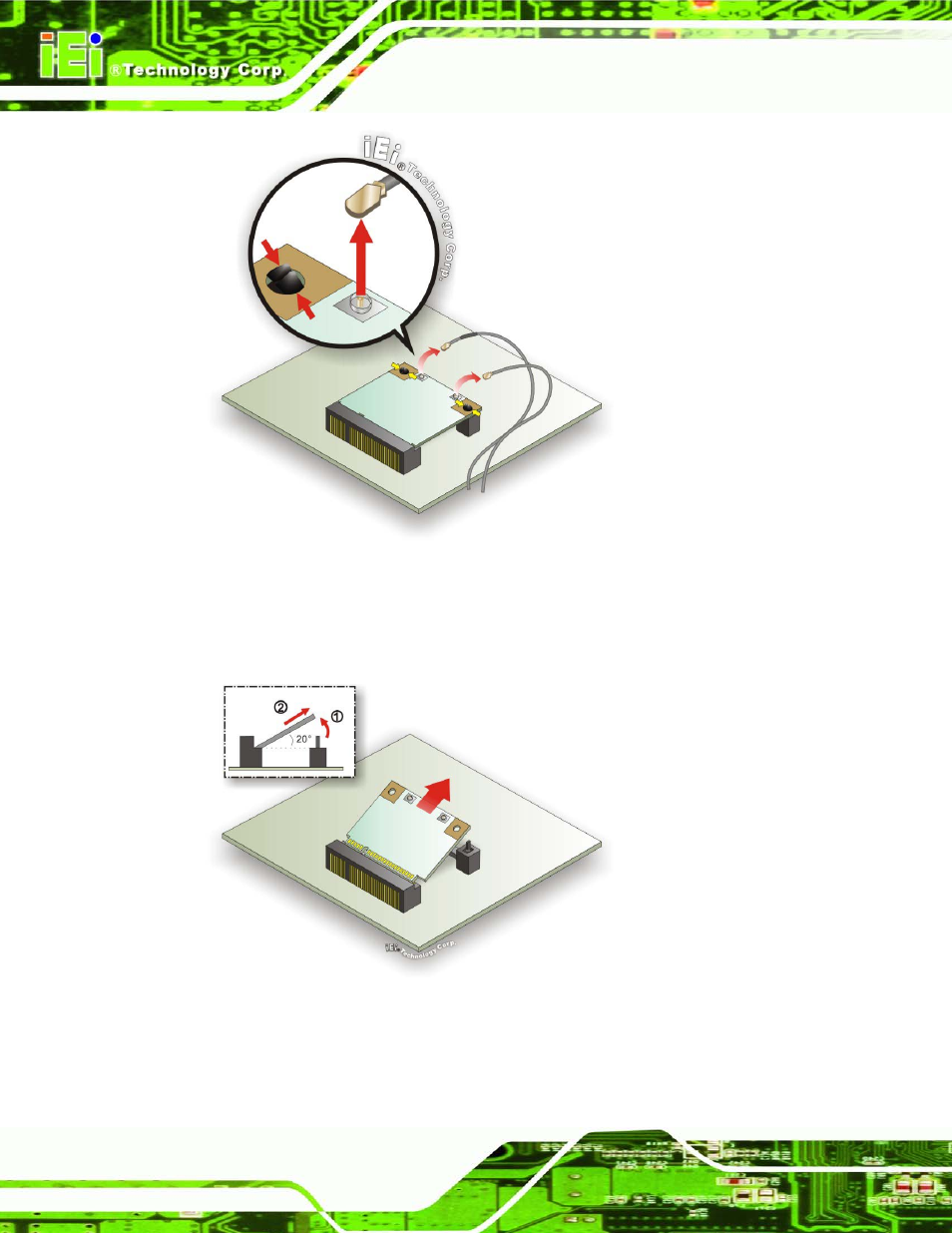

Figure 6-5: Releasing the WLAN Card

S te p 7:

Grasp the WLAN card by the edges and carefully pull it out of the socket (Figure

6-6).

Figure 6-6: Removing the WLAN card

S te p 8:

Install a new WLAN card by inserting the card into the slot at an angle
