AFL2-08A-N26

P a g e 53

5.3 Exte rn a l In te rfa c e P a n e l Co n n e c to rs

The figures below show all the external interface panel connectors on the system

motherboard.

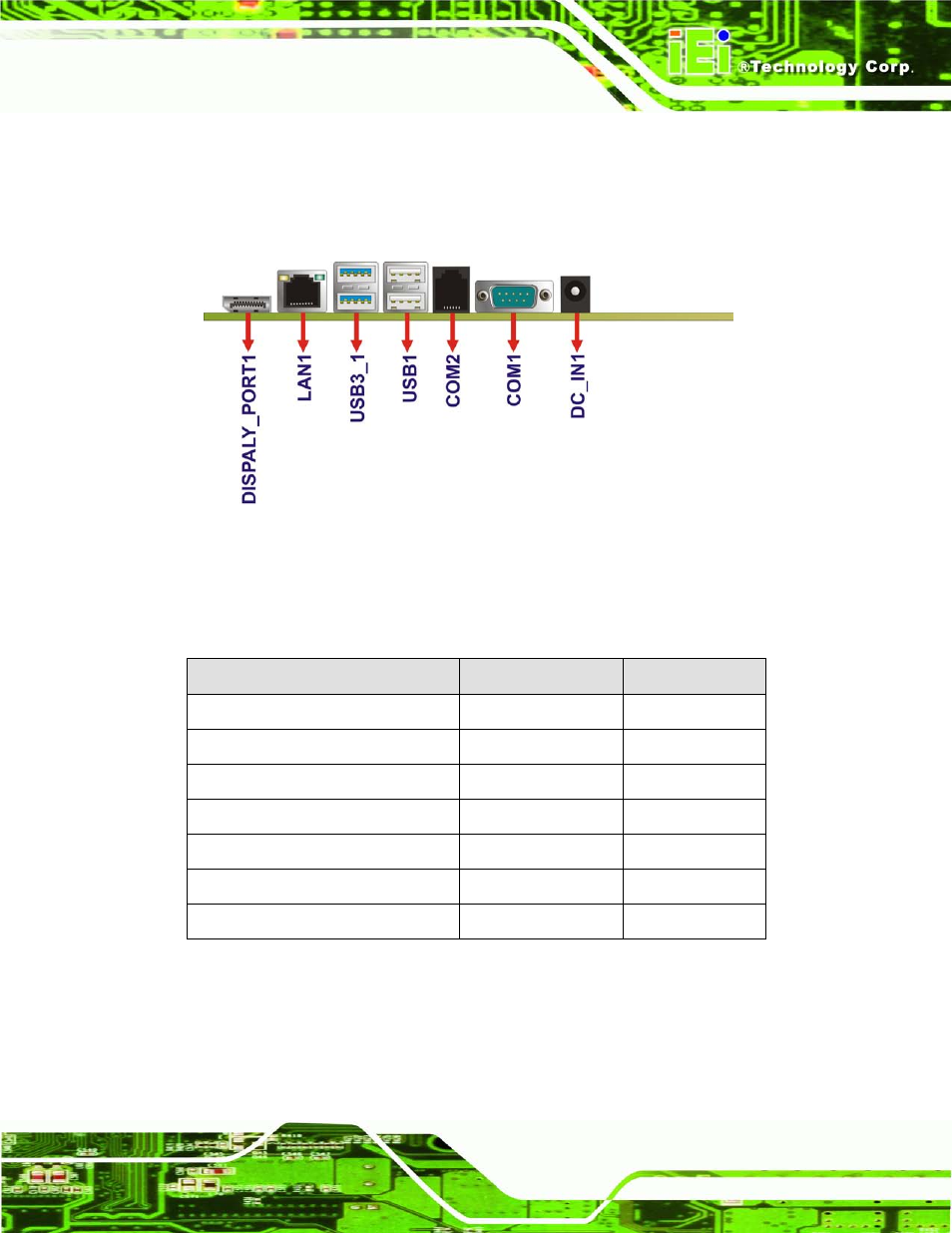

Figure 5-3: External Interface Panel Connectors

The table below shows a list of the external interface panel connectors on the system

motherboard. Pinouts of these connectors can be found in the following sections.

Co n n e c to r

Typ e

La b e l

Display port connector

Display port

DISPLAY_PORT1

Ethernet connector

RJ-45

LAN1

Power connector

Power jack

DC_IN1

RS-232 serial port connector

DB-9

COM1

RS-232 serial port connector

RJ11

COM2

USB 2.0 connectors

USB 2.0 port

USB1

USB 3.0 connectors

USB 3.0 port

USB3_1

Table 5-25: Rear Panel Connectors
