AFL2-08A-N26

P a g e 40

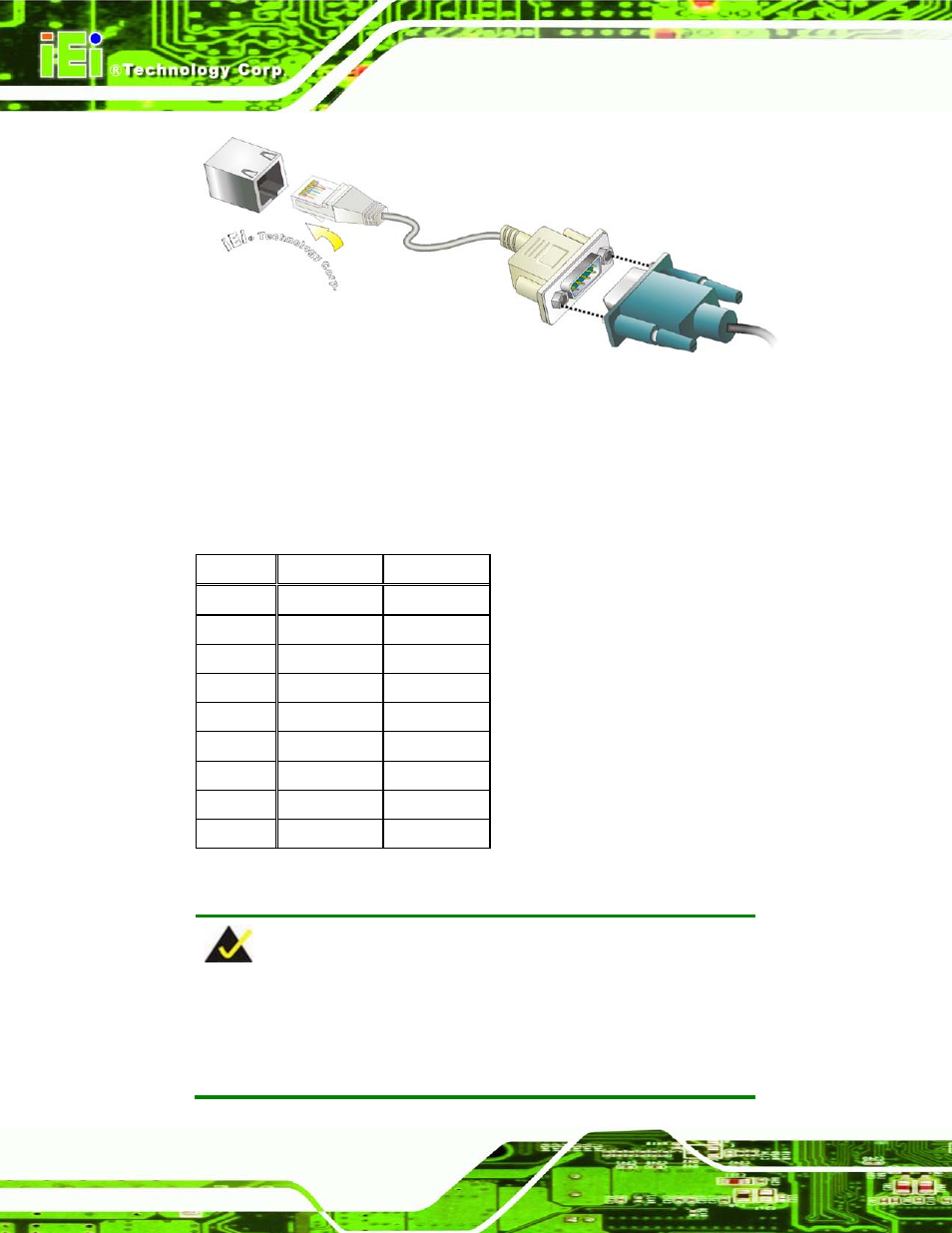

Figure 4-19: RJ-11 Serial Port Connector

S te p 4:

Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

S tep 0:

The DB-9 connector pinouts are listed below.

PIN NO.

RS-422

RS-485

1

RX+

-

2

RX-

-

3

TX+

D+

4

TX-

D-

5

-

-

6

-

-

7

-

-

8

-

-

9

-

-

4.12.5 US B De vic e Co n n e c tio n

NOTE:

User must install the USB 3.0 driver before connecting a USB device to

the system or else the system may not recognize the connected

device.
