AFL2-08A-N26
P a g e 25

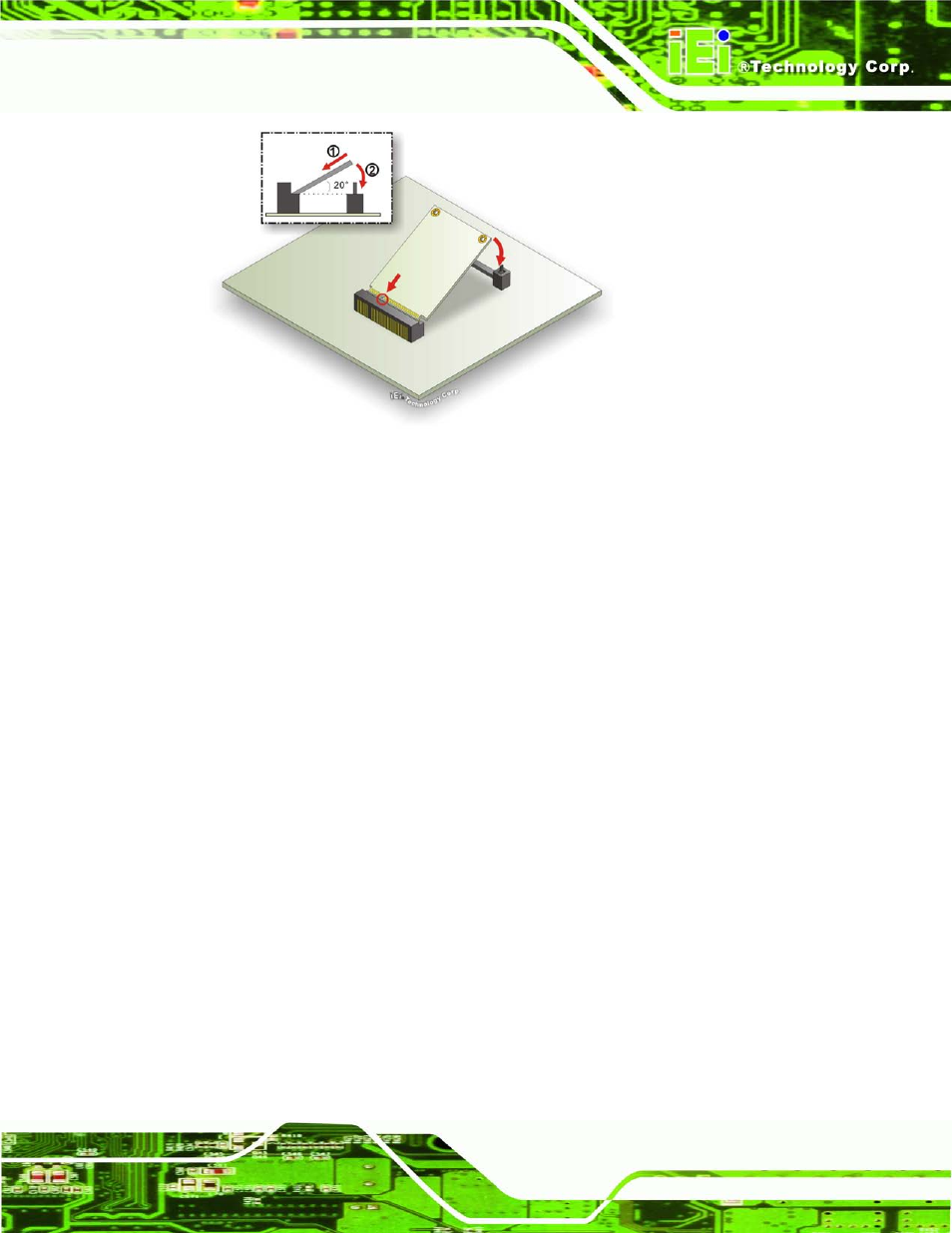

Figure 4-3: PCIe Mini Card Installation
S te p 5: Push down until the card clips into place. Push the other end of the card down
until it clips into place on the plastic connector.
S te p 6: Replace the mSATA cover and secure it using one (1) retention screw.
4.5 RFID Re a d e r (Op tio n a l)
The AFL2-08A-N26 series (selected models only) supports RFID reader function. The
RFID reader is located at the bottom of the screen. An optional Mifare 13.56 MHz or EM
125 KHz RFID reader can be integrated in the system. All the data on the RFID tag can be
easily retrieved or updated through the reader to secure the data transmission process
and increase efficiency for certain identity group.
To install the RFID reader, follow the steps below.
S te p 1: Connect the RFID USB cable to the USB connector on the RFID reader module.
(Figure 4-4)
