AFL2-08A-N26
P a g e 7

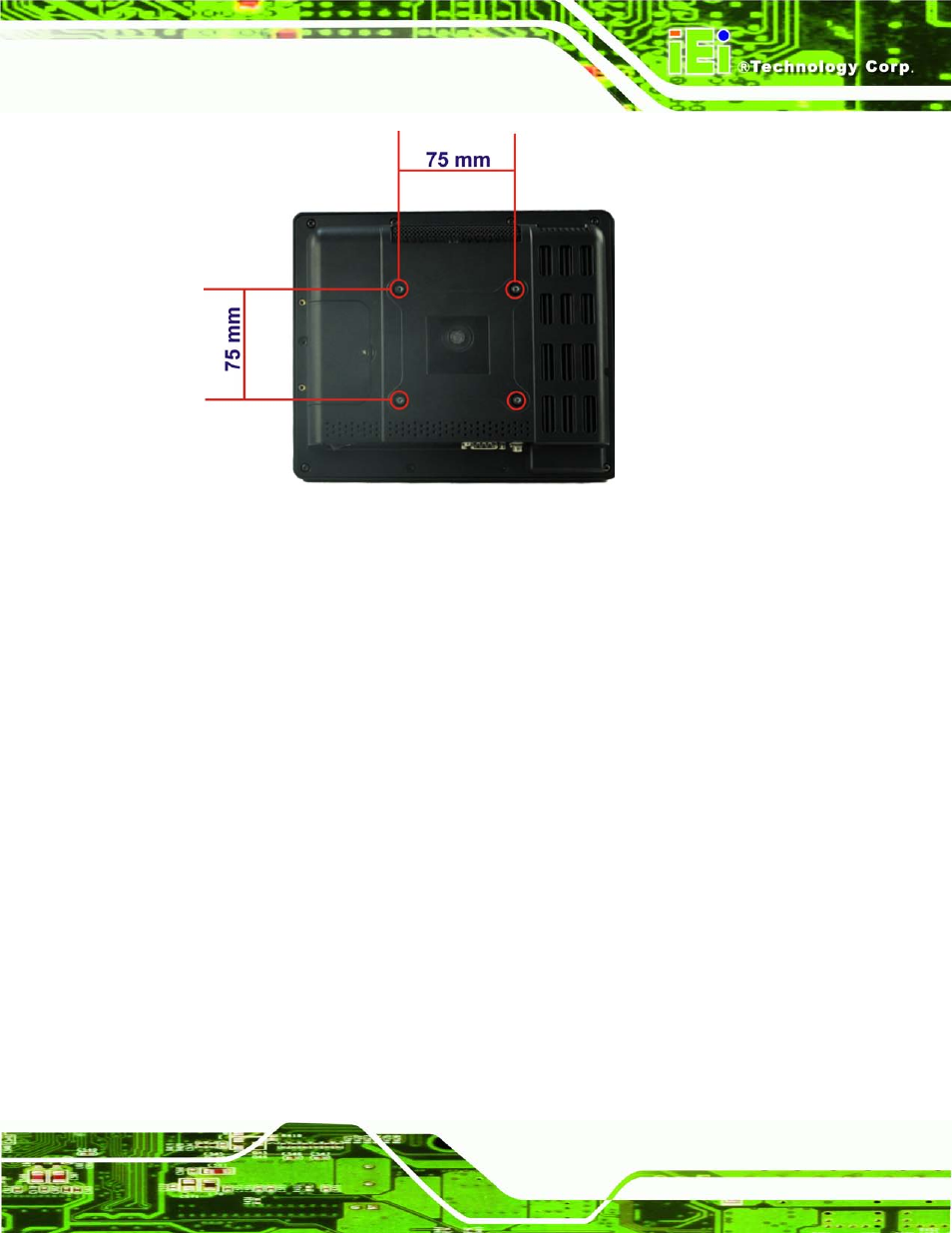

Figure 1-5: AFL2-08A-N26 Rear View
1.2.3 Bo tto m P a n e l
The bottom panel of the AFL2-08A-N26 has the following features (Figure 1-6):
 1 x AT/ATX Switch
 1 × Audio jack (Line out)
 1 x Clear CMOS switch
 1 x 9V ~ 36V DC power jack
 1 x Display port
 6 x Function keys
 1 x Power switch
 1 x Reset button
 1 x RJ-45 LAN connector
 1 x RS-232 connector (DB-9)
 1 x RS-422/485 connector (RJ-11)
 2 x USB 2.0 connectors
 2 x USB 3.0 connectors
