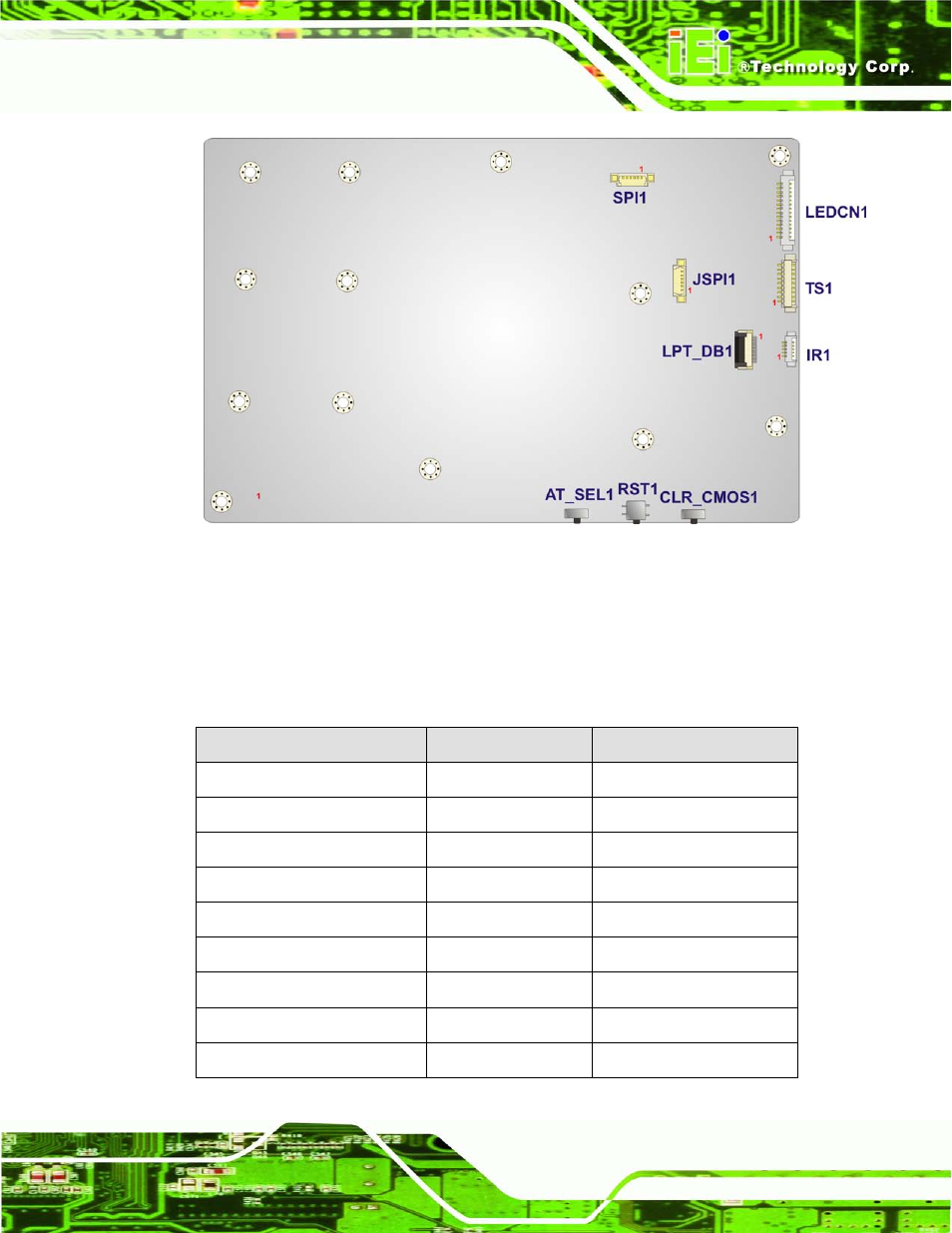

Figure 5-2: System Motherboard (rear)

5.2 In te rn a l P e rip h e ra l Co n n e c to rs

The table below shows a list of the internal peripheral interface connectors on the system

motherboard. Pinouts of these connectors can be found in the following sections.

Co n n e c to r

Typ e

La b e l

Audio connector

10-pin header

AUDIO1

Auto-dimming connector

5-pin wafer

IR1

Battery connector

2-pin wafer

BAT1

BIOS programming connector

6-pin wafer

SPI1

Bluetooth connector

4-pin wafer

BLUETOOTH1

DDR3 SO-DIMM slot

DIMM1

Debug port connector

9-pin wafer

LPC_DEBUG1

EC firmware connector

6-pin wafer

JSPI1

Hot key connector

9-pin wafer

HOT_KEY1
