AFL2-08A-N26

P a g e 26

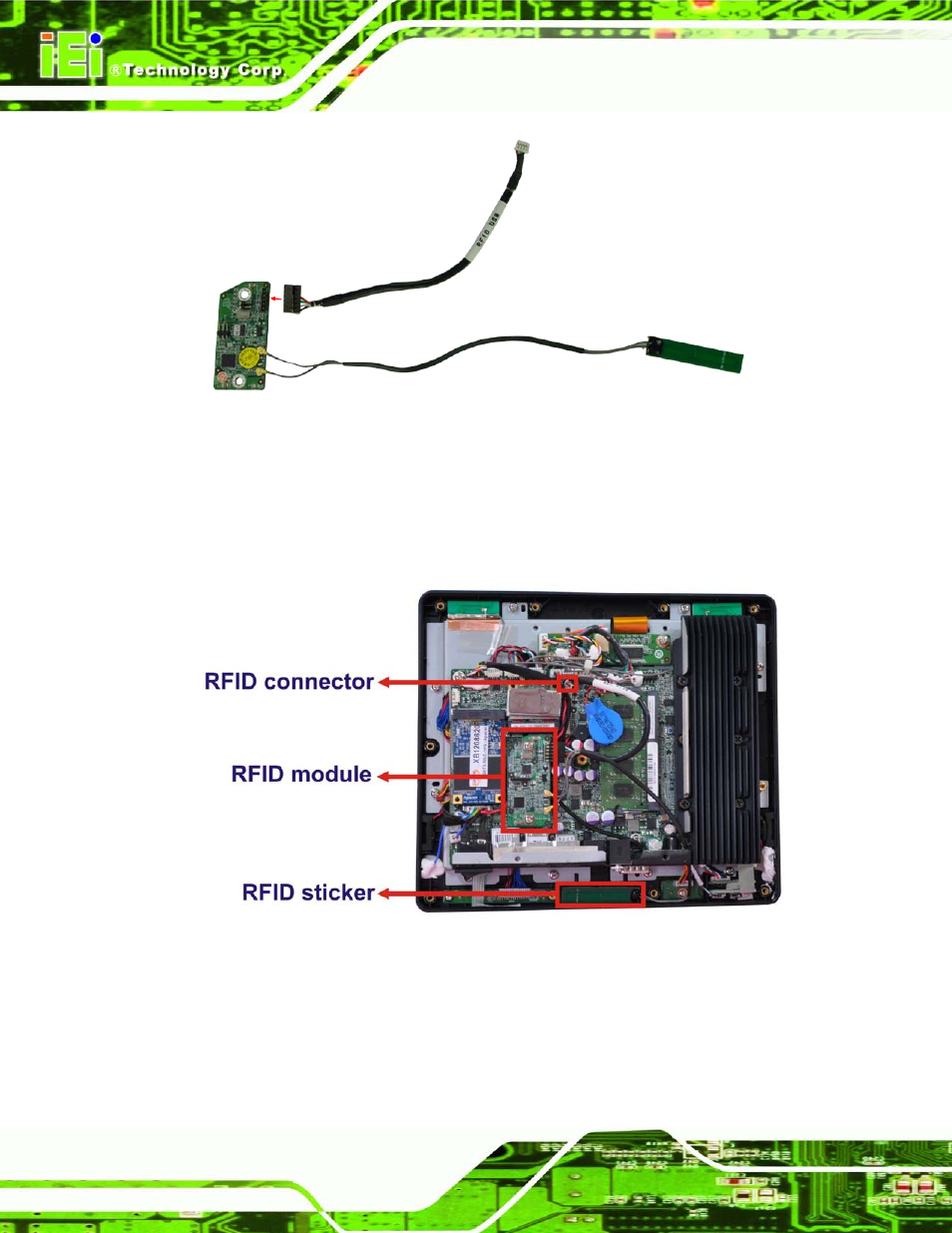

Figure 4-4: Connect the RFID USB cable

S te p 2:

Connect the RFID connector of the RFID USB cable to the RFID connector on

the motherboard (RFID1).

S te p 3:

Attach the sticker of the RFID module to the bottom of the panel.

Figure 4-5: Install the RFID module

S te p 4:

Secure the RFID module to the motherboard using two retention screws on

either side.
