AFL2-08A-N26

P a g e 60

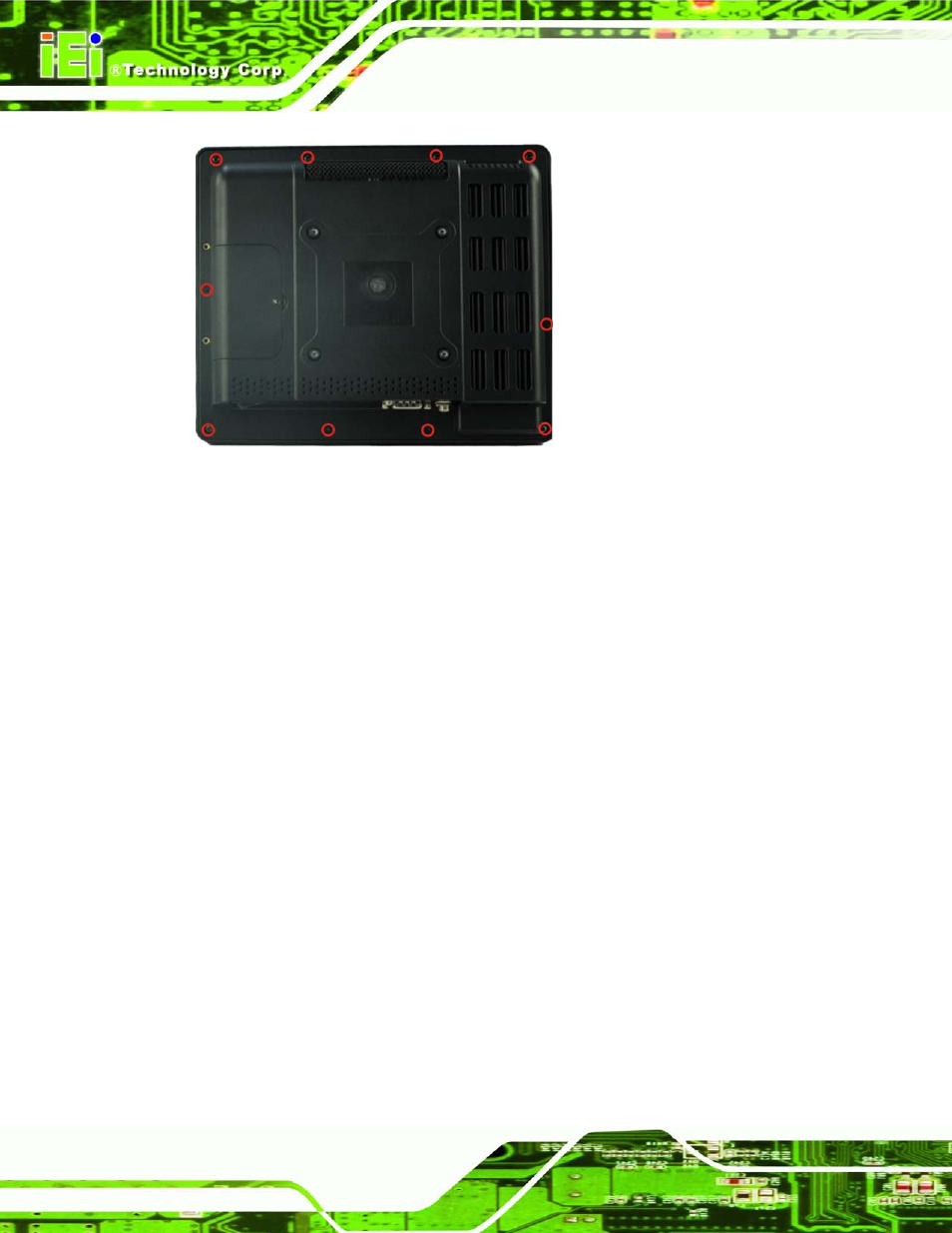

Figure 6-1: Back Cover Retention Screws

S te p 4:

Carefully separate the back cover from the chassis and lift the cover clear of the

device

6.4.2 Re m o vin g th e In te rn a l Alu m in u m Co ve r

To remove the internal aluminum cover, follow the steps below.

S te p 1:

Remove the five (5) retention screws securing the internal aluminum cover to

the chassis (Figure 5-2).
