AFL2-08A-N26

P a g e 15

Revision 2.0 and USB specification Revision 1.1 and can be interfaced to both USB 1.1

and USB 2.0 compliant devices. Only USB 3.0 connectors are compatible with USB 3.0

devices.

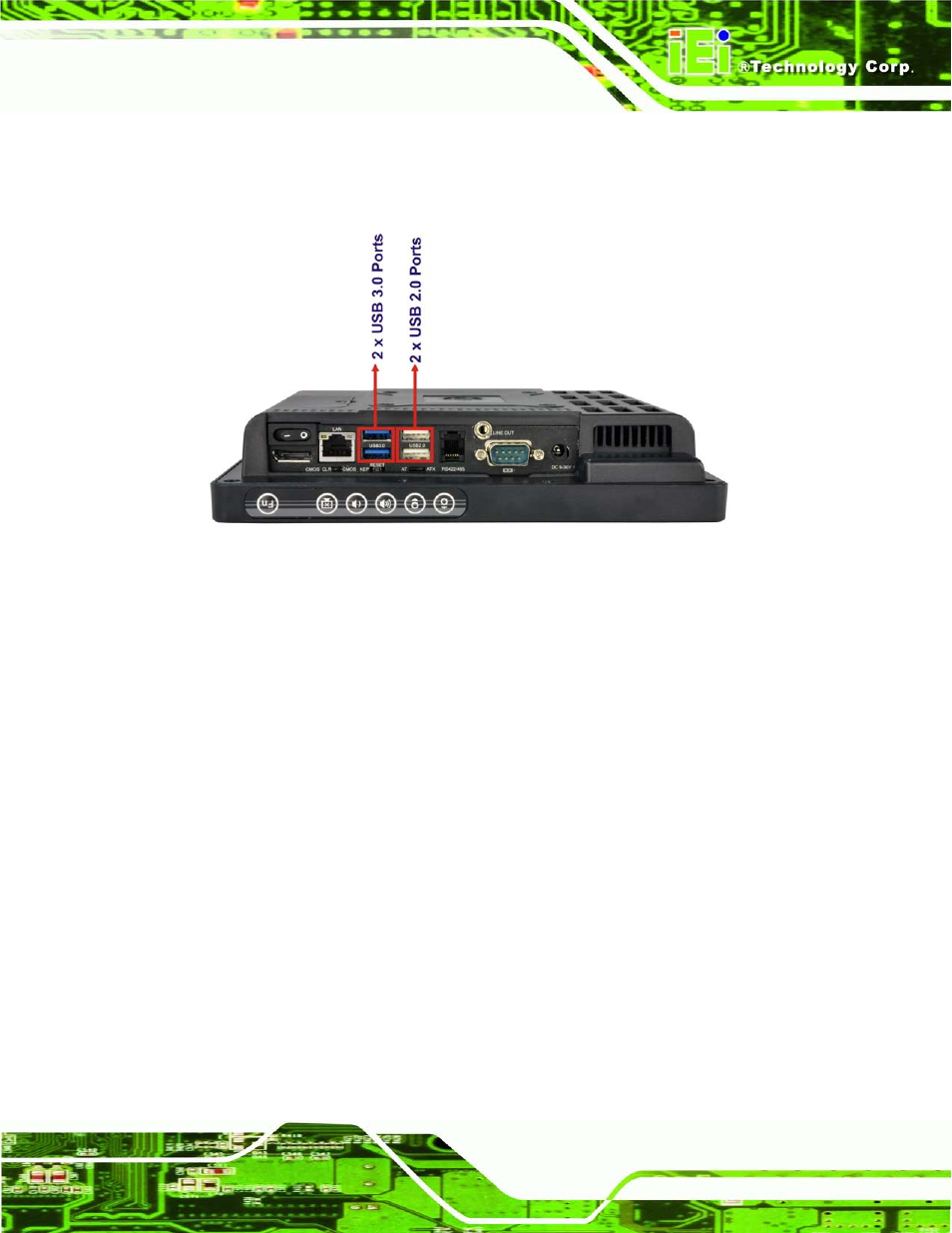

Figure 2-4: External USB Ports (Bottom Panel)

2.5 Au d io

2.5.1 Au d io Co d e c Co n tro lle r

The integrated HD Audio compliant audio controller on the Intel® NM10 chipset is

integrated to a Realtek ALC892 audio codec. The Realtek ALC892 is connected to one

external audio jack (Line out), which is then connected to compliant audio device. The

Realtek ALC892 is a 7.1+2 channel high definition audio codec with ten DAC channels. It

supports 7.1 sound playback and 2 channels of independent stereo sound output. The

audio jack is shown in Figure 2-5.
