Figure 6-5: chipset driver setup operations – IEI Integration IBX-530B-N270 User Manual
Page 99
IBX-530B-270 Embedded System
Page 87

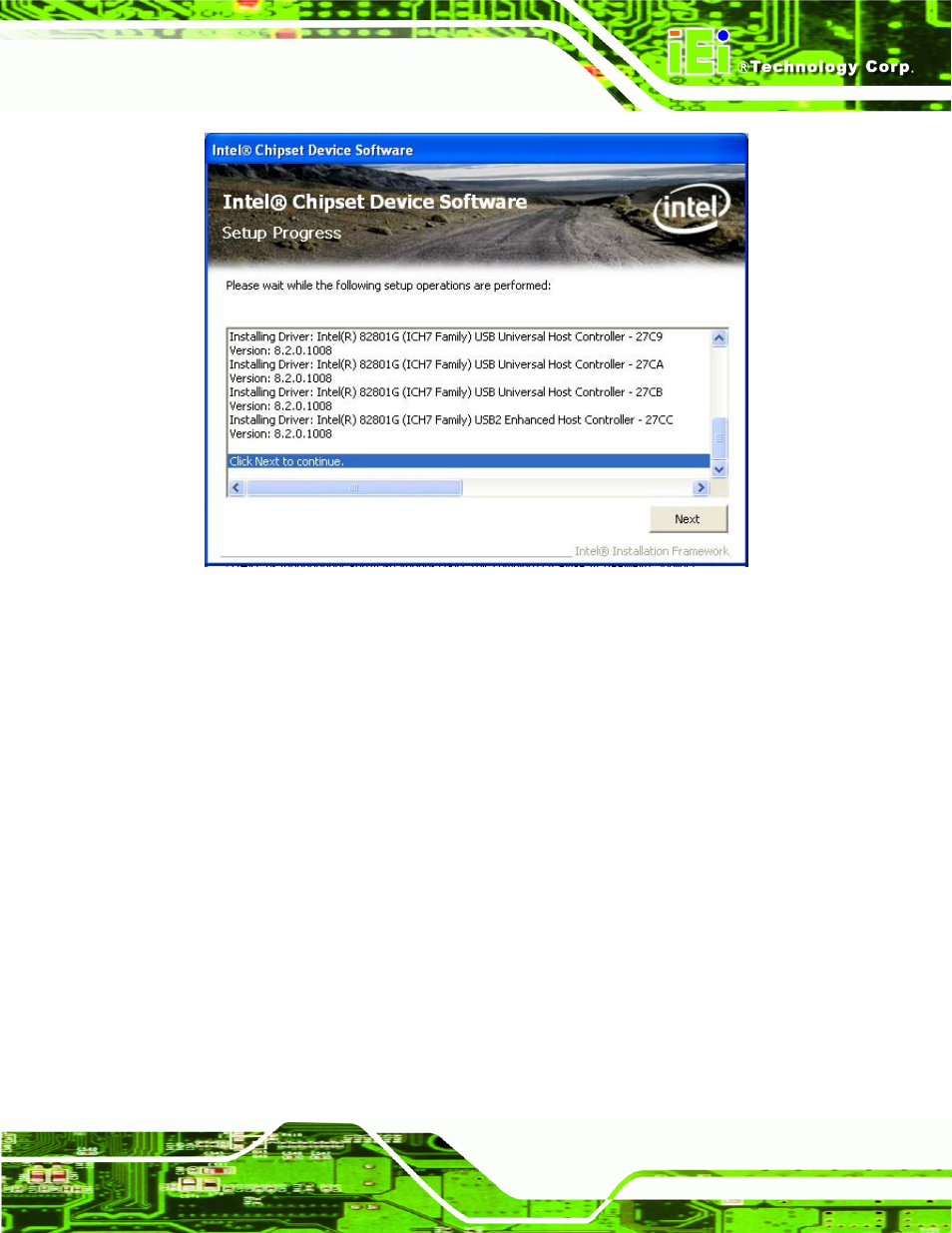

Figure 6-5: Chipset Driver Setup Operations
Step 12:
Once the Setup Operations are complete, click the Next icon to continue.
Step 13:
The Finish screen appears.
Step 14:
Select “Yes, I want to restart the computer now” and click the Finish icon.
See Figure 6-6.
