IBX-530B-270 Embedded System

Page 36

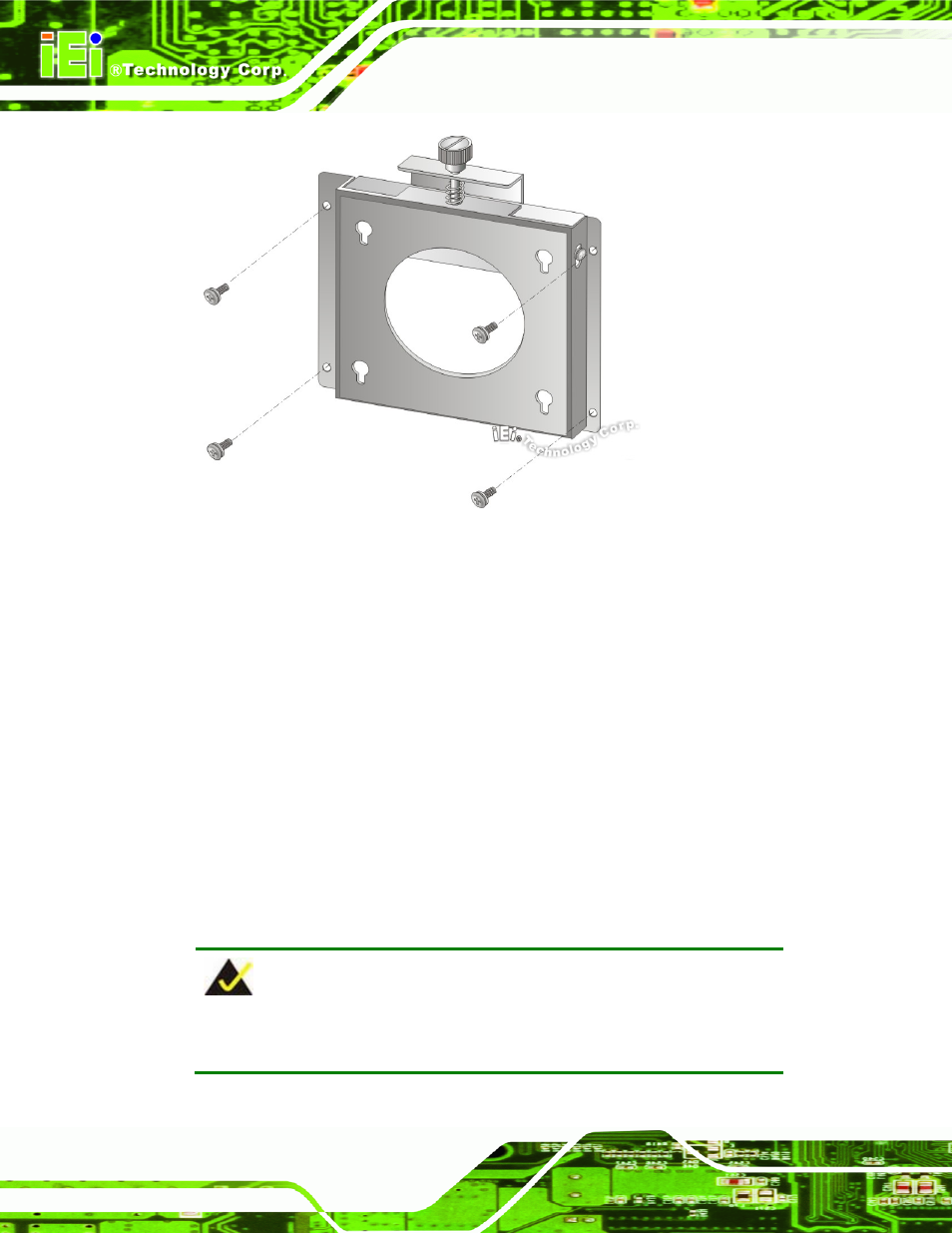

Figure 4-5: Wall-mounting Bracket

Step 6:

Insert the four monitor mounting screws provided in the wall mounting kit into the

four screw holes on the bottom panel of the system and tighten until the screw

shank is secured against the bottom panel (Figure 4-6).

Step 7:

Align the mounting screws on the IBX-530B-N270 bottom panel with the

mounting holes on the bracket.

Step 8:

Carefully insert the screws through the holes and gently pull the monitor

downwards until the IBX-530B-N270 rests securely in the slotted holes (Figure

). Ensure that all four of the mounting screws fit snuggly into their respective

slotted holes.

NOTE:

In the diagram below the bracket is already installed on the wall.
